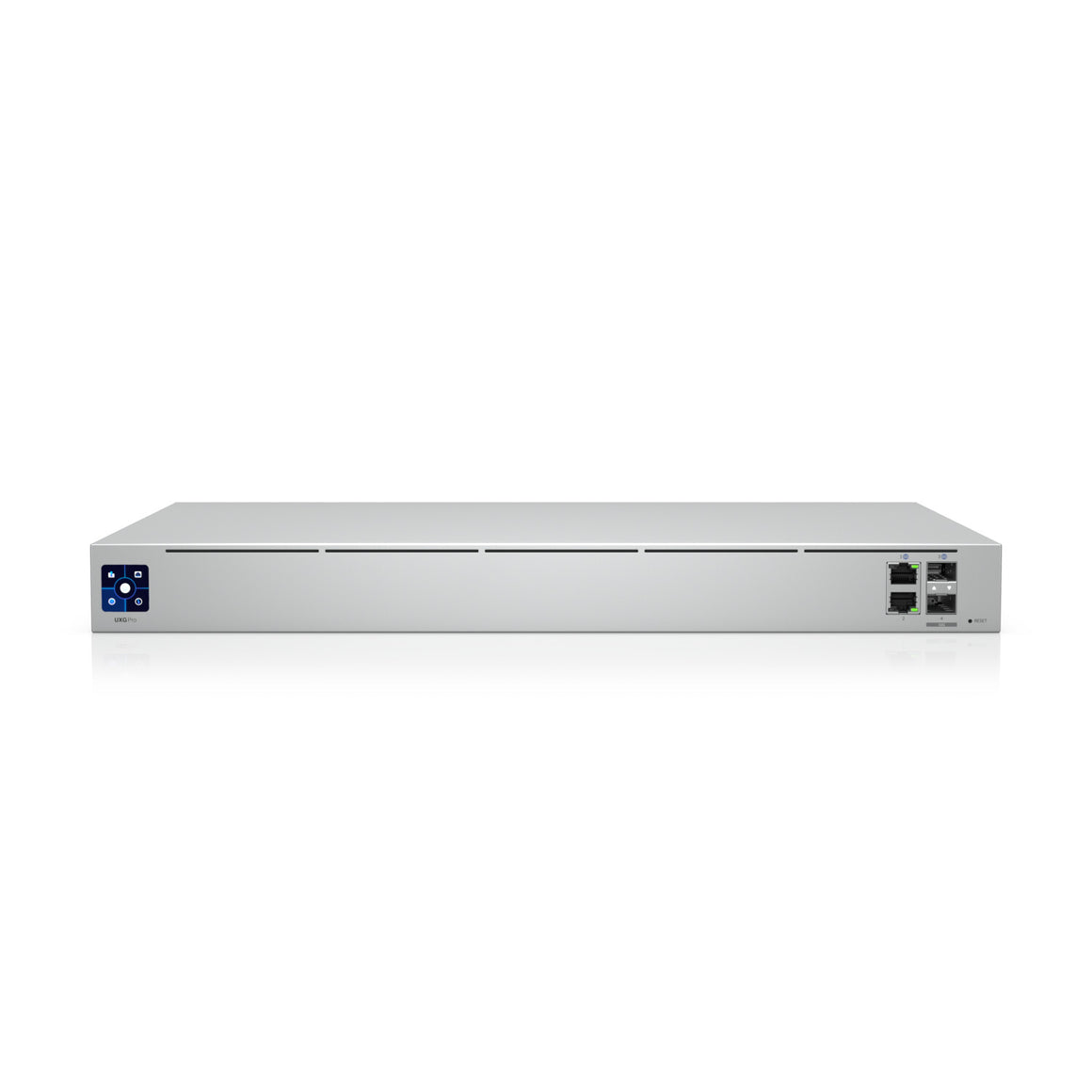

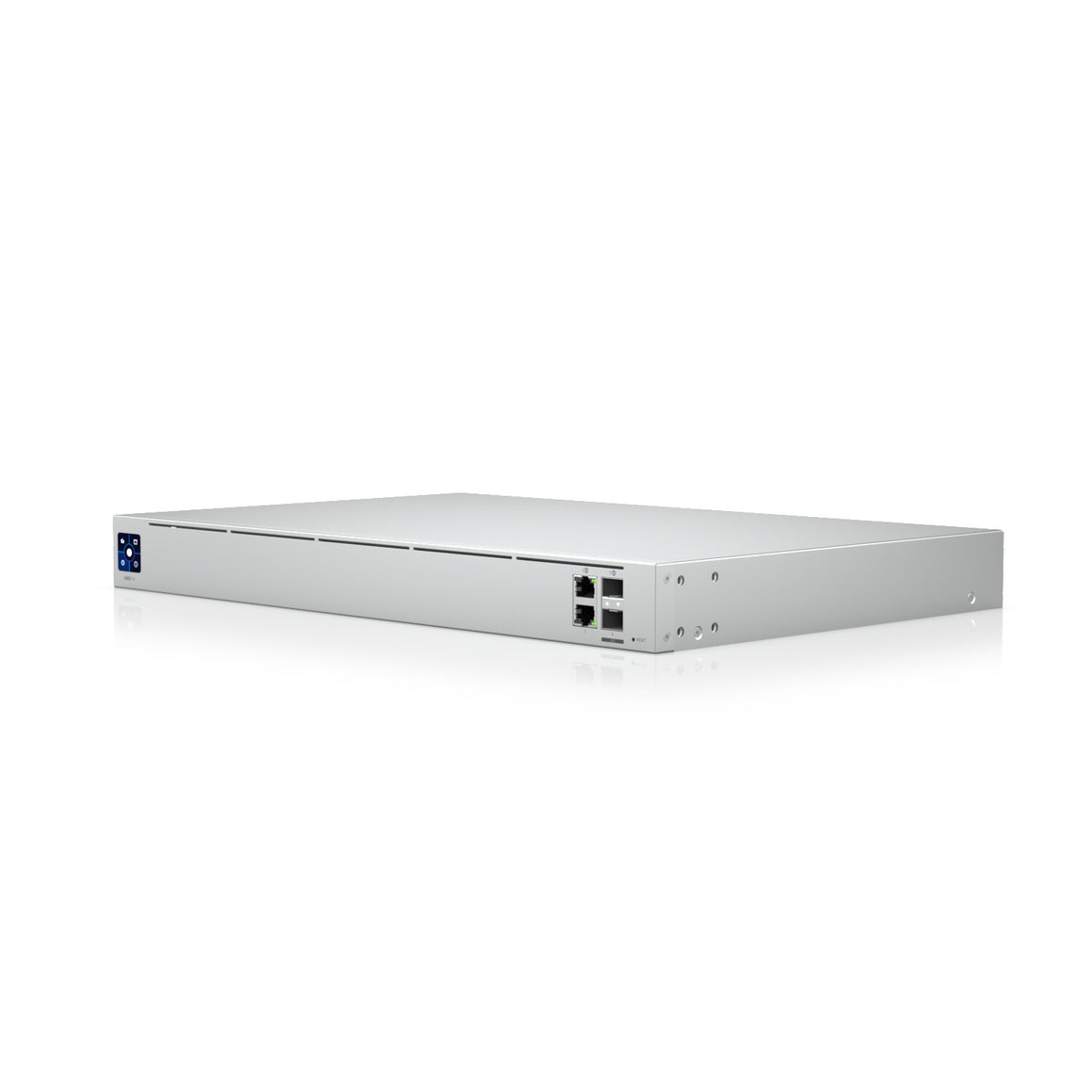

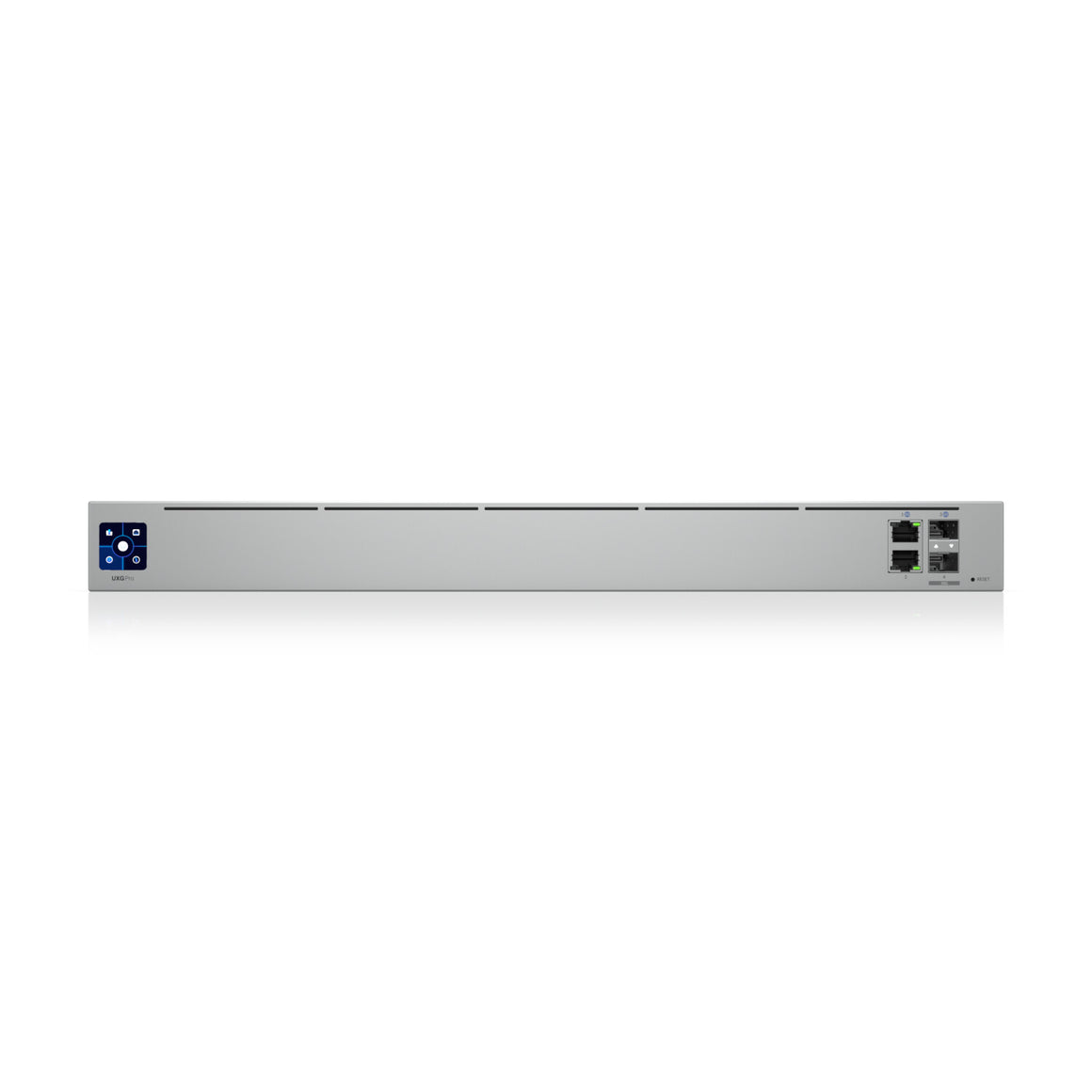

The UniFi Next-generation Gateway Pro (UXG Pro) is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks. The UXG Pro is equipped with (2) WAN ports (GbE RJ45 and 10G SFP+) that provide failover support, as well as (2) LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration. The UXG Pro can be paired with a Cloud Key Gen2 Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application (web/mobile).
| Design |
|---|
| LED indicators |
LAN, Power |
| Mounting type |
Rack mounting |
| Enclosure material |
Aluminum |
| Rack capacity |
1U |
| Performance |
|---|
| Internal memory |
2048 MB |
| Number of processors installed |
1 |
| Processor frequency |
1700 MHz |
| Built-in processor |
Yes |
| Control display unit |
Yes |
| Network |
|---|
| Ethernet LAN data rates |
1000 Mbit/s |
| Ports & interfaces |
|---|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
2 |
| Management features |
|---|
| Reset button |
Yes |
| Power |
|---|
| Power supply |
50 W |
| Input frequency |
50 - 60 Hz |
| Input voltage |
200 - 240 V |
| Weight & dimensions |
|---|
| Weight |
3.42 kg |
| Width |
442.4 mm |
| Depth |
285.6 mm |
| Height |
43.7 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 40 °C |
| Display |
|---|
| Touchscreen |
Yes |
| Display diagonal |
3.3 cm (1.3") |
| Certificates |
|---|
| Compliance certificates |
CE |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
