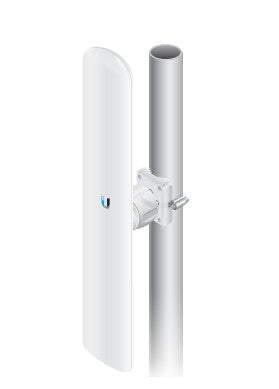

2x2 MIMO airMAX ac Sector AP
The LiteAP ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.
airMAX ac Sector Coverage
The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.
GPS Synchronization
LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Now with airOS8
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Lightweight and Sleek Design
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.
Installation Flexibility
Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
| Performance |
|---|
| Internal memory |
64 MB |
| Processor model |
Atheros MIPS 74Kc |
| Processor frequency |
533 MHz |
| Built-in processor |
Yes |
| Bandwidth note |
5150 - 5875 MHz |
| Cabling technology |
10/100/1000Base-T(X) |
| Frequency band |
5 GHz |
| Antenna gain level (max) |
16 dBi |
| Features |
|---|
| Mounting |
Pole |
| Product colour |
White |
| Antenna type |
MIMO directional antenna |
| Power |
|---|
| Power consumption (max) |
7 W |
| Power source type |
PoE |
| Certificates |
|---|
| Certification |
FCC, IC, CE |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
420 g |
| Height |
452.3 mm |
| Depth |
54.4 mm |
| Width |
78.7 mm |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Quick installation guide |
Yes |
| Cables included |
AC |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85177100 |
