SKU: U-POE

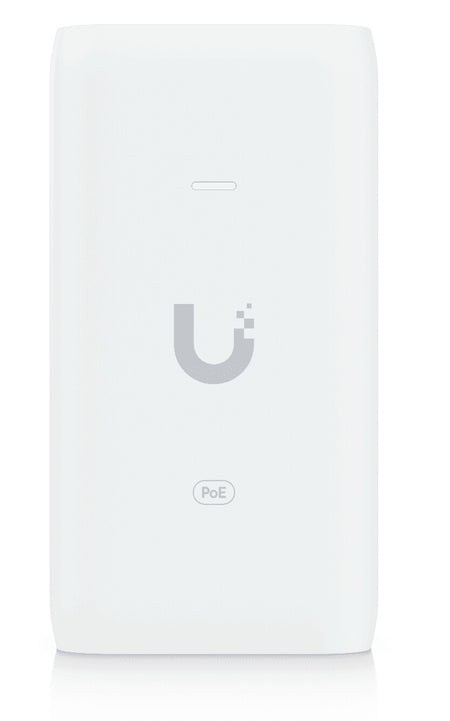

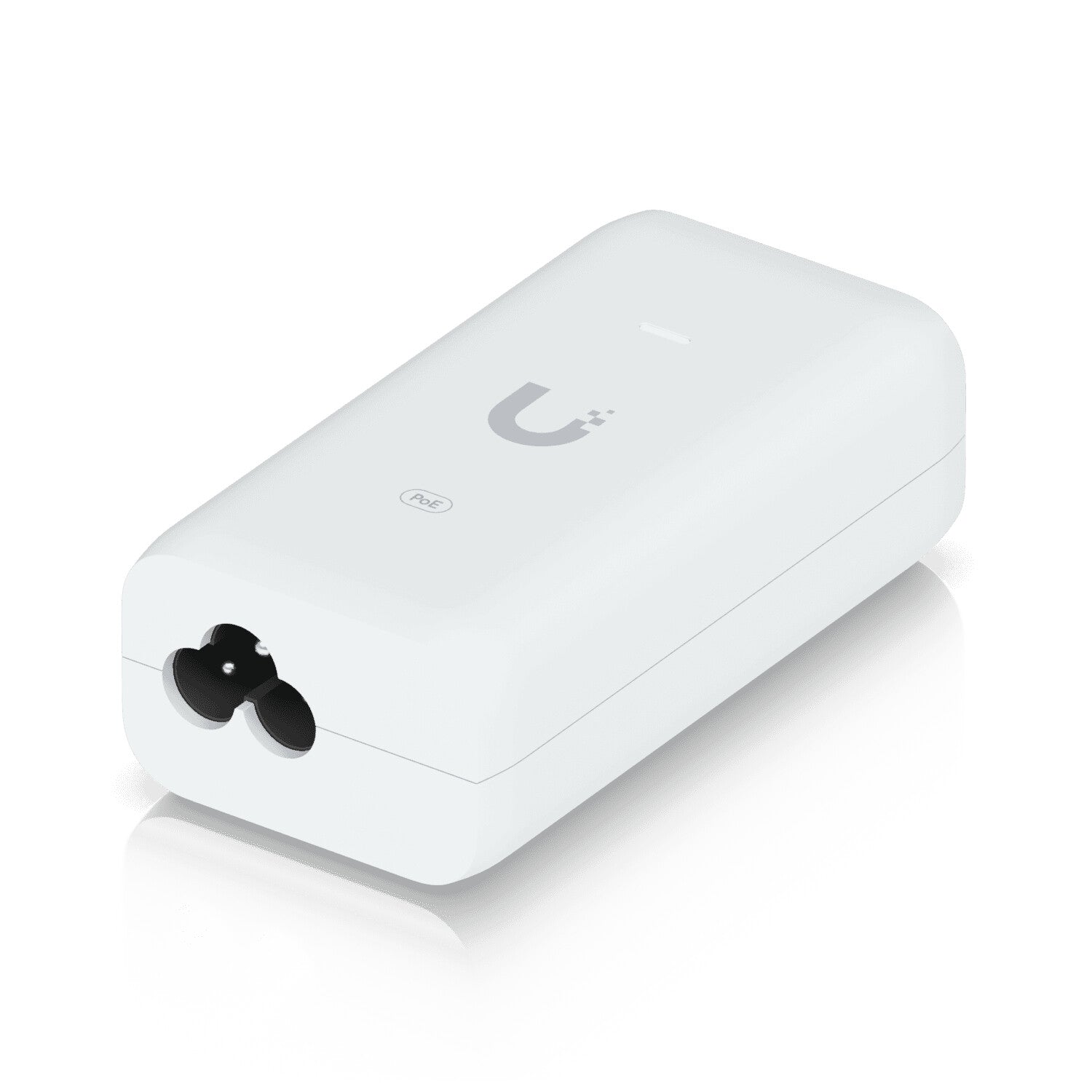

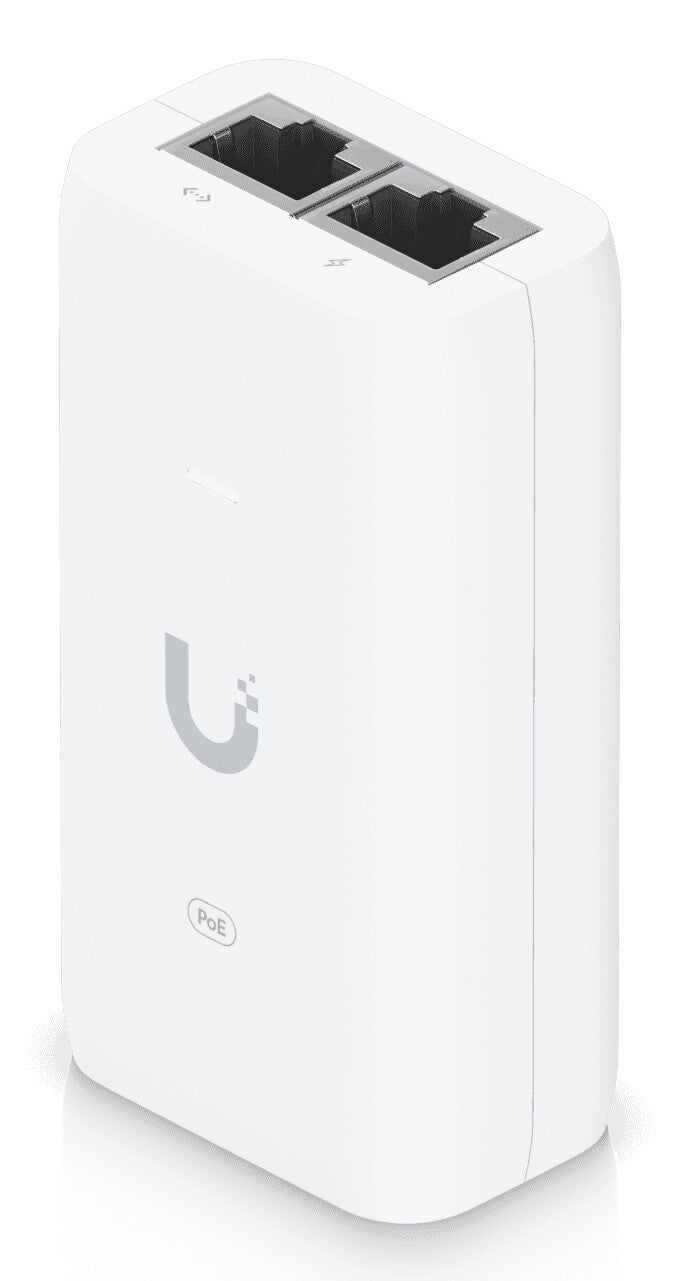

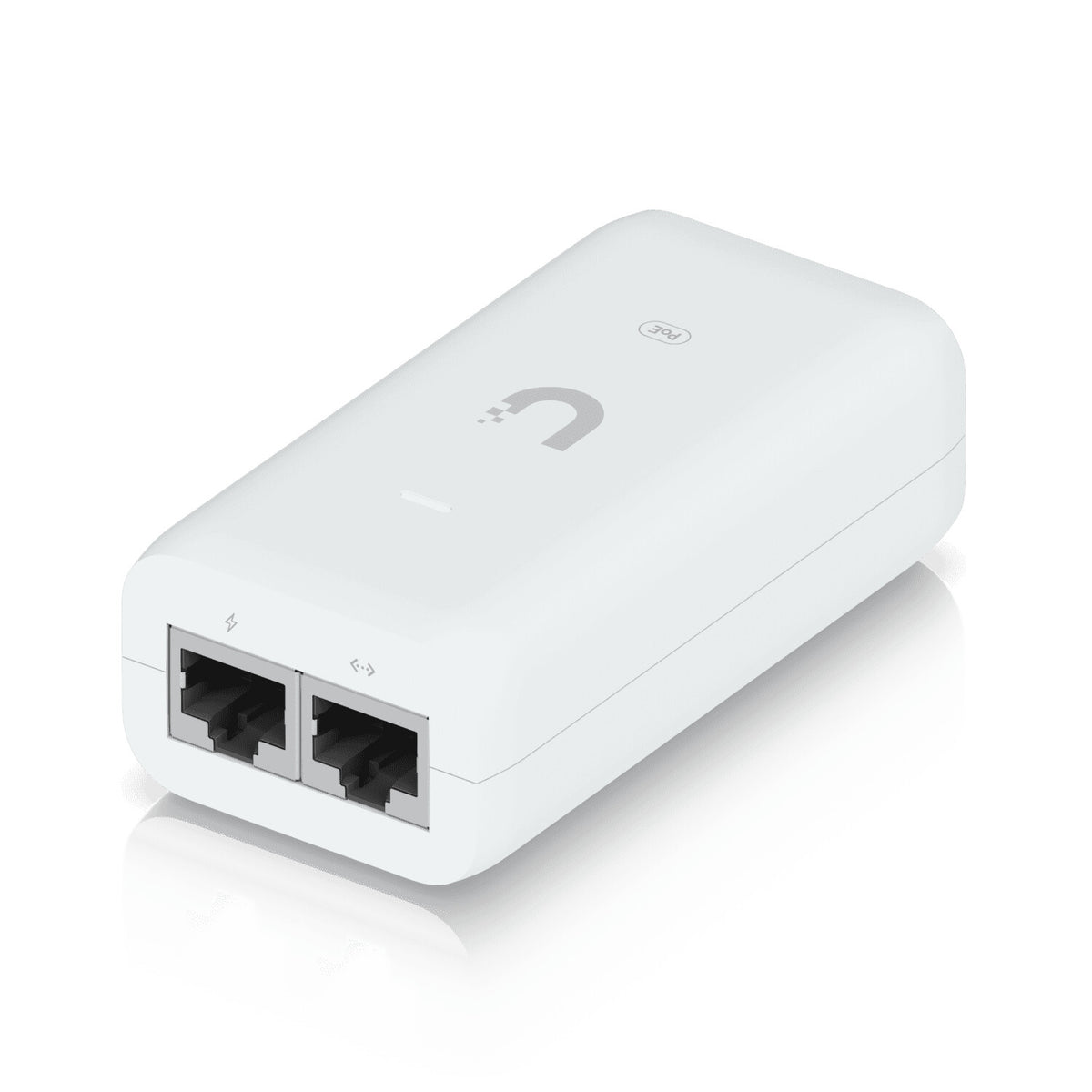

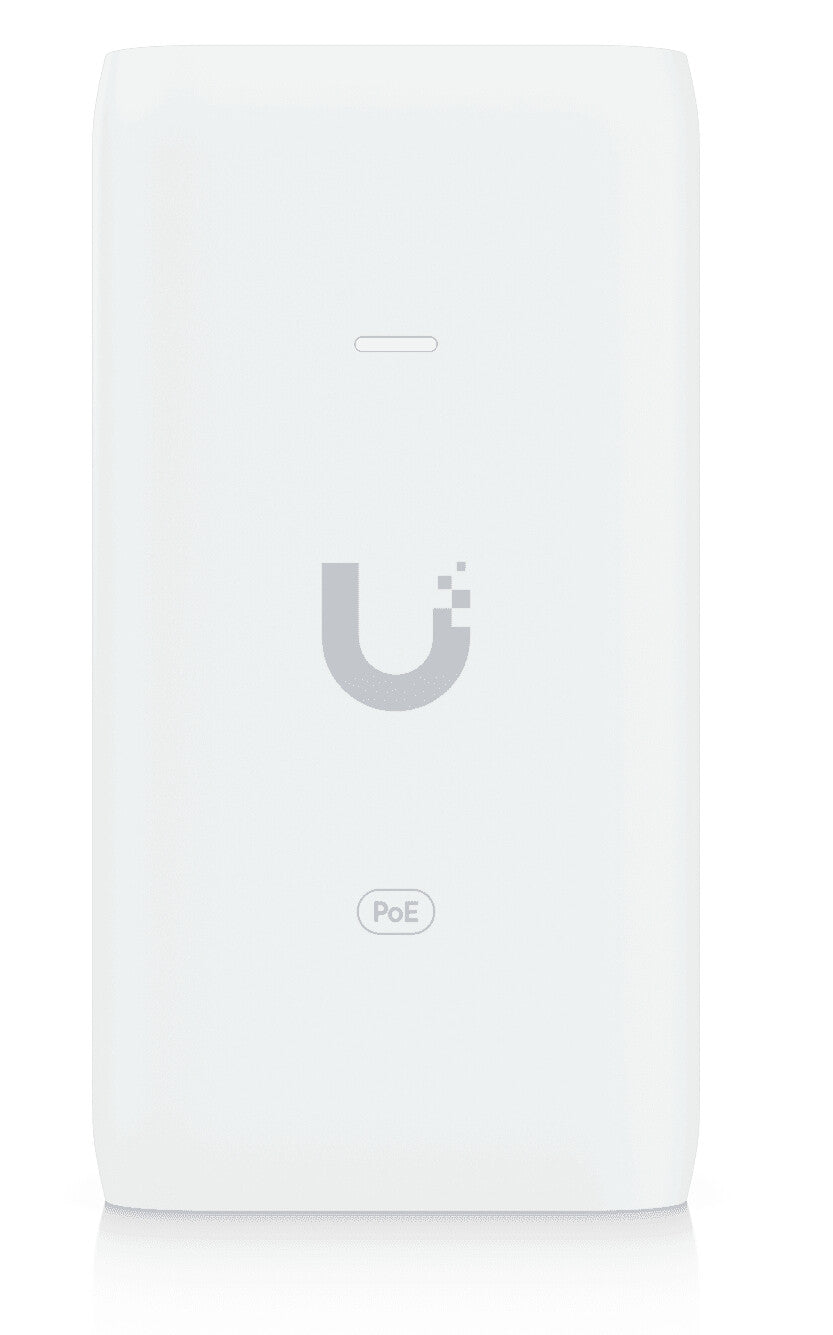

Ubiquiti U-POE PoE adapter Gigabit Ethernet 48 V

Ubiquiti Networks
£18.82
iFrame
  • Delivers up to 15W of PoE
  • Surge, peak pulse, and overcurrent protection

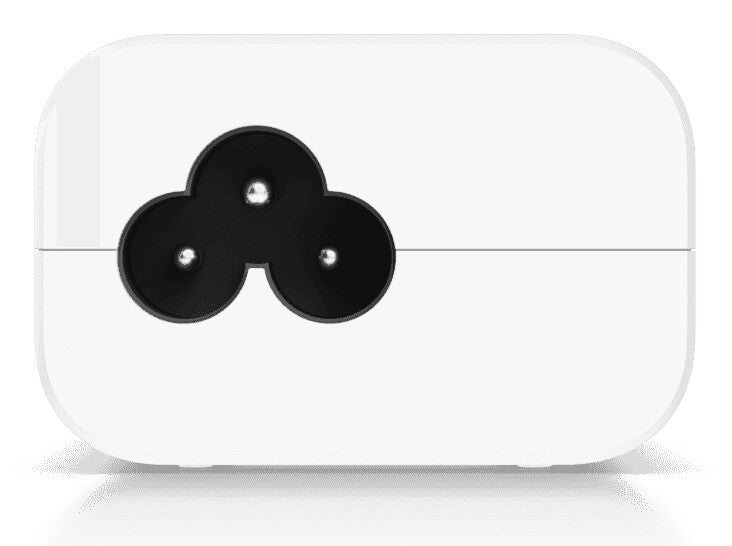

  • Contains RJ45 data input, AC cable with earth ground, and PoE output
  • LED indicator for status monitoring

An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

Network
Power over Ethernet (PoE) type supported Active PoE
Power over Ethernet (PoE) Yes
Ethernet interface type Gigabit Ethernet
Features
LED indicators Status
Surge protection Yes
Easy to install Yes
Product colour White
Ports & interfaces
RJ-45 input ports 2
Power
Response time 1 ns
Load regulation 5%
Line regulation 3%
Switching frequency 65 kHz
Efficiency 84.25%
Inrush current 100 A
Input current 0.5 A
AC adapter frequency 50/60 Hz
AC adapter input voltage 100 - 240 V
Output power 15 W
Power over Ethernet (PoE) voltage 48 V
Certificates
Compliance certificates CE, UL
Operational conditions
Storage temperature (T-T) -30 - 70 °C
Operating relative humidity (H-H) 10 - 95%
Operating temperature (T-T) -30 - 70 °F
Weight & dimensions
Weight 100 g
Height 33 mm
Depth 46 mm
Width 86 mm
