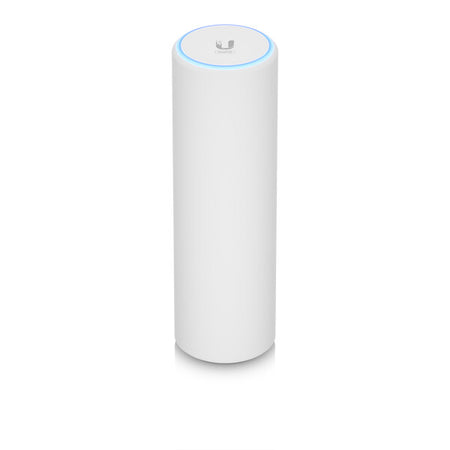

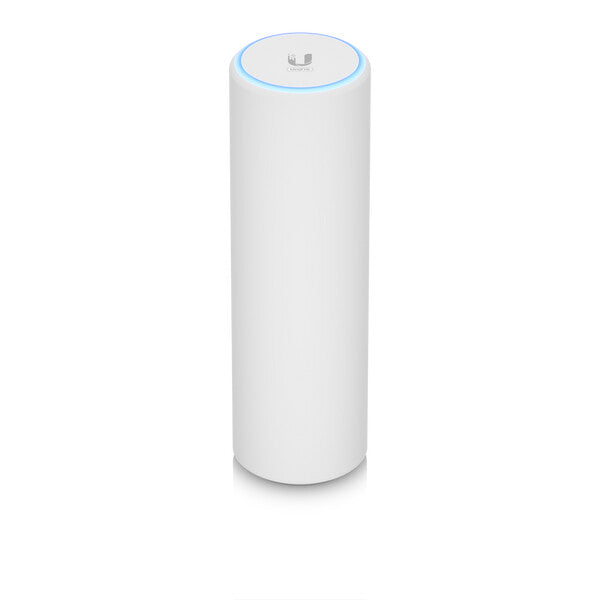

Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
| Features |
| Quality of Service (QoS) support |
Yes |
| VLAN support |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Bluetooth |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af |
| Frequency band |
2.4 - 5 GHz |
| Ethernet LAN data rates |
1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
573.5 Mbit/s |
| Maximum data transfer rate |
4800 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
| Security algorithms |
WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (max) |
11.4 W |
| Input current |
0.32 A |
| AC input voltage |
44 - 57 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| LED indicators |
Yes |
| Reset button |
Yes |
| International Protection (IP) code |
IPX5 |
| Housing material |
Aluminium, Plastic |
| Product colour |
White |
| Placement |
Ceiling, Pole, Table, Wall |
| Antenna |
| Antenna gain level (max) |
5 dBi |
| Antenna type |
Internal |
| Weight & dimensions |
| Weight |
400 g |
| Height |
159.5 mm |
| Depth |
48.5 mm |
| Width |
48.5 mm |
| Packaging content |
| PoE adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Operating temperature (T-T) |
-30 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
