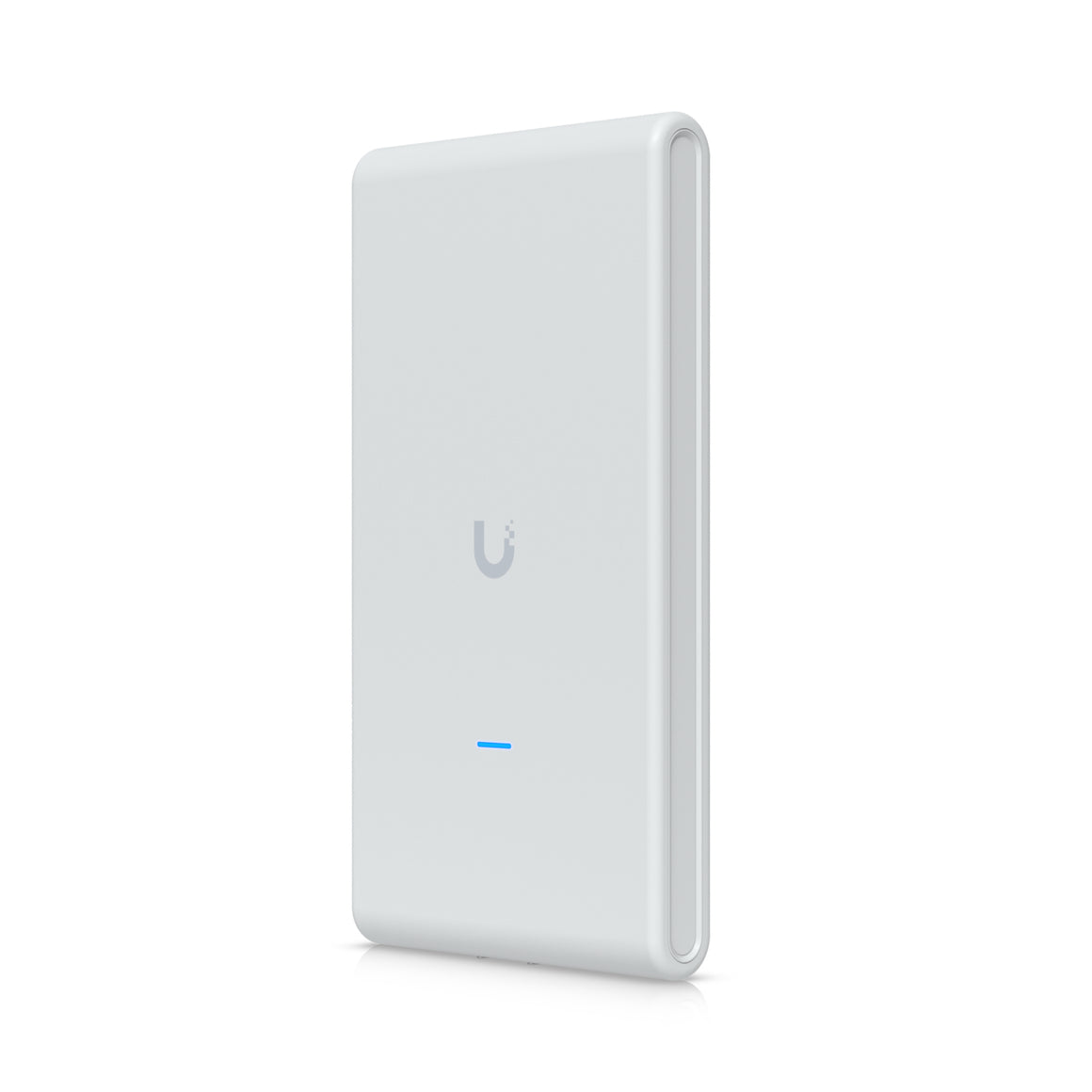

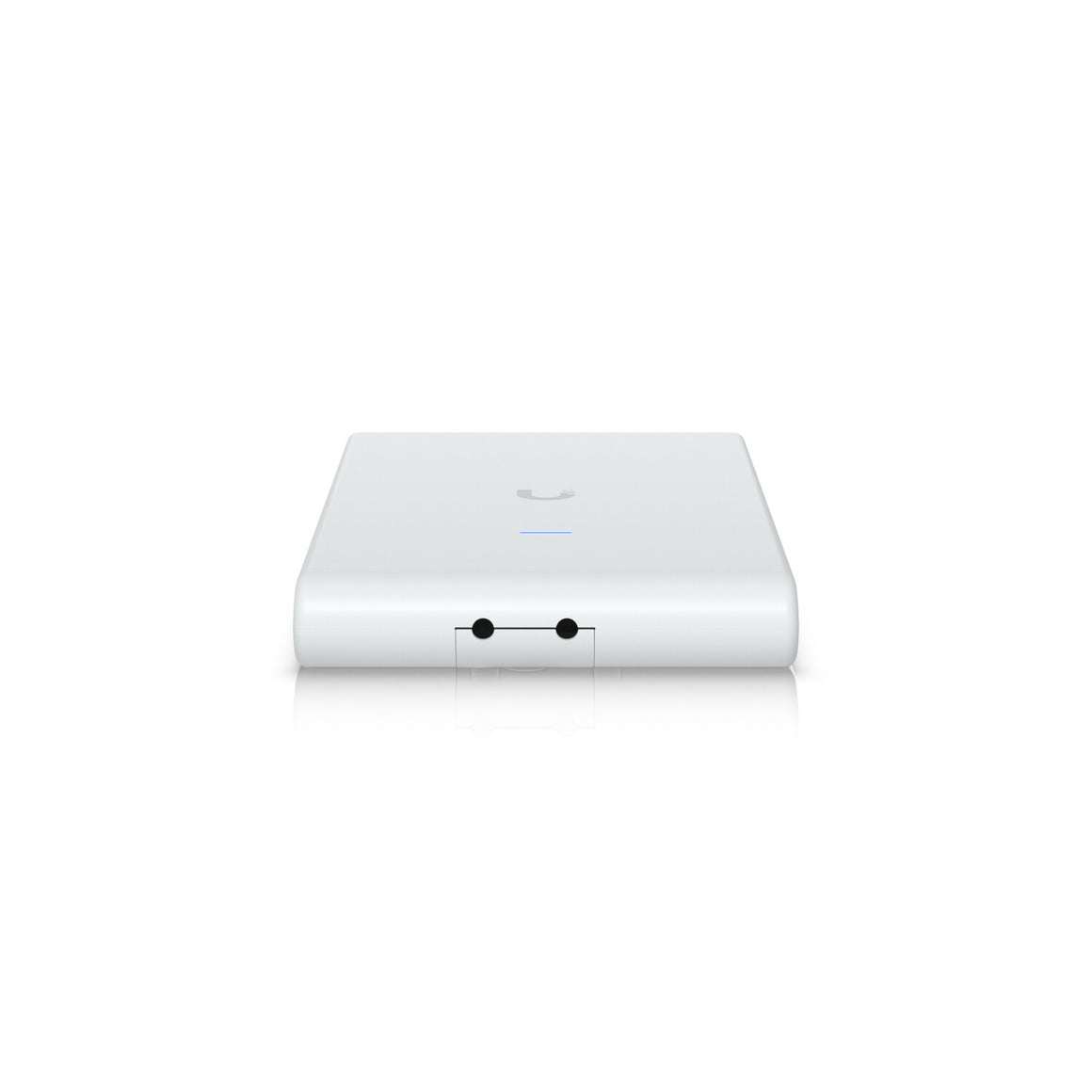

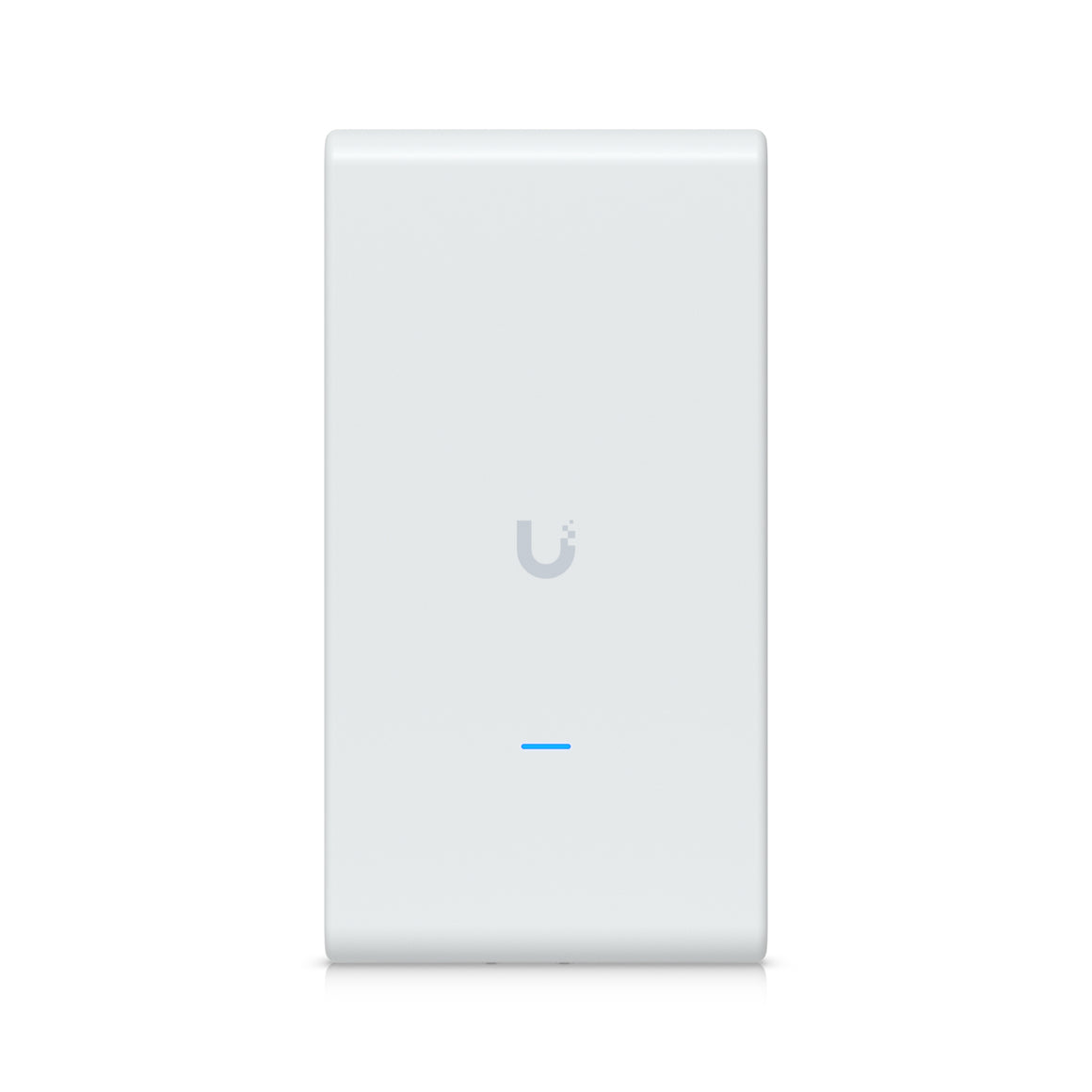

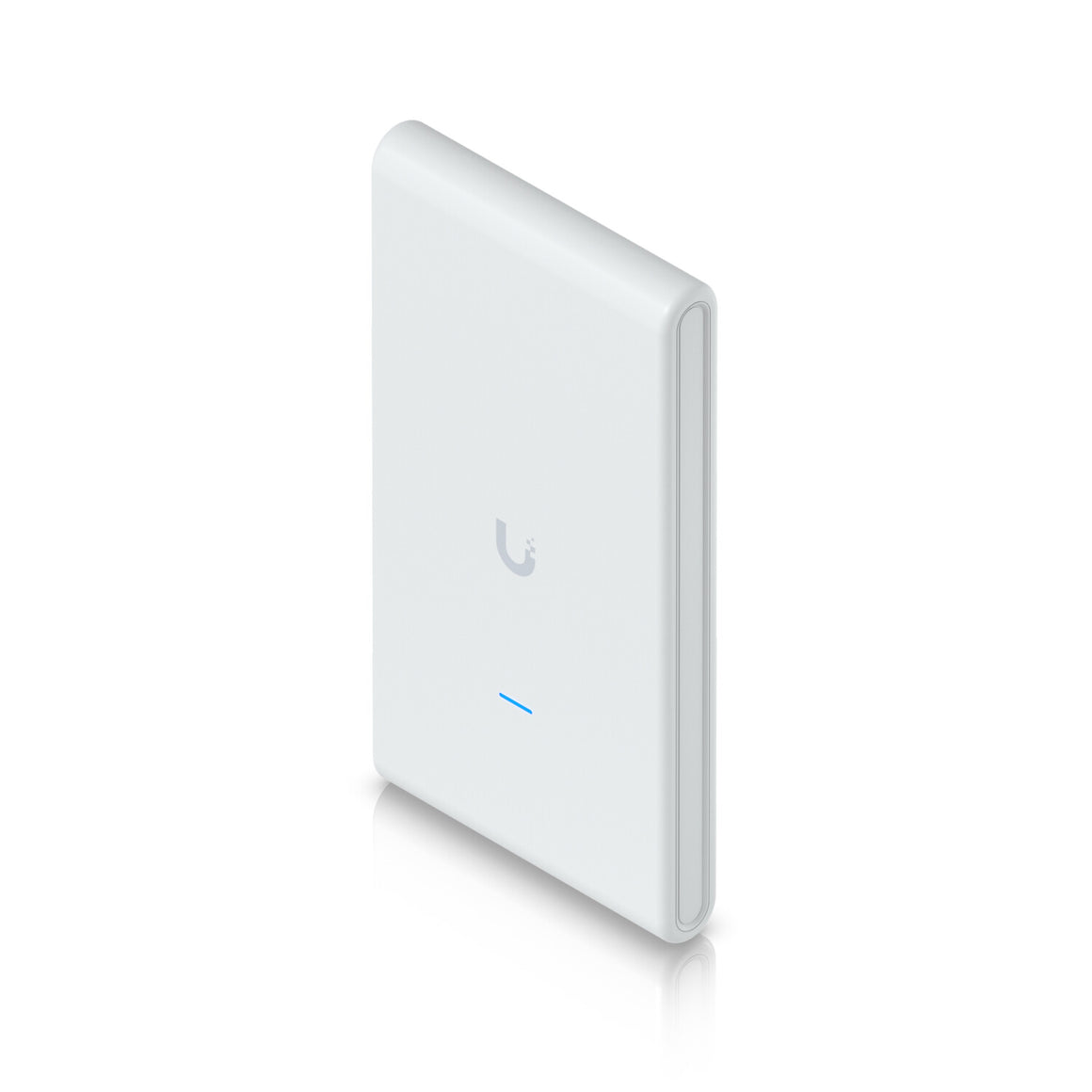

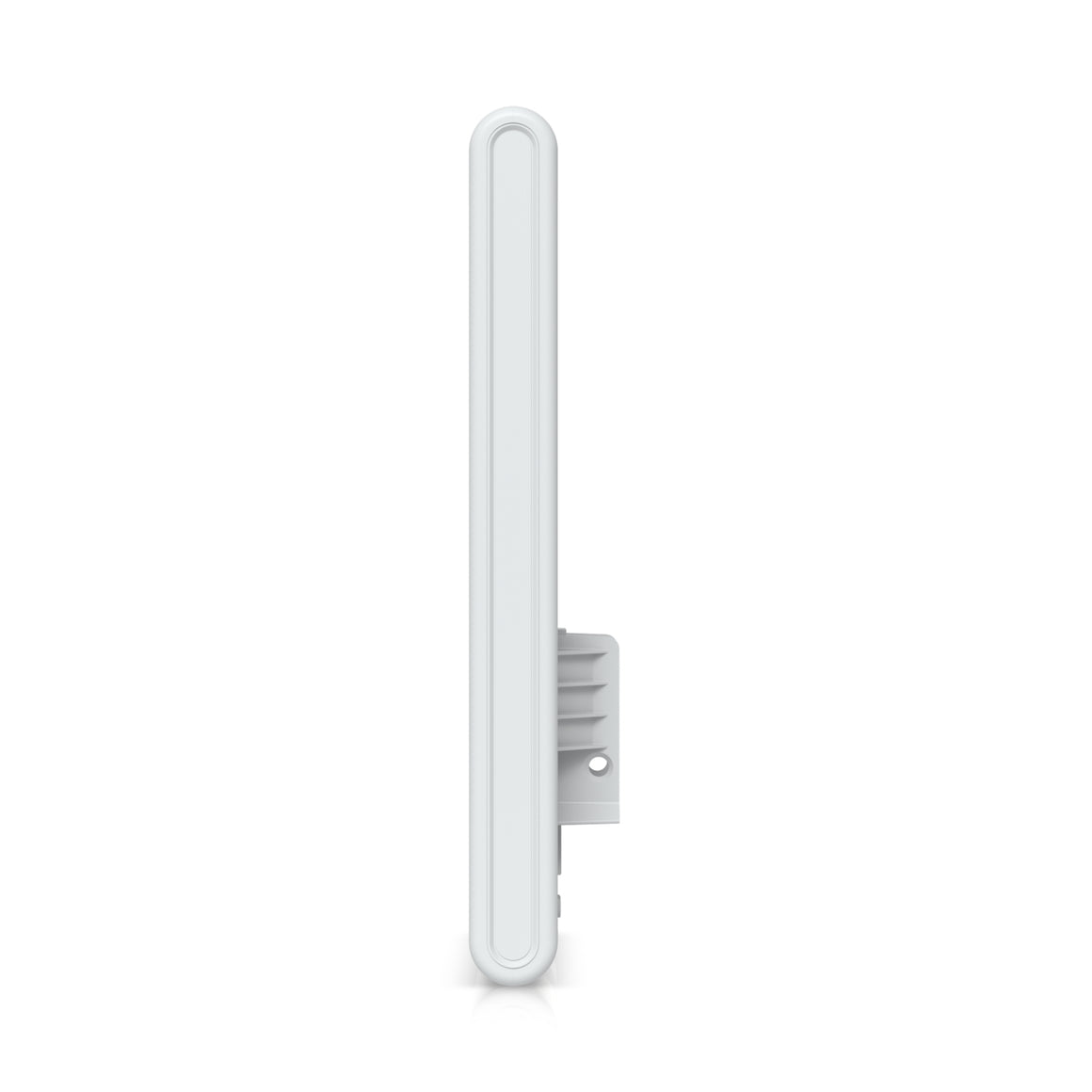

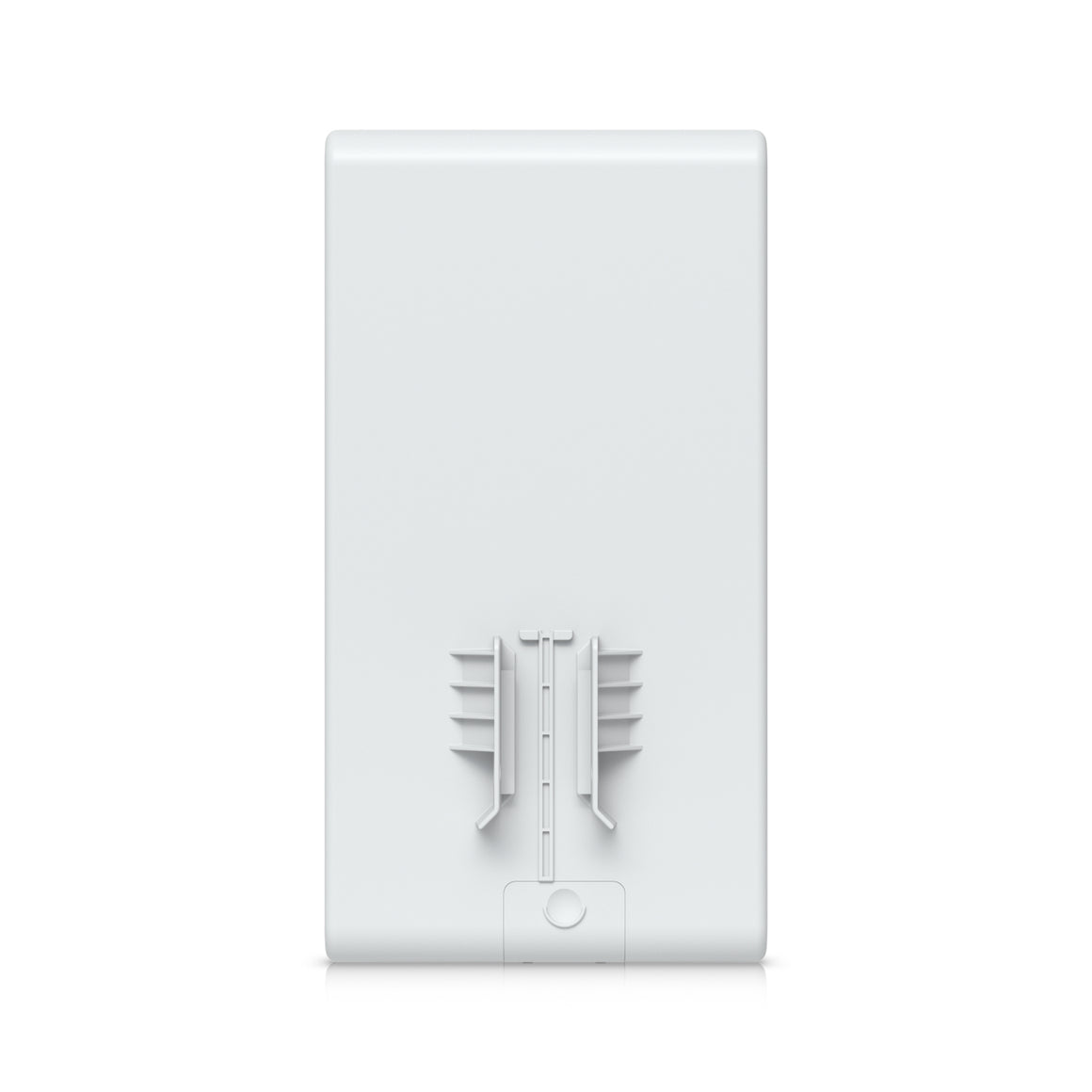

Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
| Features |
|---|
| Quality of Service (QoS) support |
Yes |
| VLAN support |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q |
| Frequency band |
2.4 - 5 GHz |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
573.5 Mbit/s |
| Maximum data transfer rate |
2400 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces |
|---|

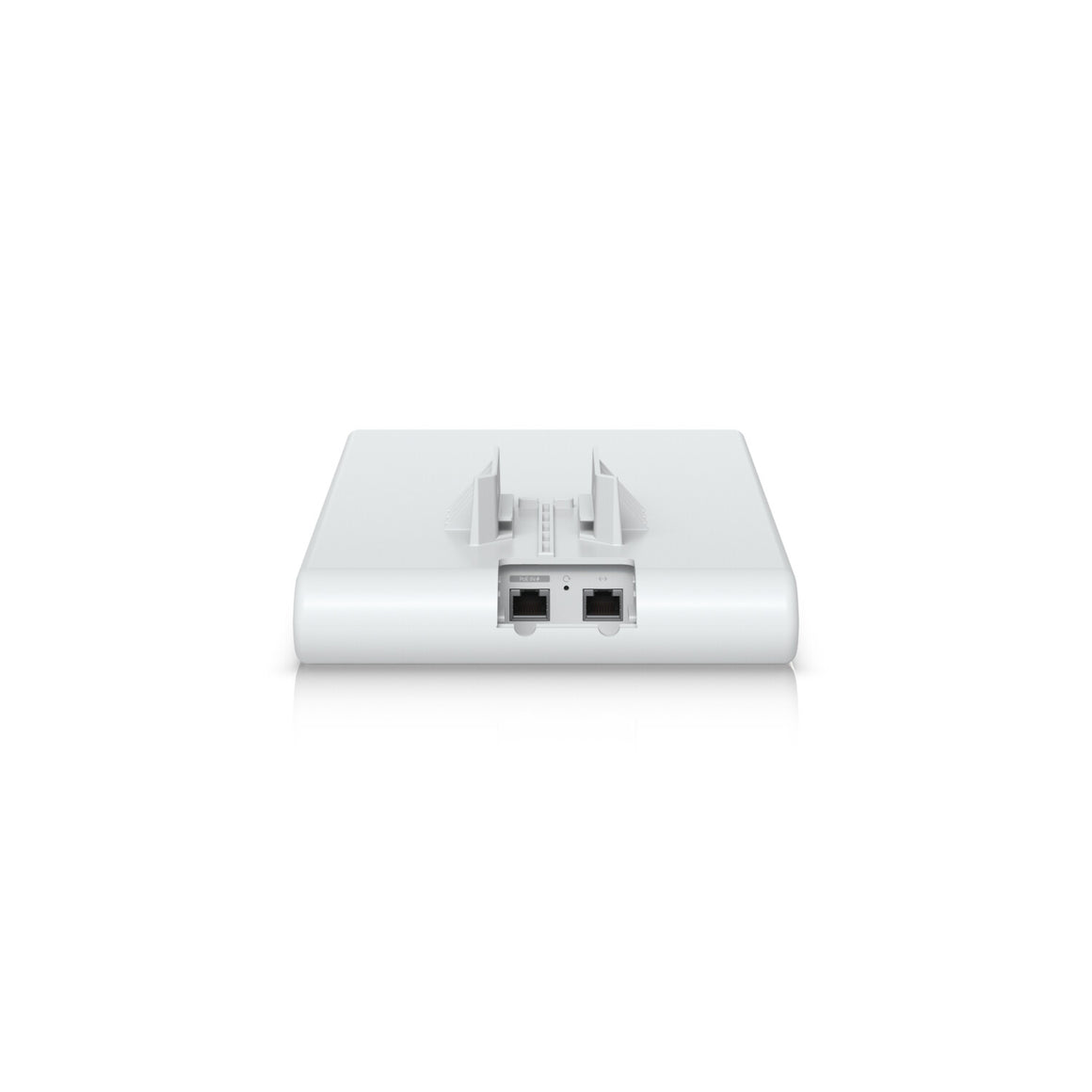

| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power consumption (max) |
9 W |
| DC voltage range |
42.5 - 57 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Recommended usage |
Indoor/outdoor |
| LED indicators |
Yes |
| Reset button |
Yes |
| International Protection (IP) code |
IPX6 |
| Housing material |
Polycarbonate (PC) |
| Product colour |
White |

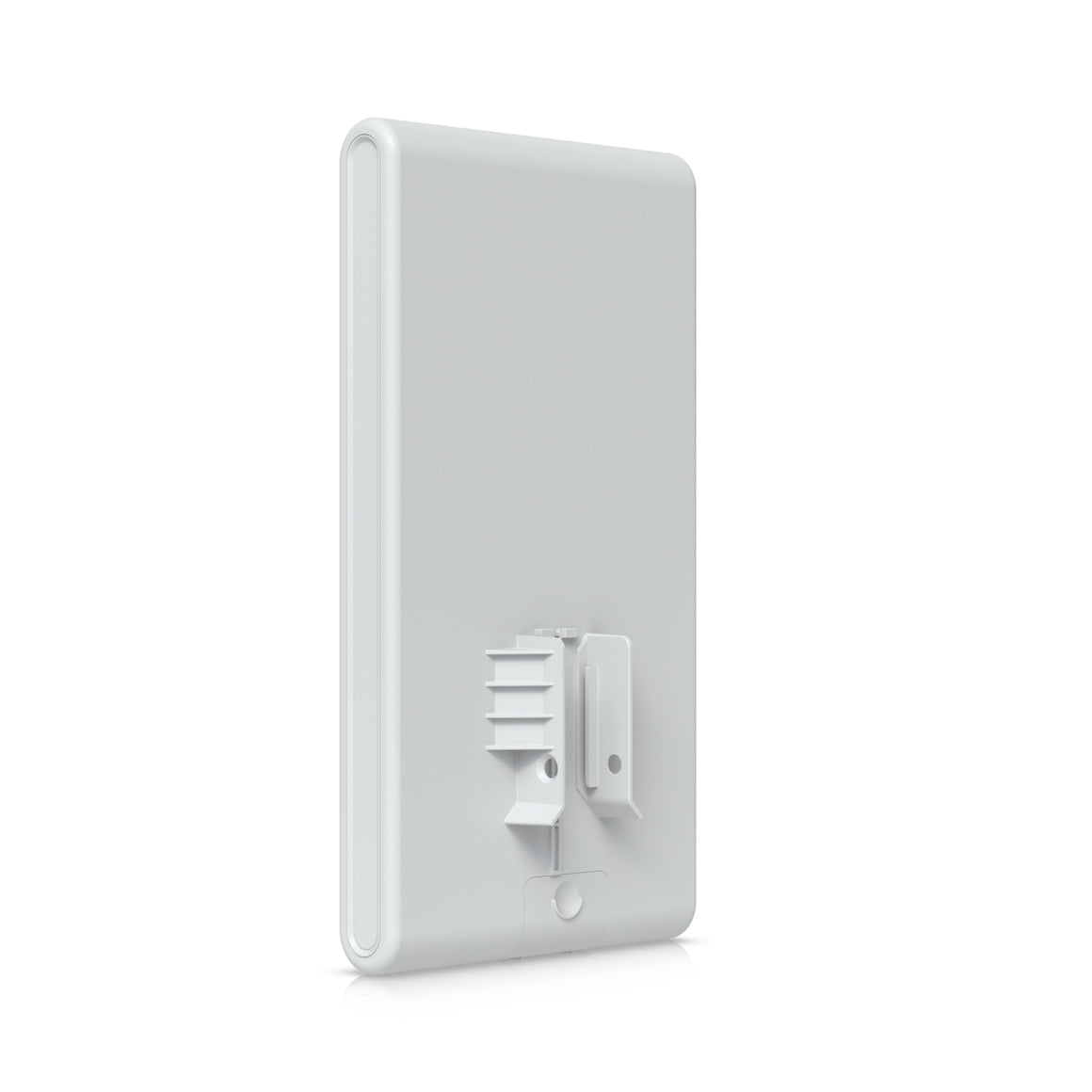

| Placement |
Pole, Wall |
| Antenna |
|---|
| Antenna gain level (max) |
8 dBi |
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal |
| Weight & dimensions |
|---|
| Weight |
819 g |
| Height |
343.2 mm |
| Depth |
60.2 mm |
| Width |
181.2 mm |

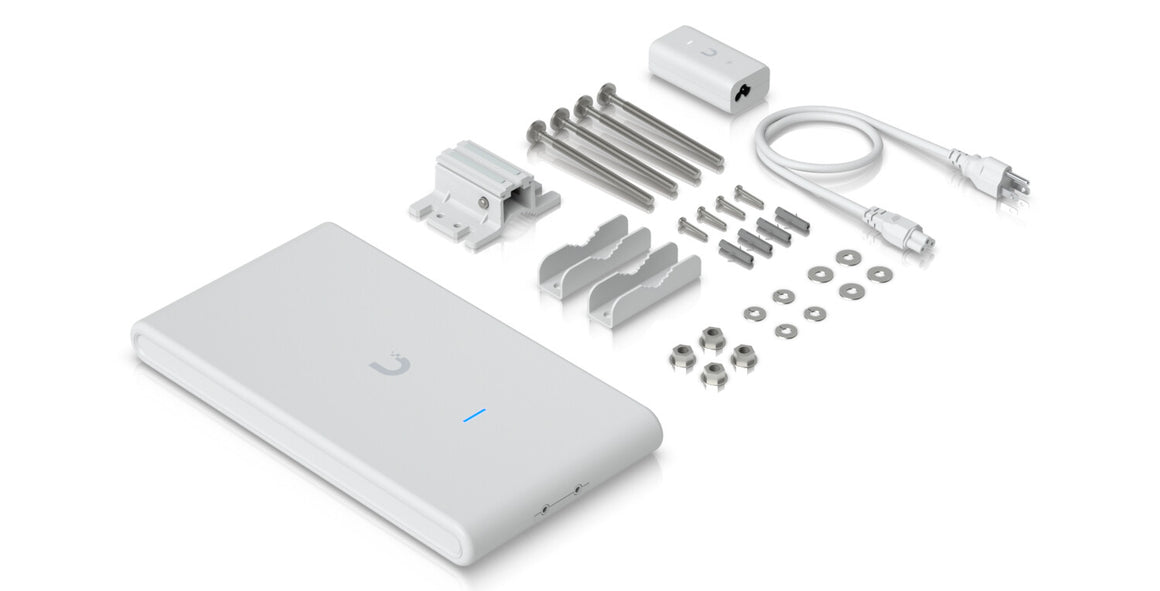

| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| PoE adapter included |
Yes |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
