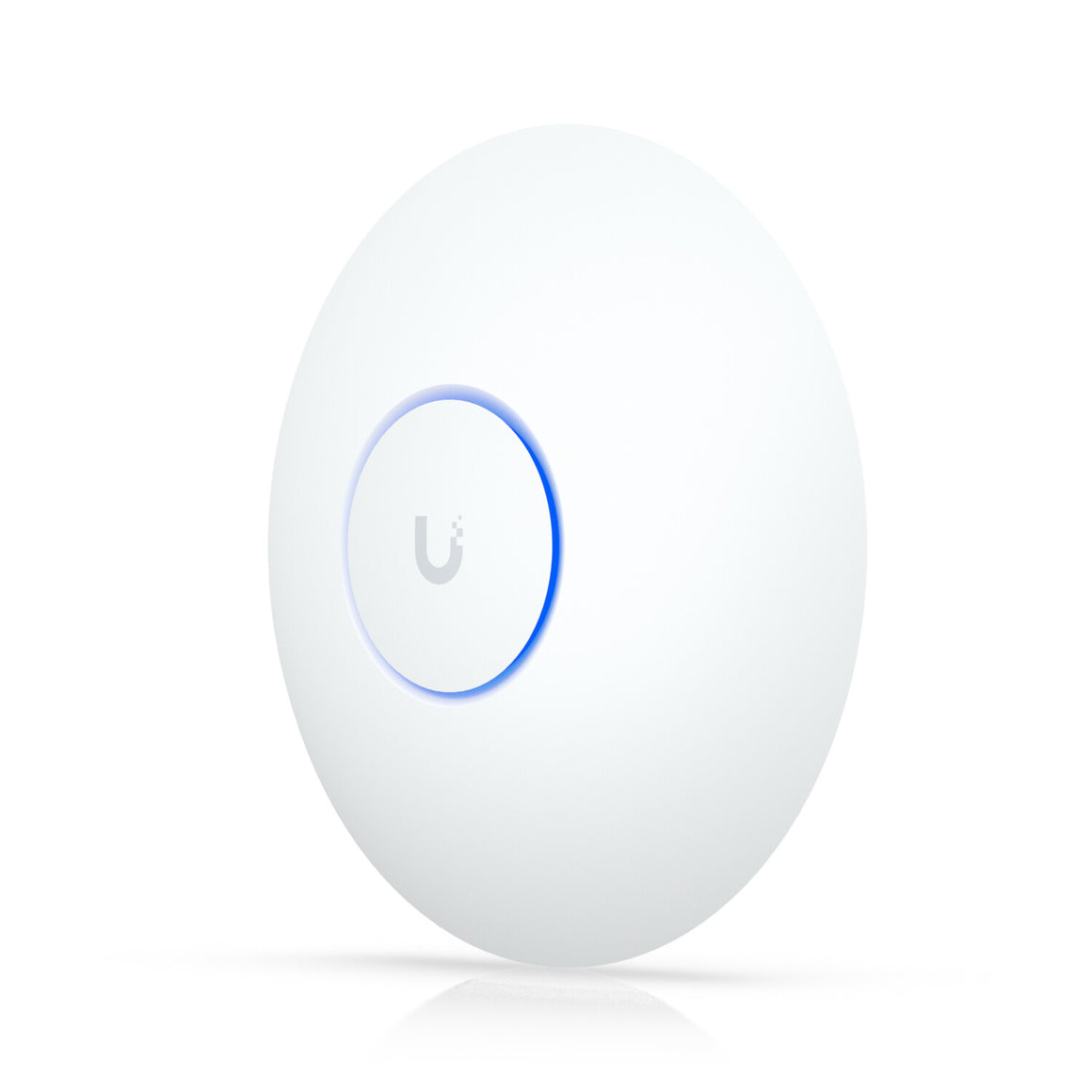

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.
| Features |
|---|
| Maximum Tx power (5 GHz) |
27 dBmW |
| Maximum Tx power (2.4 GHz) |
26 dBmW |
| Band steering |
Yes |
| Wireless meshing |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| Fast roaming |
Yes |
| Fit AP mode features |
Hotspot 2.0 |
| MIMO type |
Multi User MIMO |
| Spatial streams |
5 |
| MIMO |
Yes |
| Number of users |
300 user(s) |
| Coverage area |
160 m² |
| Networking standards |
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Frequency band |
2.4 - 5 GHz |
| Ethernet LAN data rates |
1000,2500 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate |
7300 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Security algorithms |
PPSK, TLS |
| Management features |
|---|
| Access point management |
Wi-Fi schedule |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
14 W |
| DC voltage range |
42.5 - 57 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Reset button |
Yes |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
|---|
| Antenna gain level (max) |
6 dBi |
| Antenna type |
Internal |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Weight & dimensions |
|---|
| Weight |
448 g |
| Height |
43 mm |
| Depth |
175.7 mm |
| Width |
175.7 mm |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
