Scalable Enterprise Wi-Fi Management
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
Save money and save time
Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
Powerful Hardware
The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.
Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.
Expandable
Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.

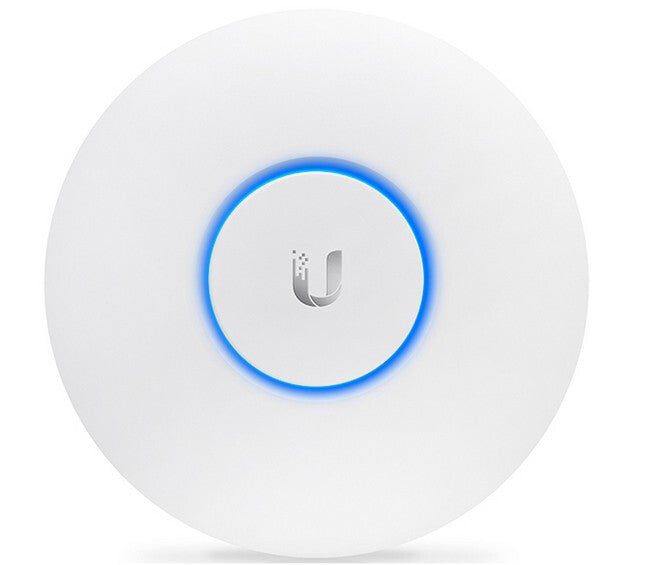

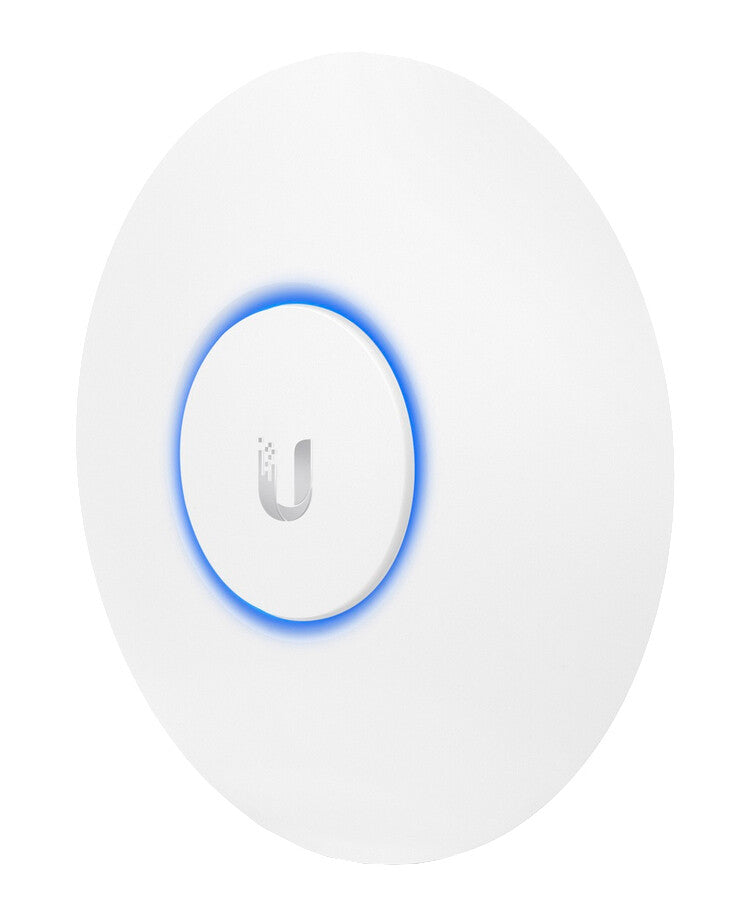

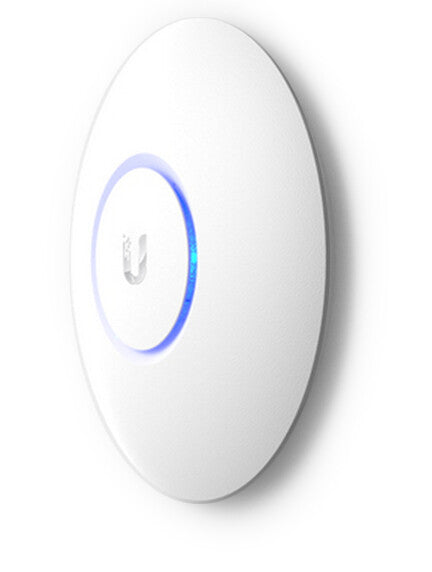

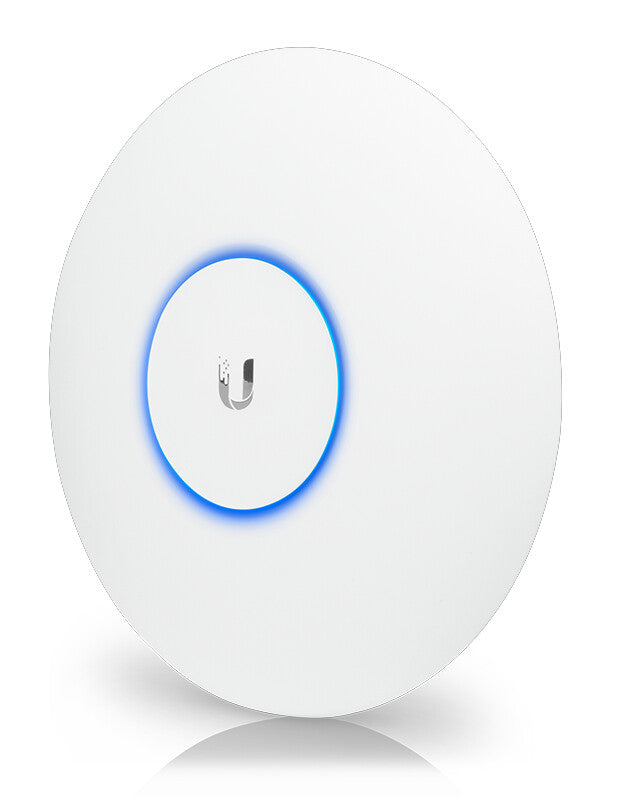

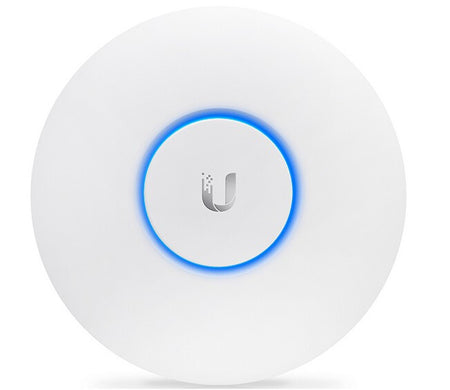

UAP-AC-PRO
Deploy the UniFi AC Pro AP indoors or outdoors, in wireless networks requiring maximum performance.
Sporting a weatherproof design, the UniFi AC Pro AP features simultaneous, dual-band, 3x3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility. It is available in single- and five‑packs.
| Features |
|---|
| Maximum indoor range |
122 m |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi data rate (max) |
1300 Mbit/s |
| Maximum data transfer rate |
1300 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Security algorithms |
AES, TKIP, WEP, WPA, WPA2 |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power consumption (max) |
9 W |
| Input current |
0.5 A |
| AC input voltage |
48 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Internal |
No |
| Reset button |
Yes |
| Product colour |
White |
| Antenna |
|---|
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
3 |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Weight & dimensions |
|---|
| Weight |
350 g |
| Height |
35 mm |
| Depth |
196.7 mm |
| Width |
196.7 mm |
| Packaging content |
|---|
| Mounting kit |
Yes |
| PoE adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
