SKU: UDB

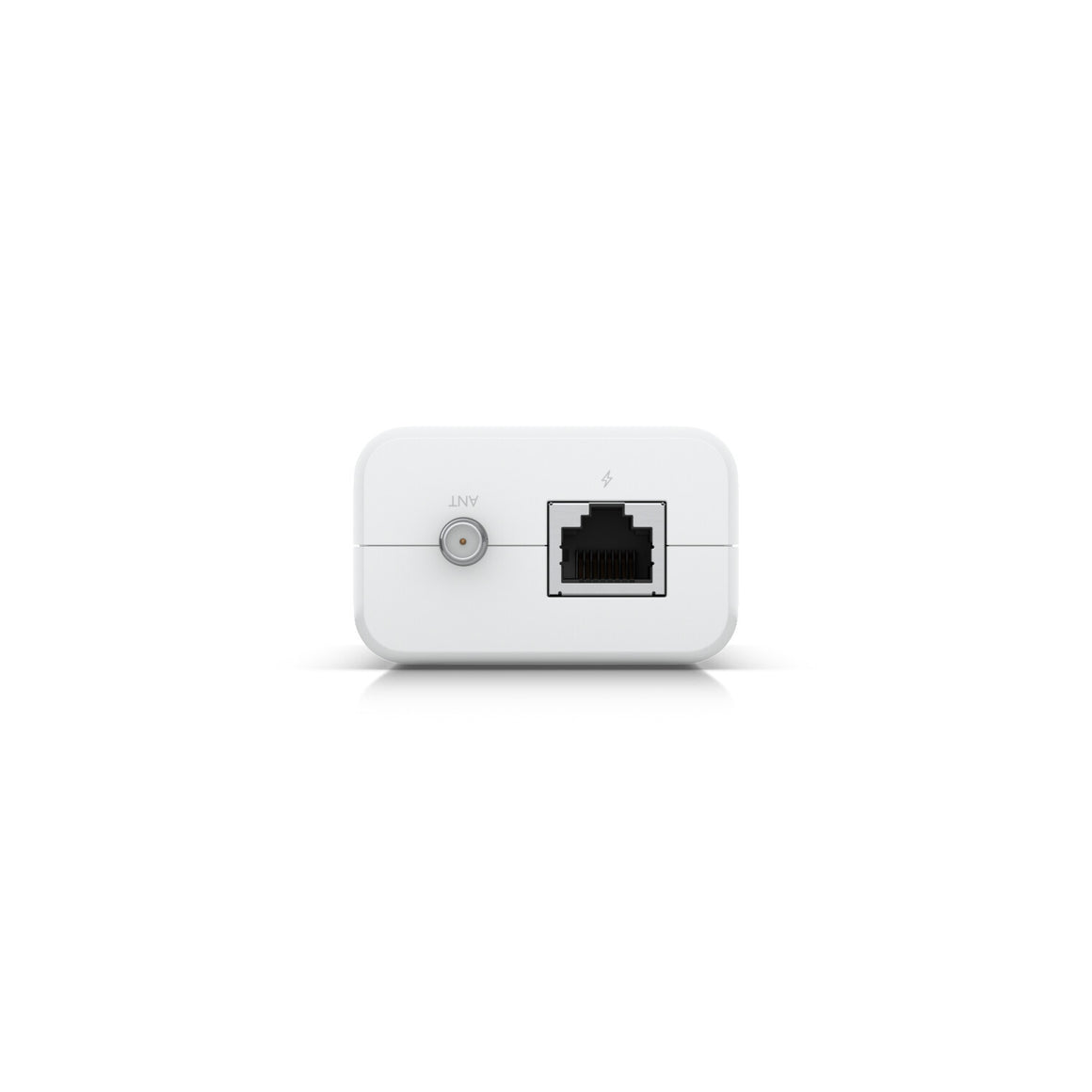

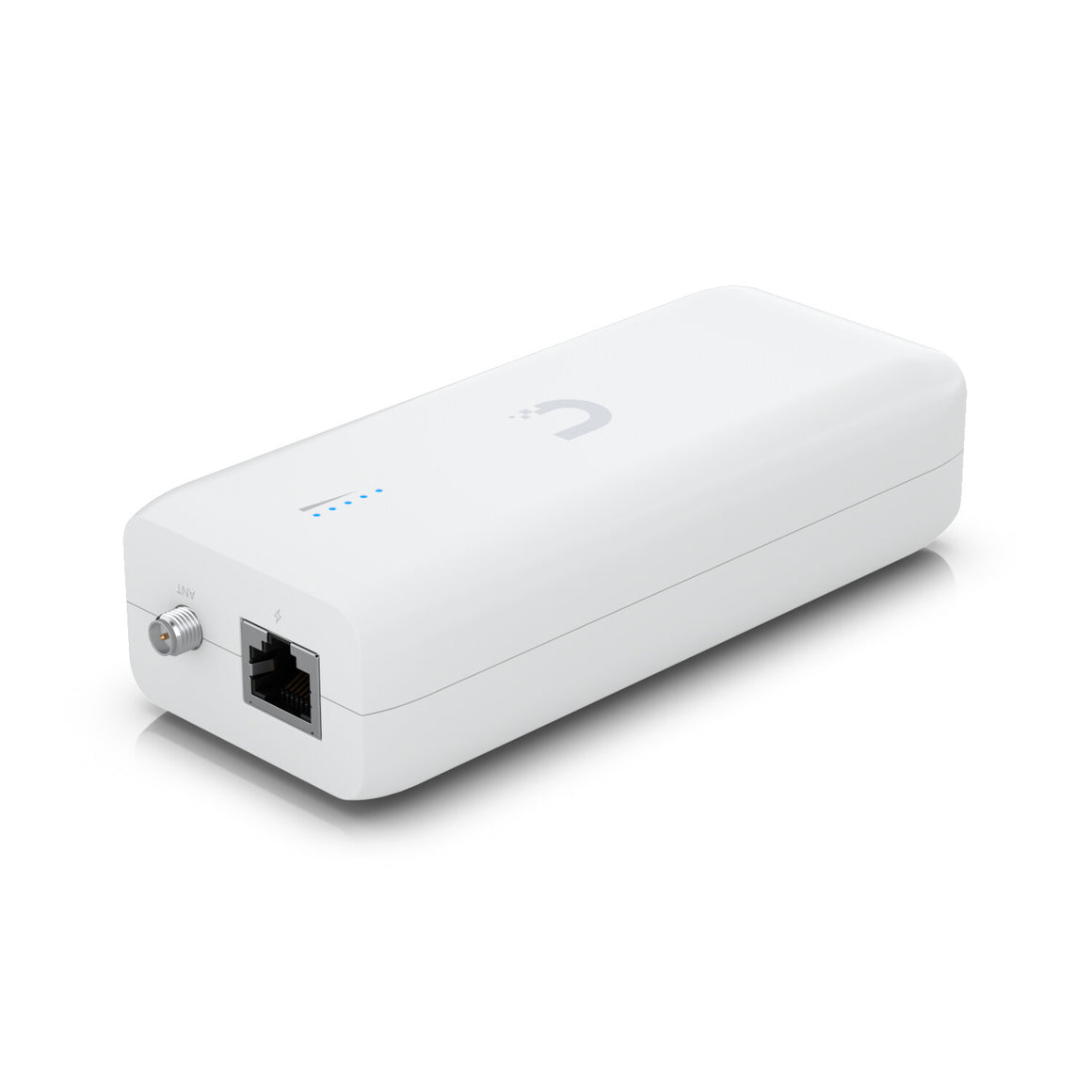

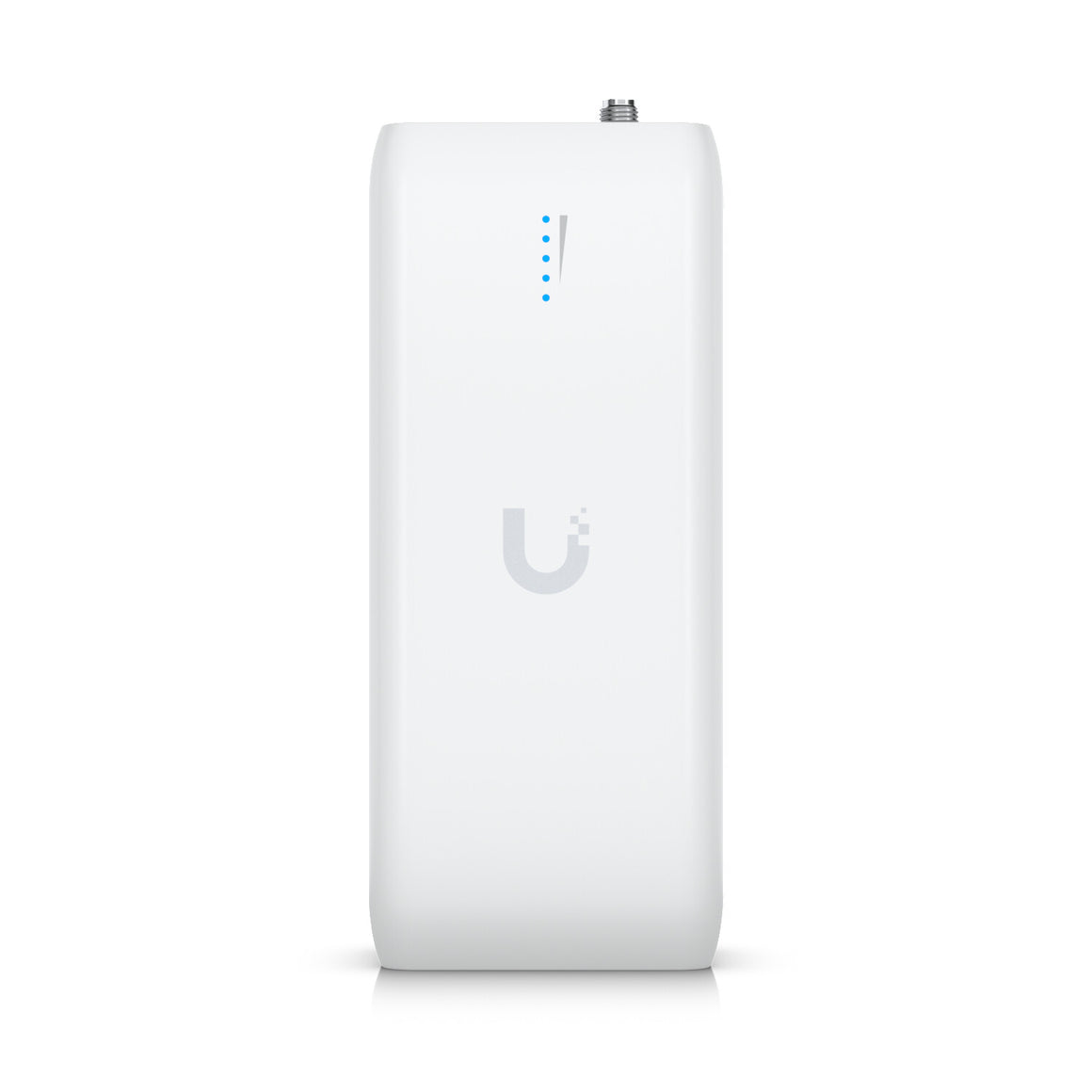

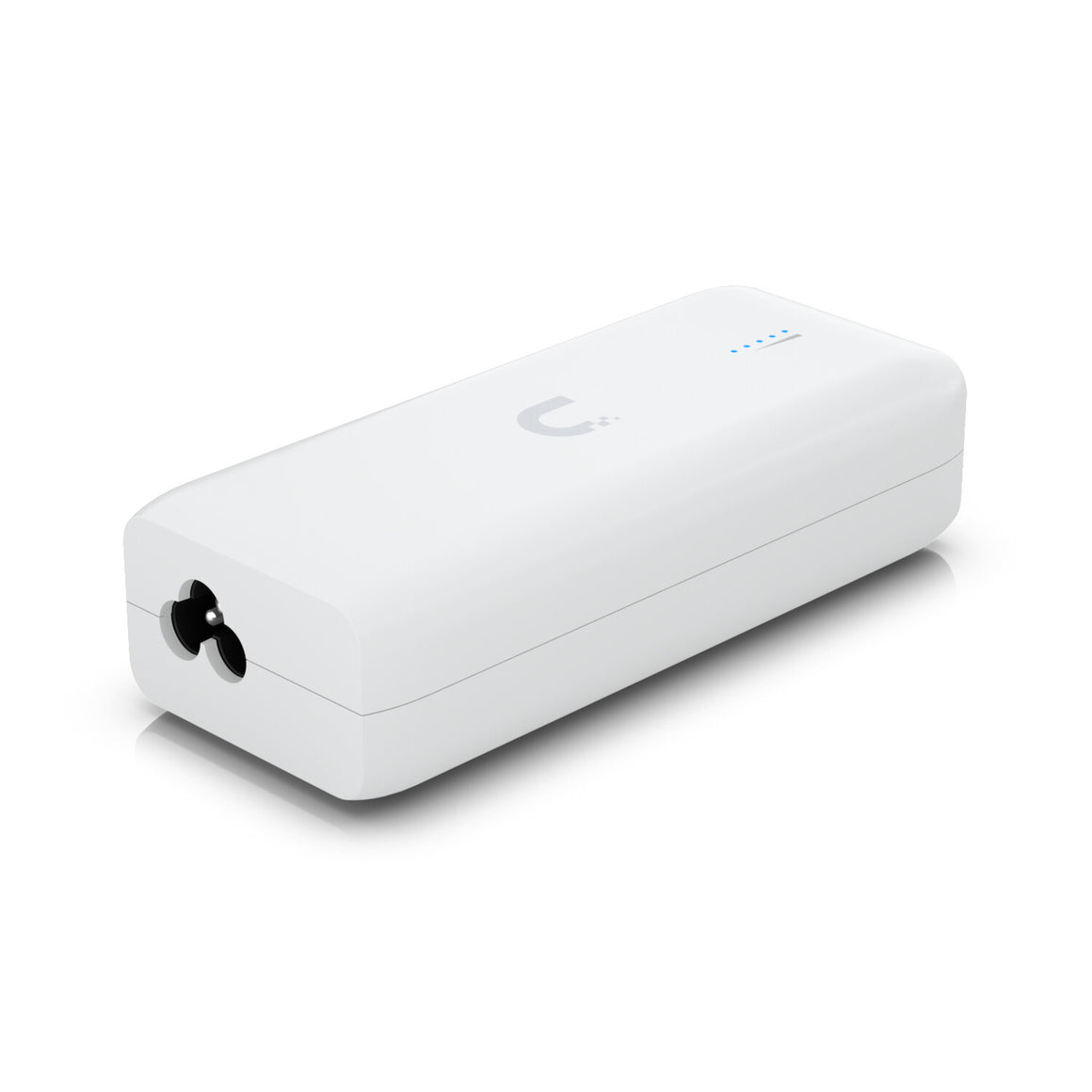

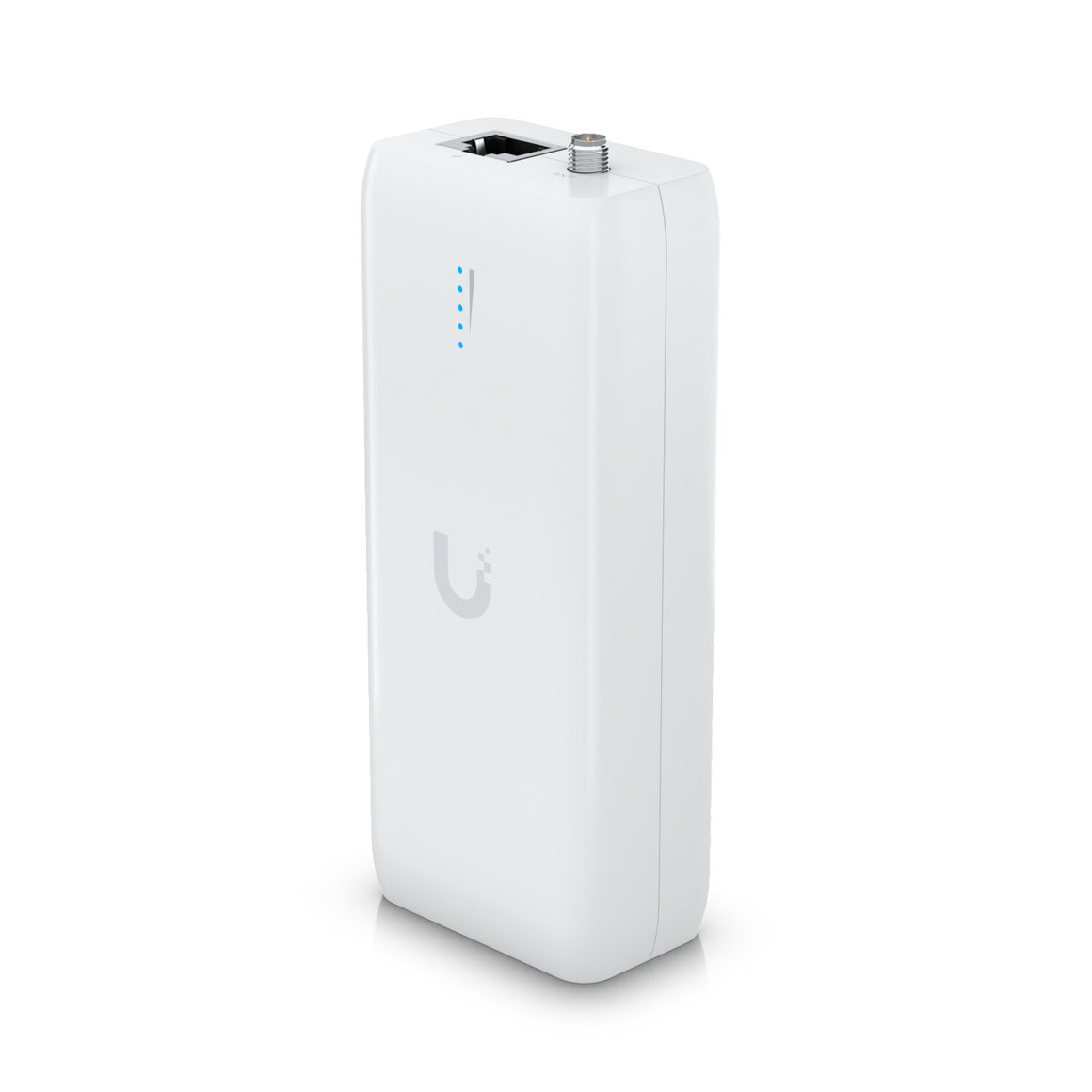

Ubiquiti UDB bridge/repeater Network bridge 866.7 Mbit/s White

Ubiquiti Networks
£101.29
iFrame
  • (1) GbE LAN port that provides up to 15W of PoE
  • 5 GHz band with up to 867 Mbps throughput rate
  • Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.

Data transmission
Maximum data transfer rate 866.7 Mbit/s
Antenna
Antenna gain level (max) 5 dBi
Antenna connector type RP-SMA
Antenna type 2x2
Antenna design Internal & external
Wireless LAN features
Signal strength 21 dBm
Frequency band 5 GHz
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi band Single-band (5 GHz)
Wi-Fi Yes
Network
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired & Wireless
Features
Reset button Yes
LED indicators Signal strength, Status
Product colour White
Mounting type Wall
Material Polycarbonate (PC)
Product type Network bridge
Power
Power over Ethernet (PoE) Yes
Power consumption (max) 25 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power source type AC
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -10 - 40 °C
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Weight & dimensions
Weight 200 g
Height 34 mm
Depth 55 mm
Width 130 mm
Packaging content
Cables included AC
Power supply included Yes
Mounting bracket(s) included Yes
Packaging data
Quantity per pack 1 pc(s)
