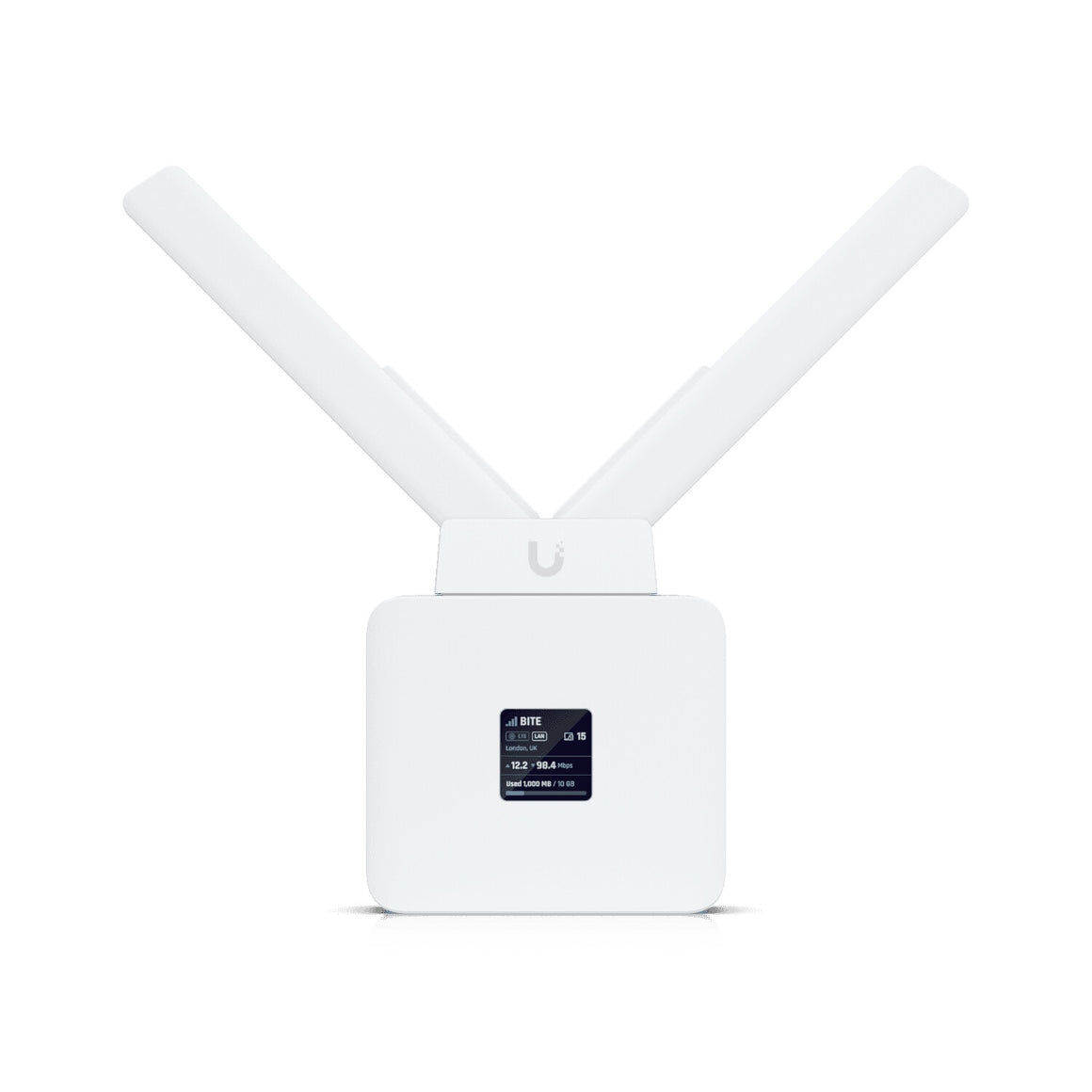

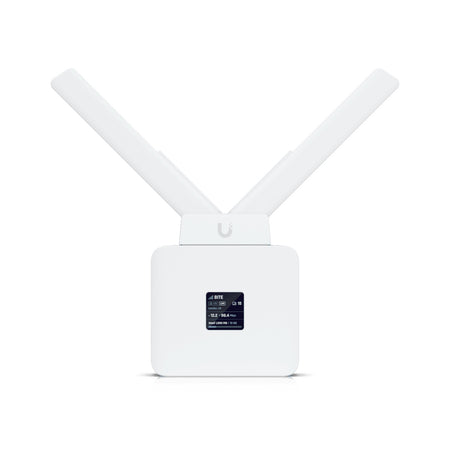

Managed mobile WiFi router that brings plug-and-play connectivity to any environment. Bring your own nano-SIM for LTE data.
| Design |
|---|
| Reset button |
Yes |
| Display diagonal |
3.3 cm (1.3") |
| Display type |
LCM |
| Built-in display |
Yes |
| Mounting |
DIN-rail/Wall mounting |
| Housing material |
Polycarbonate (PC) |
| Product colour |
White |
| Device type |
Cellular network router |
| Ethernet LAN features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi frequency |
2.4 GHz |
| WLAN data transfer rates supported |
1,2,5.5,6,9,11,12,18,24,36,48,54,150 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Mobile network |
|---|
| Data transfer rate (LTE) (upload) |
50 Mbit/s |
| Data transfer rate (LTE) (download) |
150 Mbit/s |
| SIM card type |
NanoSIM |
| 4G standard |
LTE |
| Data network |
3G, 4G |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB port type |
USB Type-C |
| Ethernet LAN (RJ-45) ports |
2 |
| Certificates |
|---|
| Certification |
CE, UKCA, GCF |
| Performance |
|---|
| Antennas quantity |
3 |
| Antenna connector type |
TS-9 |
| Antenna type |
Internal & external |
| GPS (satellite) |
Yes |
| RAM type |
DDR2 |
| RAM capacity |
0.128 GB |
| Processor frequency |
0.775 GHz |
| Built-in processor |
Yes |
| Power |
|---|
| Output voltage |
48 - 54 V |
| Power source type |
DC, PoE, USB |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 45 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Weight |
303 g |
| Height |
220.6 mm |
| Depth |
28.8 mm |
| Width |
89.8 mm |
| Packaging data |
|---|
| User guide |
Yes |
