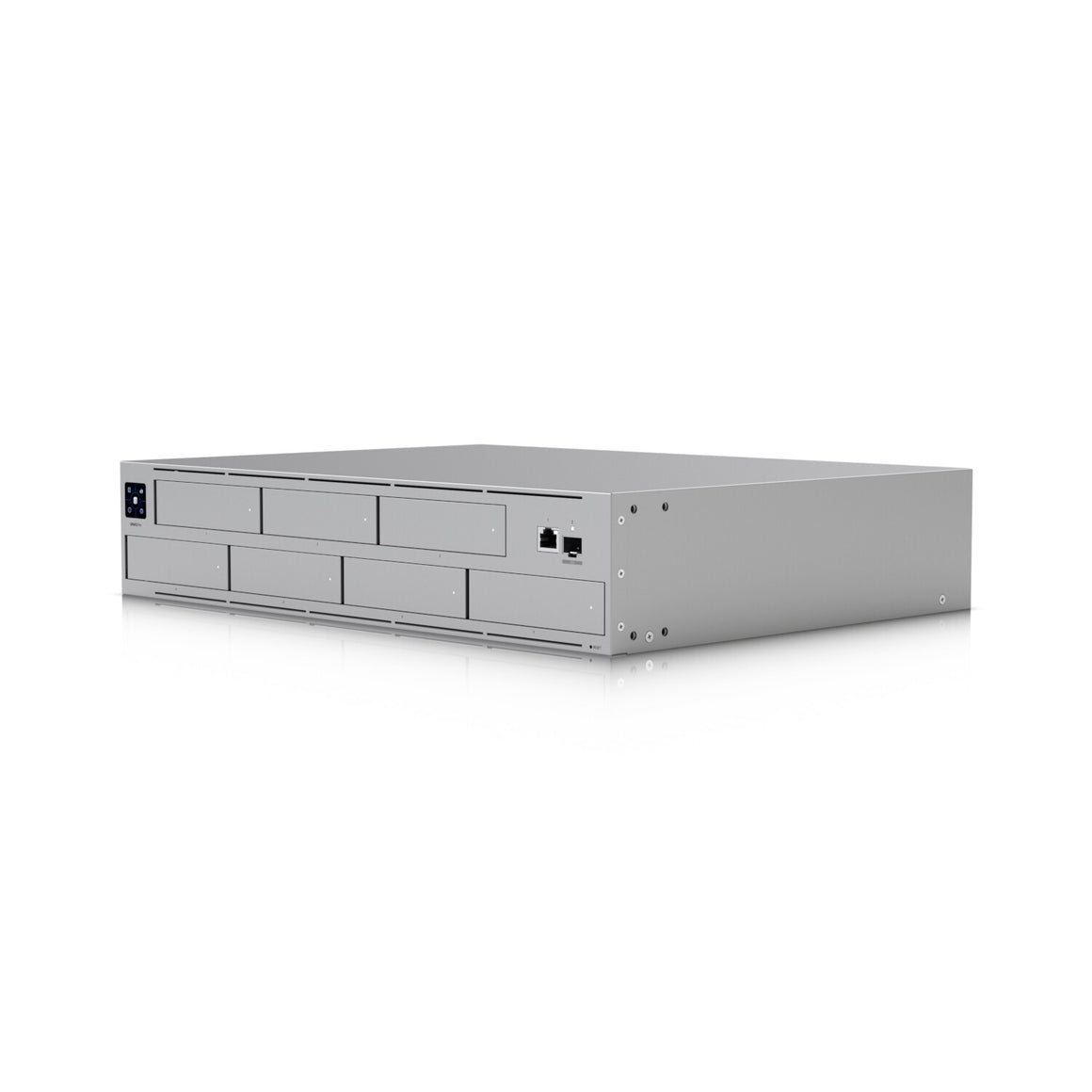

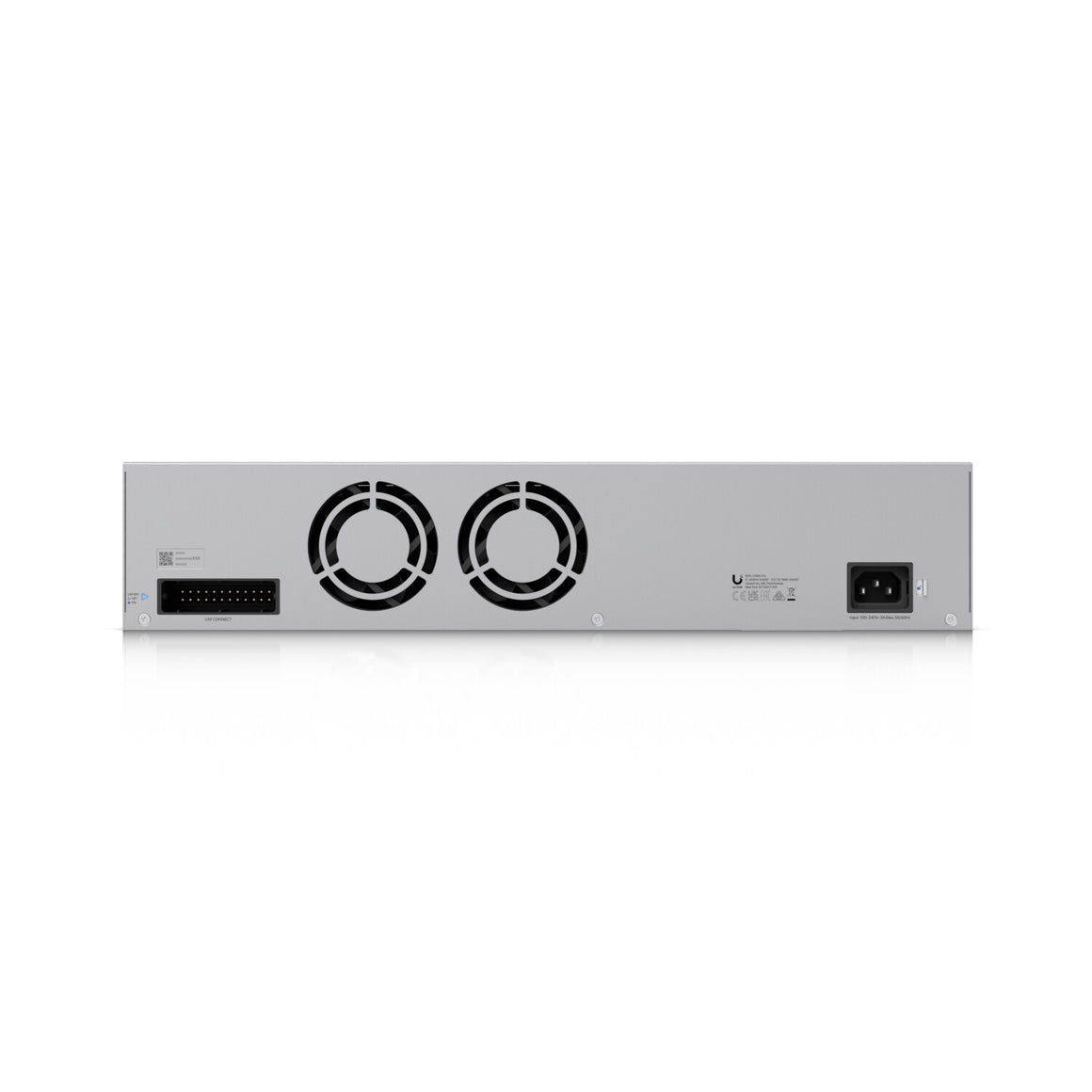

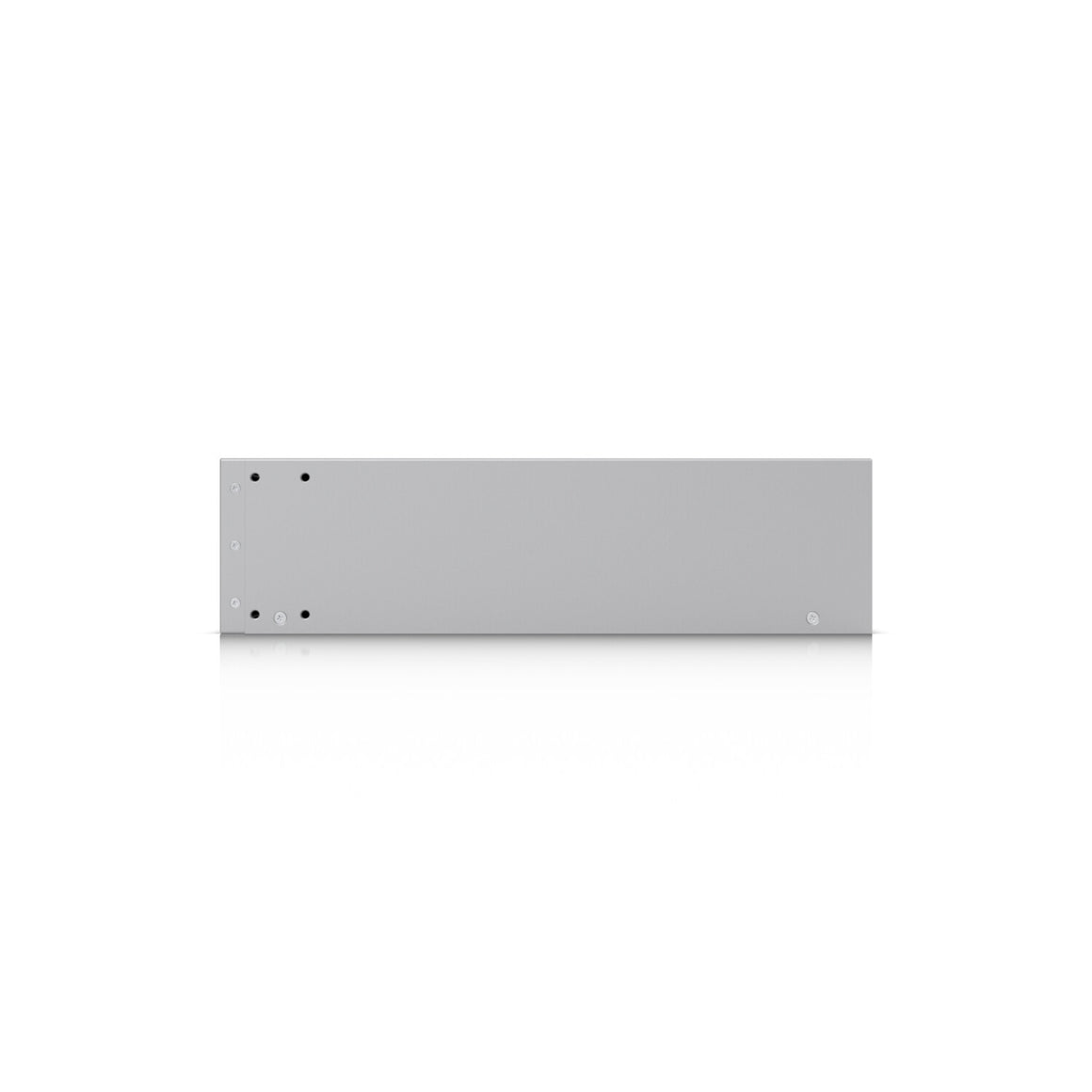

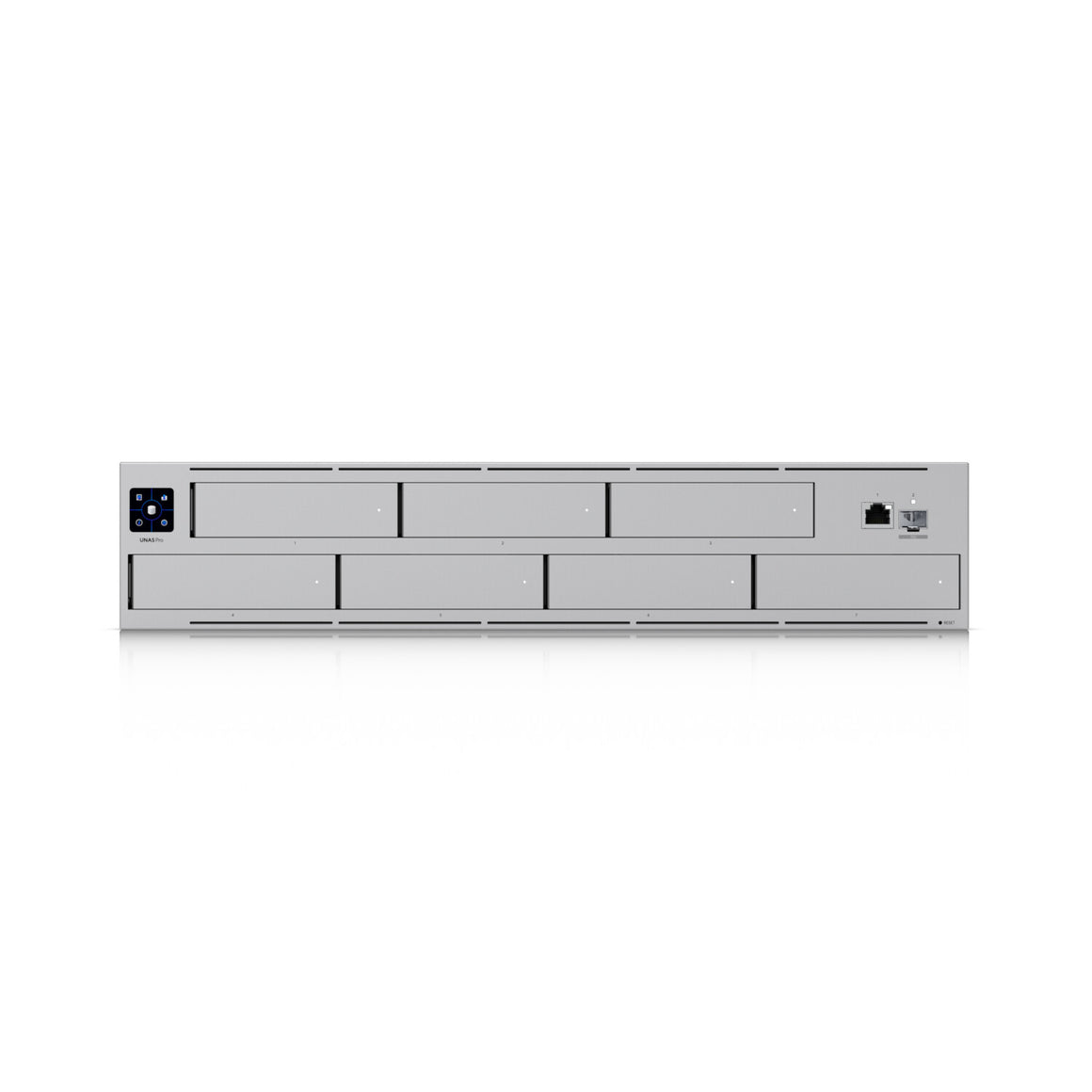

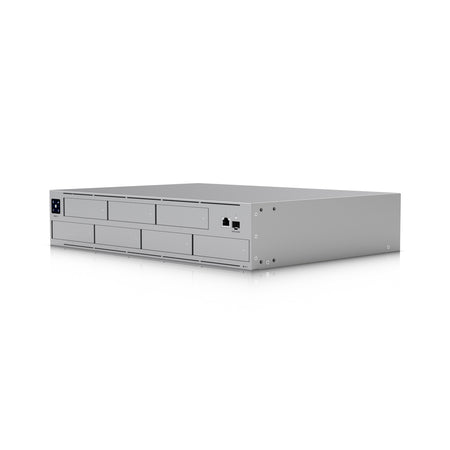

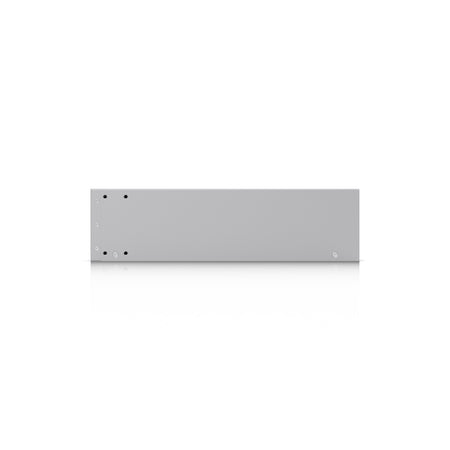

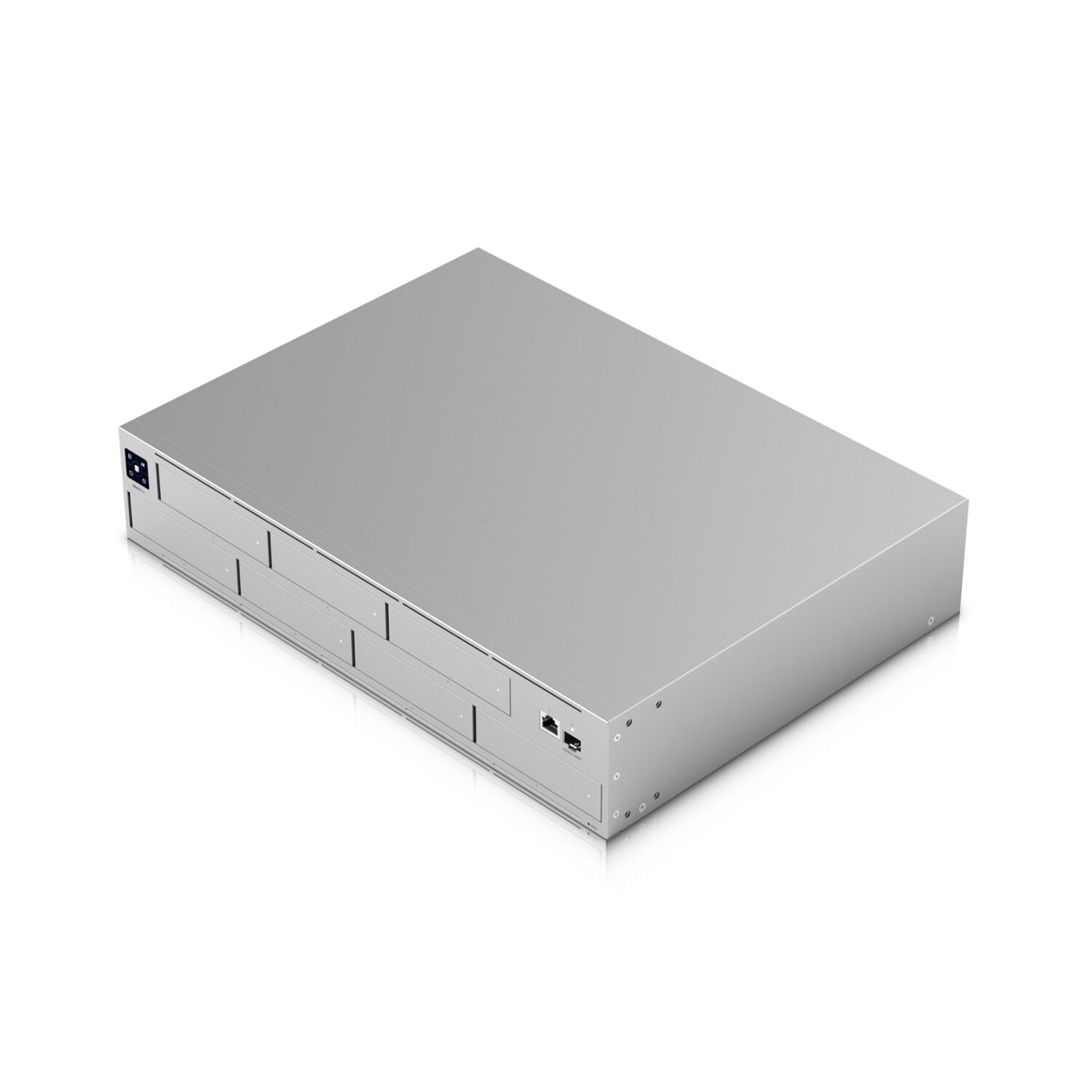

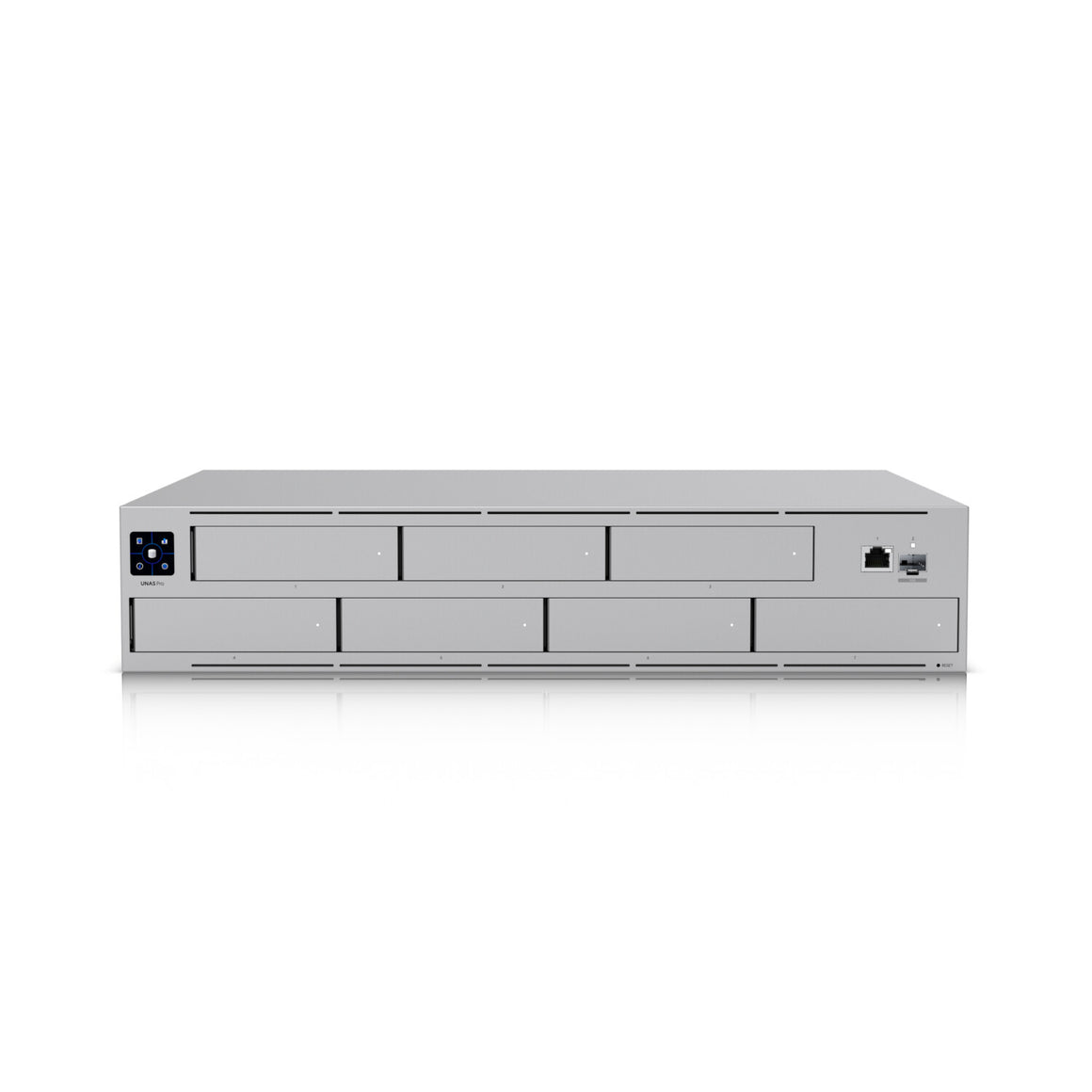

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.
| Storage |
|---|
| RAID support |
Yes |
| Storage drive sizes supported |
2.5,3.5" |
| Supported storage drive types |
HDD & SSD |
| Installed storage drive type |
No |
| Number of storage drives supported |
7 |
| Storage drives installed |
No |
| Processor |
|---|
| Processor architecture |
ARM Cortex-A57 |
| Processor cores |
4 |
| Processor frequency |
1.7 GHz |
| Processor model |
Cortex-A57 |
| Processor family |
Cortex-A |
| Processor manufacturer |
ARM |
| Memory |
|---|
| Internal memory |
8 GB |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Fiber optic connector |
SFP+ |
| Fiber ports quantity |
1 |
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
|---|
| Display type |
LCM |
| Built-in display |
Yes |
| LED indicators |
Status |
| Number of fans |
2 fan(s) |
| Housing material |
Steel |
| Product colour |
Grey |
| Cooling type |
Active |
| Chassis type |
Rack (2U) |
| Performance |
|---|
| Reset button |
Yes |
| Backup function |
Yes |
| Type |
NAS |
| Power |
|---|
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (max) |
160 W |
| Redundant power supply (RPS) support |
Yes |
| Power supply unit (PSU) capacity |
200 W |
| Power supply location |
Built-in |
| Weight & dimensions |
|---|
| Weight |
9.2 kg |
| Height |
87 mm |
| Depth |
325 mm |
| Width |
442 mm |

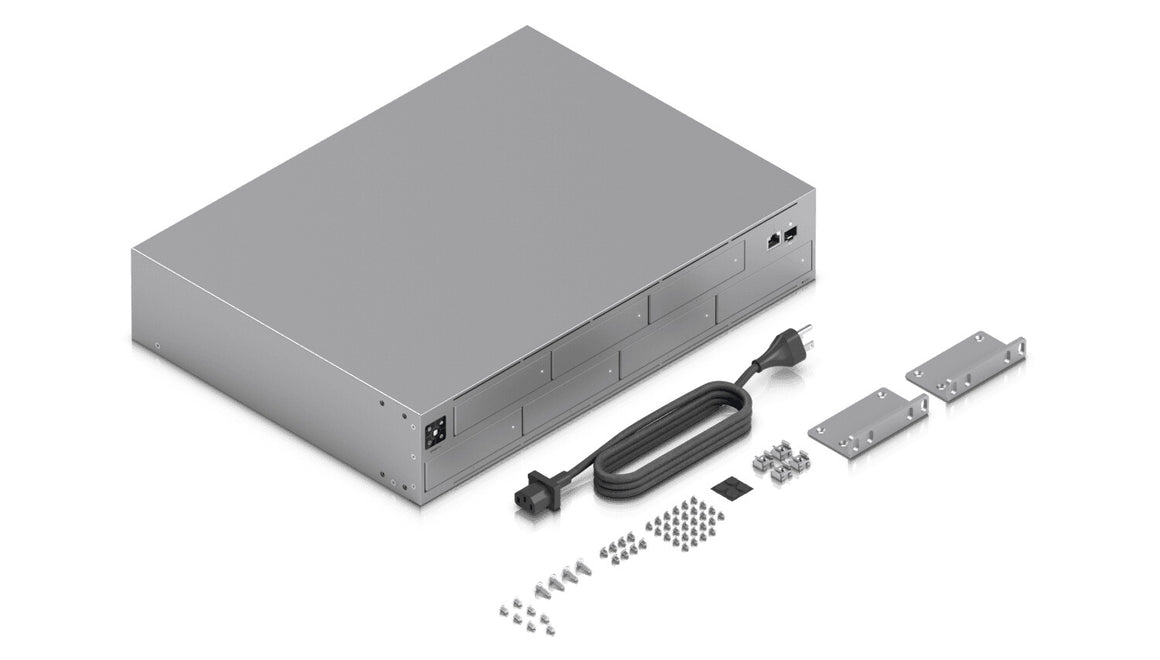

| Packaging content |
|---|
| Rack mount kit |
Yes |
| Cables included |
Power |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-5 - 40 °C |
| Other features |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
