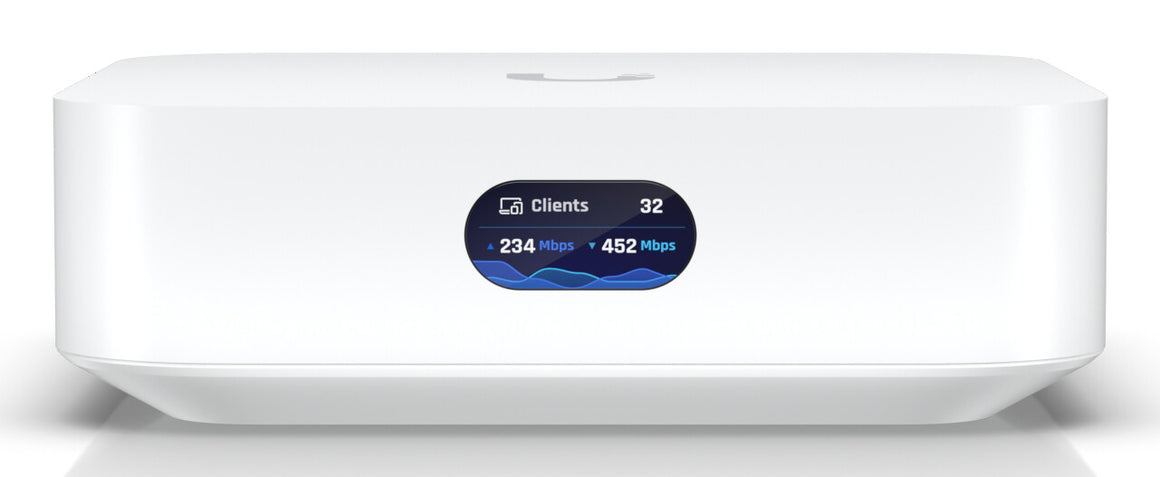

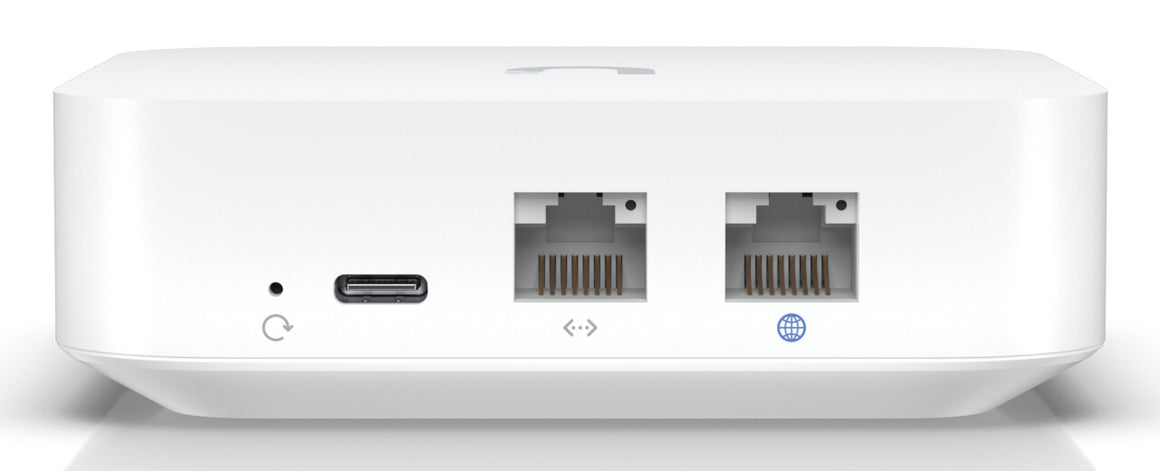

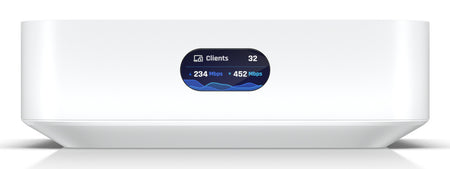

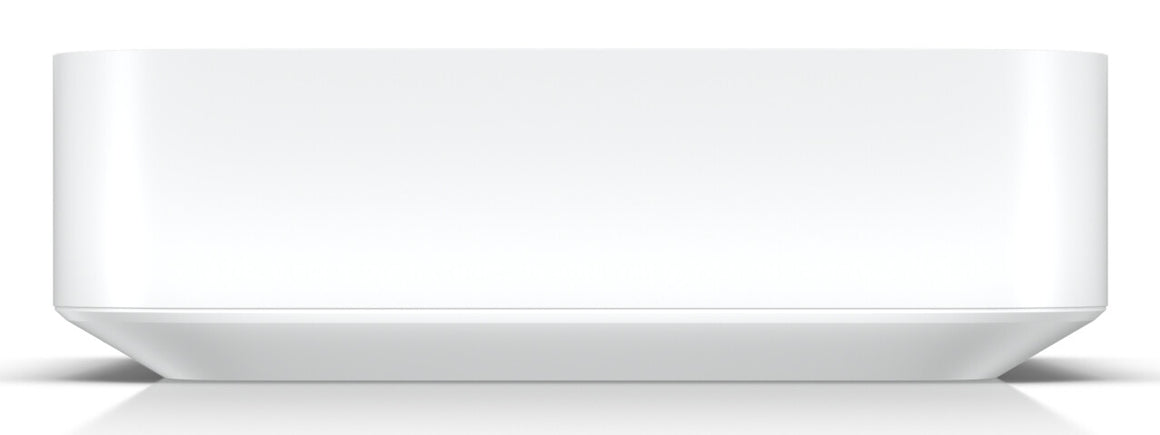

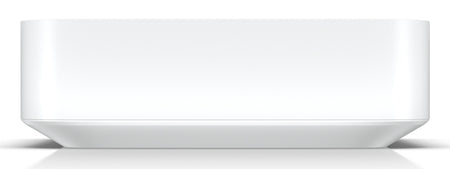

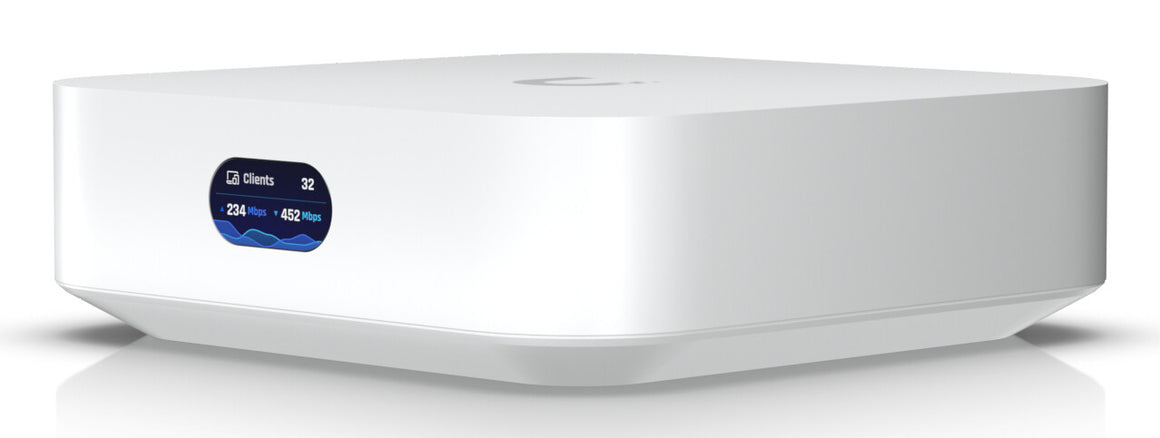

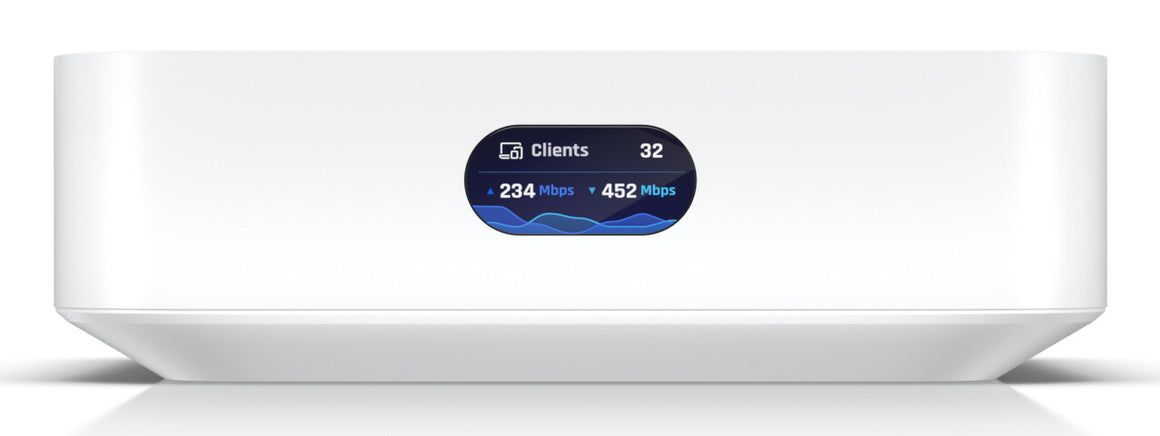

Powerfully compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| Maximum Tx power (2.4 GHz) |
22 dBmW |
| Maximum Tx power (5 GHz) |
25 dBmW |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| USB charging port |
Yes |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| Management features |
|---|
| MU-MIMO technology |
Yes |
| MIMO |
Yes |
| Number of data streams |
2x2 |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Security |
|---|
| Guest access |
Yes |
| Security algorithms |
IPSec, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Design |
|---|
| Built-in display |
Yes |
| Housing material |
Polycarbonate (PC) |
| Product colour |
White |
| Product type |
Tabletop router |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Antenna |
|---|
| Antennas quantity |
3 |
| Antenna gain level (max) |
5.15 dBi |
| Antenna type |
2x2 |
| Antenna design |
Internal |
| Features |
|---|
| Bluetooth |
Yes |
| Plug and Play |
Yes |
| Number of simultaneously connected devices (max) |
60 |
| Power |
|---|
| Power consumption (typical) |
10 W |
| Output current |
3 A |
| Output voltage |
5 V |
| Power source type |
AC, DC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 45 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
98 mm |
| Depth |
98 mm |
| Height |
30 mm |
| Weight |
302 g |
