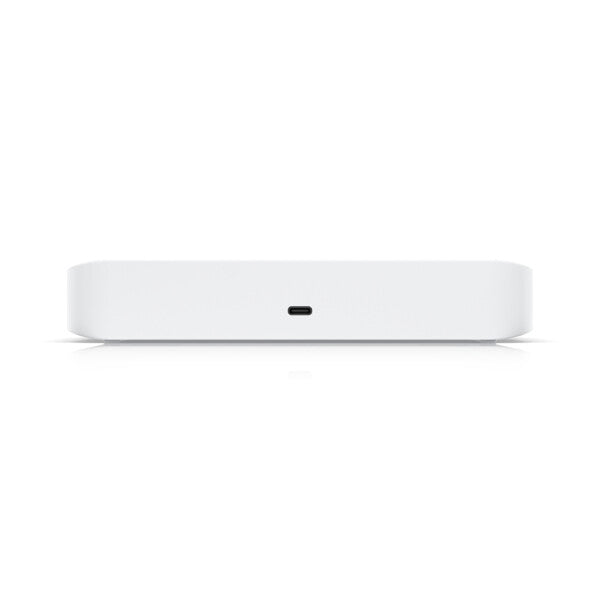

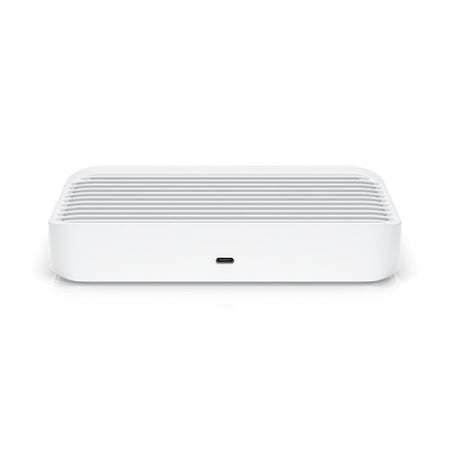

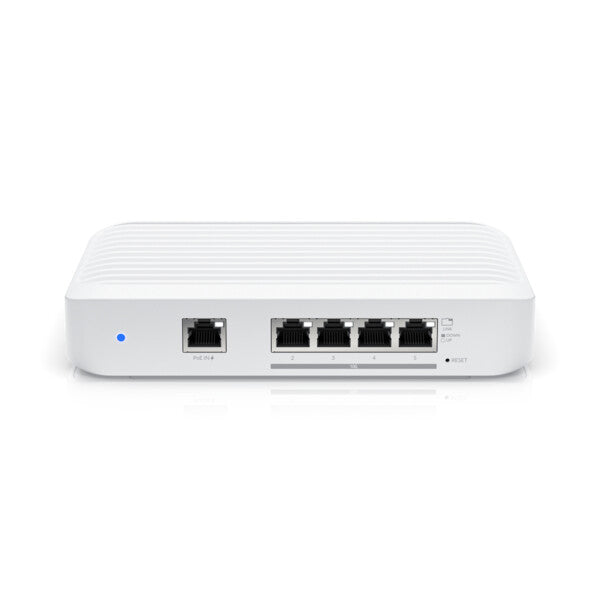

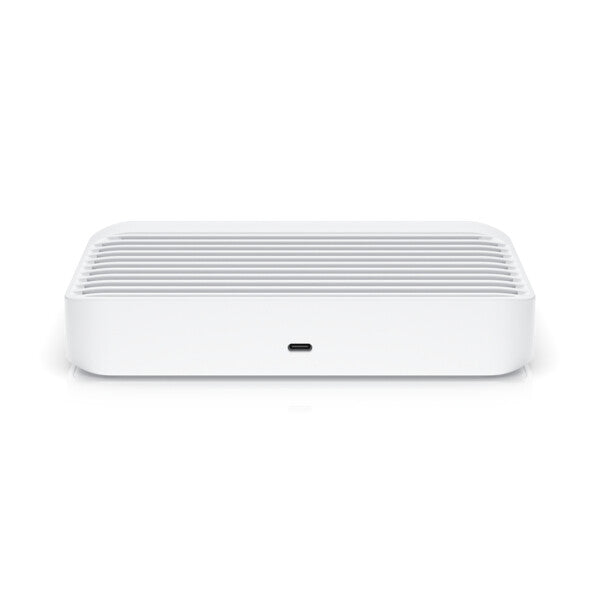

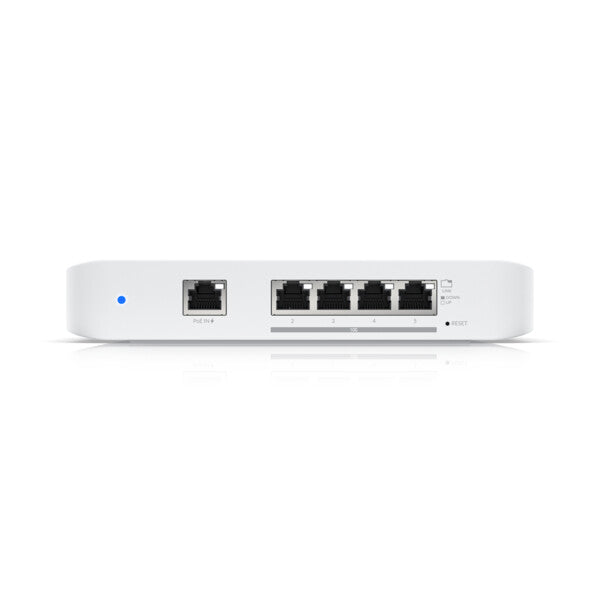

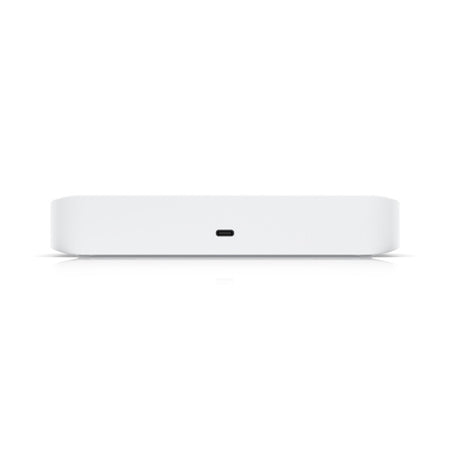

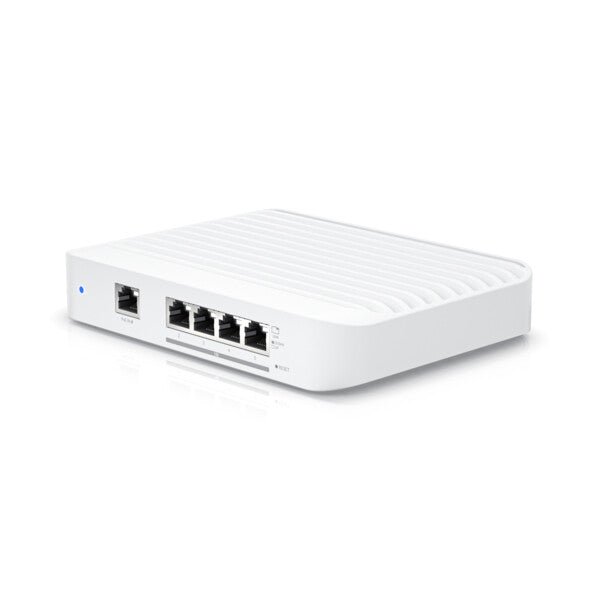

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000,2500,5000,10000 Mbit/s |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3at |
| Data transmission |
|---|
| Forwarding rate |
61.012 Mpps |
| Switching capacity |
82 Gbit/s |
| Design |
|---|
| LED indicators |
Yes |
| Reset button |
Yes |
| Housing material |
Polycarbonate (PC) |
| Product colour |
White |
| Rack mounting |
No |
| Power |
|---|
| Power consumption (max) |
25 W |
| Input current |
5 A |
| DC input voltage |
5 V |
| AC input voltage |
90 - 264 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-5 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
1.2 kg |
| Height |
32 mm |
| Depth |
185 mm |
| Width |
135 mm |
| General |
|---|
| Product family |
UniFi |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
