UniFi Switch 24 is a fully managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) Gigabit SFP ports for fiber connectivity

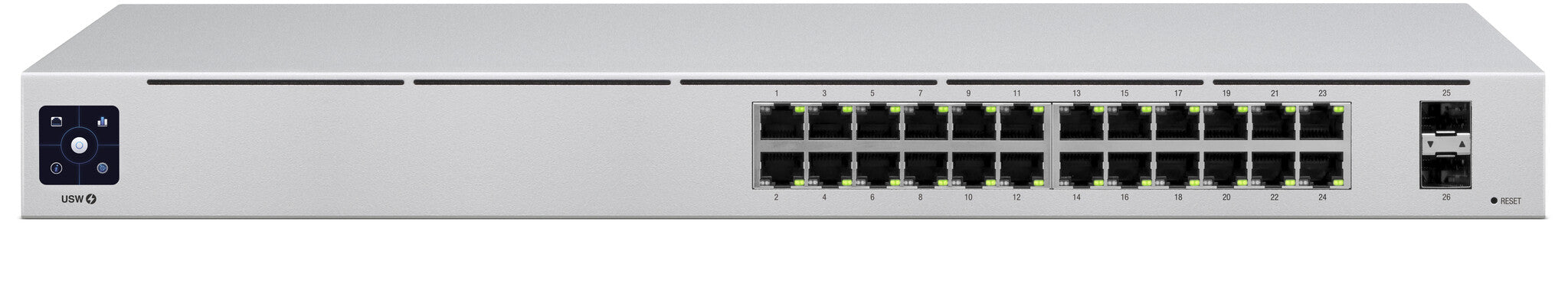

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
| Management features |
|---|
| Web-based management |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Power connector |
AC-in jack |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| 10G support |
No |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Design |
|---|
| Product colour |
Silver |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (typical) |
120 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-5 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
2.7 kg |
| Height |
43.7 mm |
| Depth |
200 mm |
| Width |
442.4 mm |
| General |
|---|
| Product family |
UniFi |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
