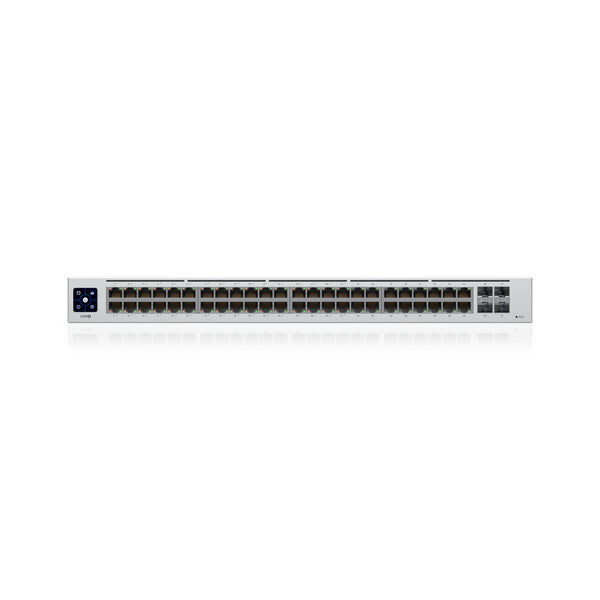

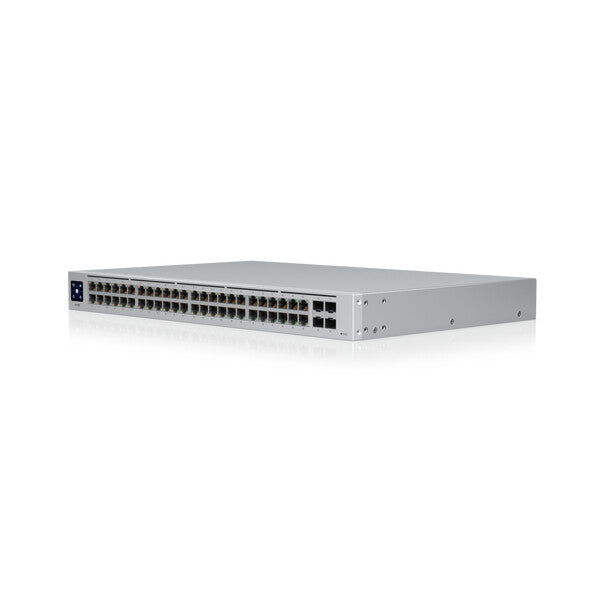

A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| SFP module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
|---|
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Auto-sensing |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Data transmission |
|---|
| Jumbo frames support |
Yes |
| Forwarding rate |
77.38 Mpps |
| Switching capacity |
104 Gbit/s |
| Security |
|---|
| Authentication type |
RADIUS |
| Design |
|---|
| LED indicators |
Activity, Link, Speed |
| Product colour |
Stainless steel |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
45 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
195 W |
| Power over Ethernet (PoE) power per port |
32 W |
| Power over Ethernet plus (PoE+) ports quantity |
32 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-5 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
4.52 kg |
| Height |
43.7 mm |
| Depth |
285 mm |
| Width |
442.4 mm |
| Packaging content |
|---|
| Manual |
Yes |
| General |
|---|
| Product family |
UniFi |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
