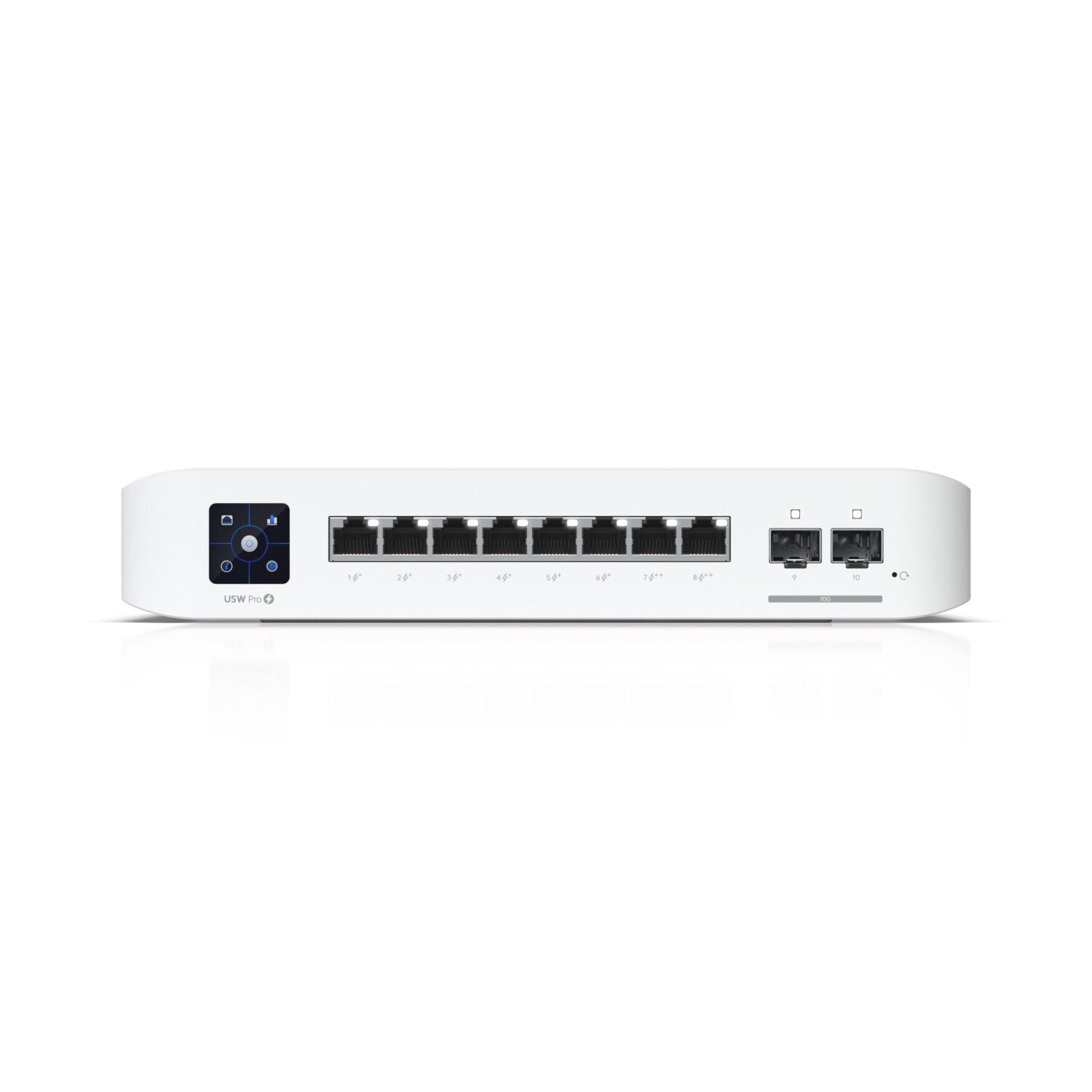

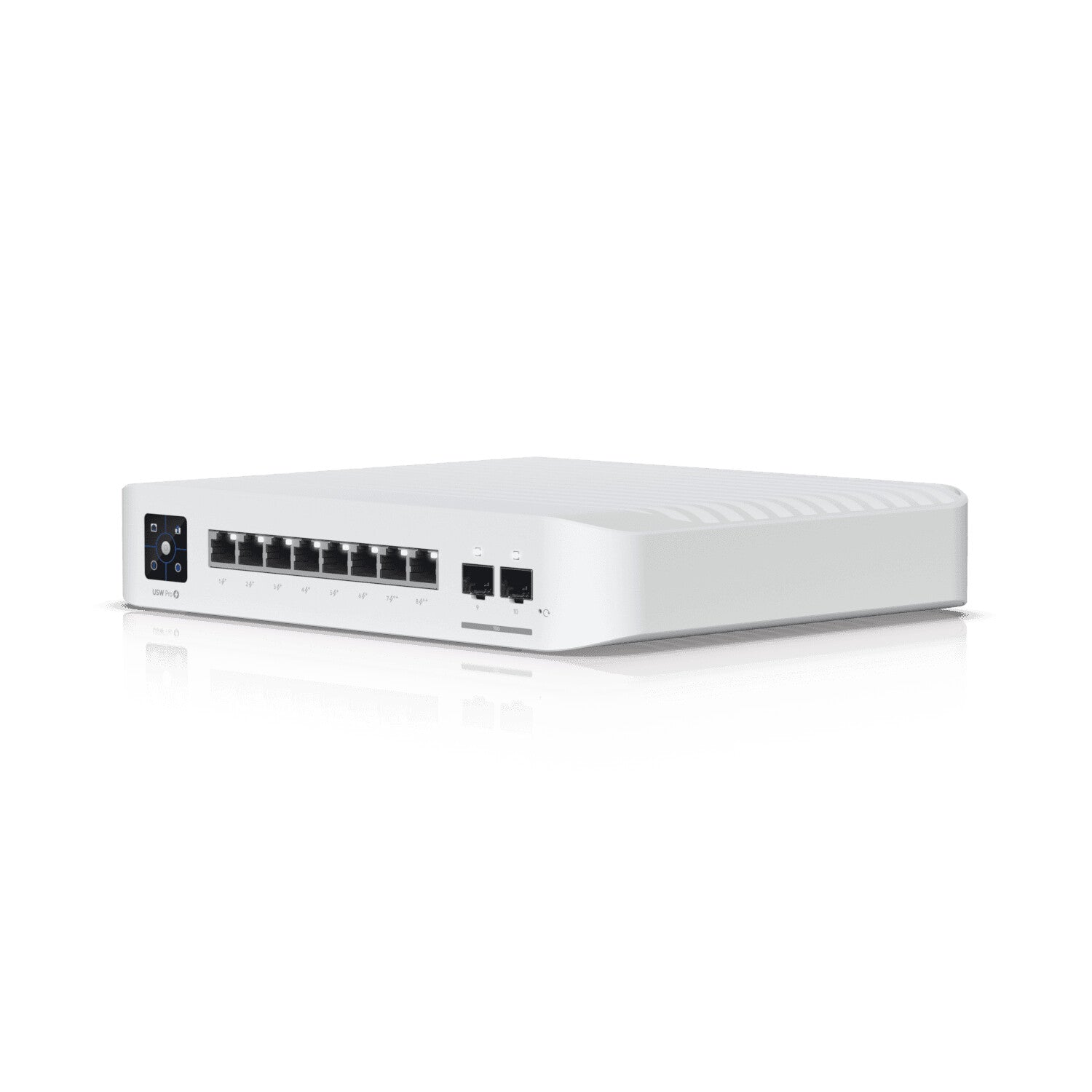

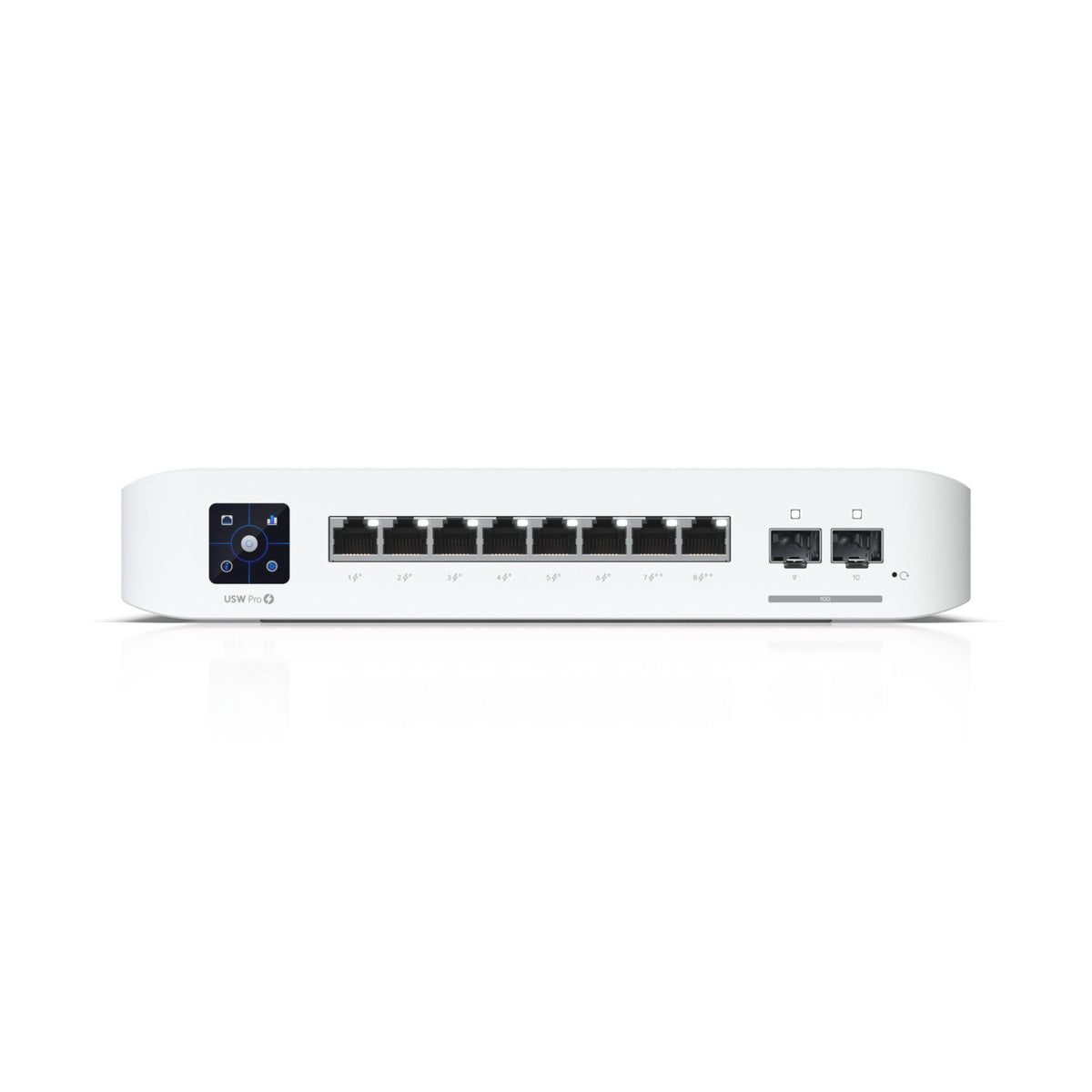

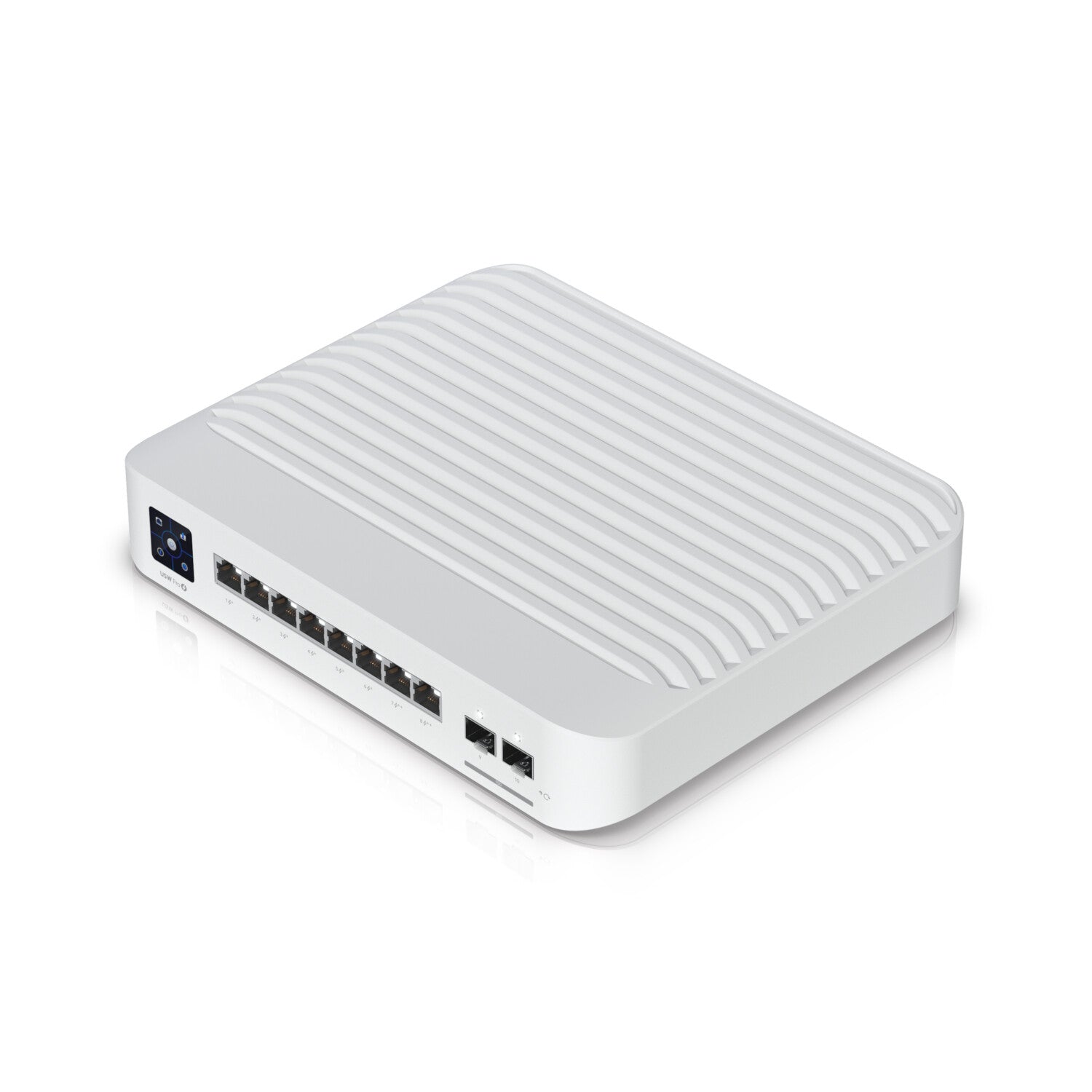

An 8-port, Layer 3 switch with PoE+ and PoE++ output.
| Management features |
|---|
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Auto-sensing |
Yes |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 10BASE-TX, 100BASE-FX, 100BASE-TX |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Data transmission |
|---|
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Switching capacity |
56 Gbit/s |
| Security |
|---|
| Authentication type |
IEEE 802.1x, RADIUS |
| Authentication |
Port-based authentication |
| DHCP features |
DHCP server |
| Design |
|---|
| LED indicators |
Activity, Link, PoE, Speed, System |
| Housing material |
Metal, Plastic |
| Product colour |
White |
| Form factor |
1U |
| Power |
|---|
| Input current |
2 A |
| AC input voltage |
100 - 240 V |
| Number of power supply units |
1 |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet (PoE) power per port |
60 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
2 |
| Power over Ethernet plus (PoE+) ports quantity |
6 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-5 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
2.1 kg |
| Height |
44 mm |
| Depth |
248 mm |
| Width |
200 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| General |
|---|
| Product family |
UniFi |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
