ULTRA HD RESOLUTION
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
POWERFUL EMBEDDED SOC PLATFORM
The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.
FREE-STANDING DESIGN

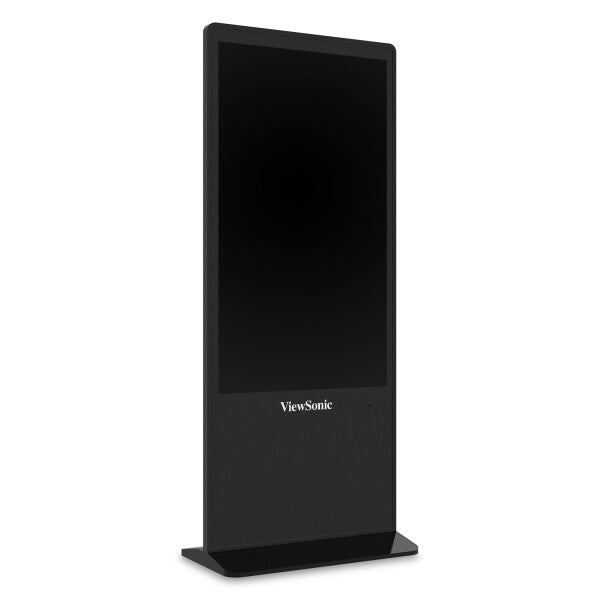

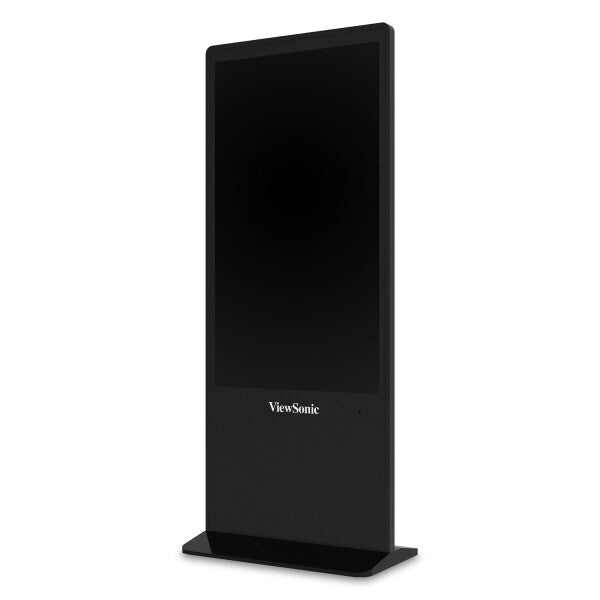

This all-in-one digital ePoster kiosk features a sleek and slim premium design, coupled with a free-standing form factor to deliver dynamic messaging in high-traffic areas.
OPTIONAL CONTENT MANAGEMENT SOFTWARE
Great for all venues and scenarios, the optional cloud-based Revel Digital CMS software lets users transfer multimedia content onto the display from PCs and laptops. This partner-certified content management tool also lets you format, schedule, and save playback settings.
ANTI-SCRATCH, ANTI-GLARE GLASS FACEPLATE
This display features a scratch-resistant surface that ensures a durable, consistent, high-quality viewing experience. In addition, an anti-glare film improves screen visibility in bright environments.
MEDIA PLAYER CRADLE WITH LOCKABLE SECURITY DOOR
A convenient media player cradle can accommodate a PC or an additional mounted media player, while a lockable door keeps things secure and out of sight. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom and flexibility to connect to your dedicated graphics card and gaming console.
DUAL INTEGRATED SPEAKERS
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.
EASY LAN CONTROL
This display has an integrated RJ45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can also remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface.
| Display |
|---|
| Haze rate |
2% |
| Rated lifetime |
30000 h |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1300:1 |
| Response time |
9 ms |
| Native aspect ratio |
16:9 |
| HD type |
4K Ultra HD |
| Display brightness |
400 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| LED backlighting type |
Direct-LED |
| Panel type |
MVA |
| Display diagonal |
139.7 cm (55") |
| Ports & interfaces |
|---|
| RS-232 interface |
Yes |
| Audio (L/R) out |
1 |
| Audio (L/R) in |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB ports quantity |
3 |
| USB port |
Yes |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) input ports |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
10 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Anti-glare screen |
Yes |
| Orientation |
Vertical |
| Performance |
|---|
| HDCP |
Yes |
| HDCP version |
2.2 |
| Operating hours (hours/days) |
16/7 |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (SDR) per 1000 hours |
73 kWh |
| Energy efficiency class (SDR) |
F |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
126 W |
| Computer system |
|---|
| Operating system installed |
Android 8.0 |
| Internal memory |
2 GB |
| Weight & dimensions |
|---|
| Display weight |
62.7 kg |
| Display height |
1870 mm |
| Display depth |
400 mm |
| Display width |
768.5 mm |
| Packaging data |
|---|
| Package weight |
74.7 kg |
| Package height |
2034 mm |
| Package depth |
609 mm |
| Package width |
970 mm |
| Packaging content |
|---|
| Cables included |
AC |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 85% |
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
