SKU: TC 3MVGAP

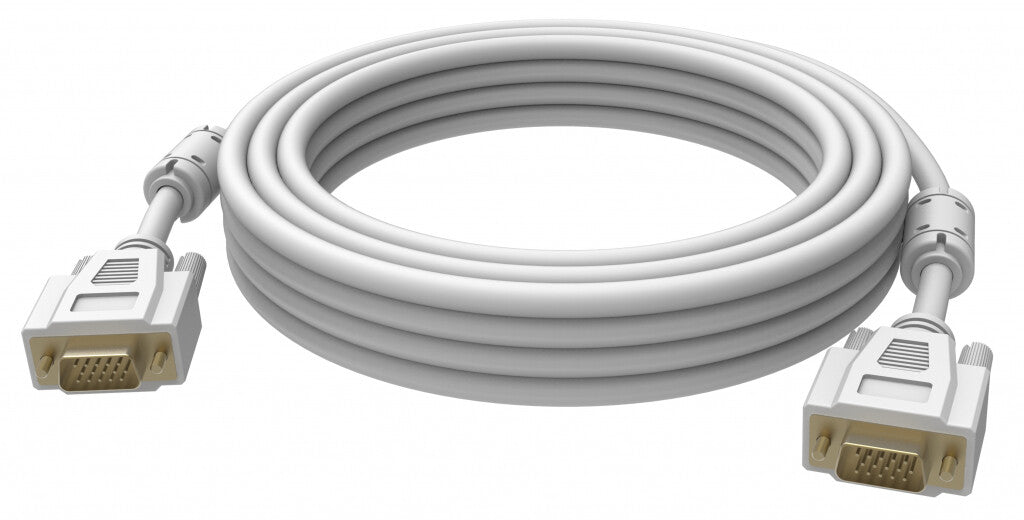

Vision 2x VGA 15-pin D-Sub, 3m VGA cable VGA (D-Sub) White

Vision
£16.96
iFrame
  • 3 m
  • VGA (D-Sub) Male
  • VGA (D-Sub) Male
  • AWG wire size: 28
  • Cable jacket material: Polyvinyl chloride (PVC)
  • White

TC XXMVGAPPlugs into the VGA socket on your computer – which is often blue – and connects to a display device at the other end.

- VGA 15-pin D-Sub (male) to VGA 15-pin D-Sub (male)
- Colour: White
- Ferrite cores on both ends to stop RF interference
- Gold-plated connectors
- Sheath: PVC, outer diameter: 8.0 mm (0.31″)
- Conductor thickness: 28 AWG
- Drain wire laid between aluminum mylar and braid
- Al-Mg alloy wire overall, more than 65% coverage braided shield
- Impedance: at 10MHz, 75Ω (coaxial cable)
- Resistance 20℃(Ω/1000m) 237.25.
- Compliance: CE, FCC

Features
Cable jacket material Polyvinyl chloride (PVC)
Connector contacts plating Gold
AWG wire size 28
Product colour White
Connector 2 gender Male
Connector 1 gender Male
Connector 2 VGA (D-Sub)
Connector 1 VGA (D-Sub)
Cable length 3 m
Weight & dimensions
Cable diameter 8 mm
