Vision TC3 USBC socket-outlet White

This module is part of Vision's Techconnect connectivity faceplate family. It allows technology users to use just one USB-C cable to connect their laptop to the AV faceplate.

USB-C supports both video and USB, but it doesn't work reliably over long cables, so this module takes that USB-C signal and splits out the USB and HDMI.

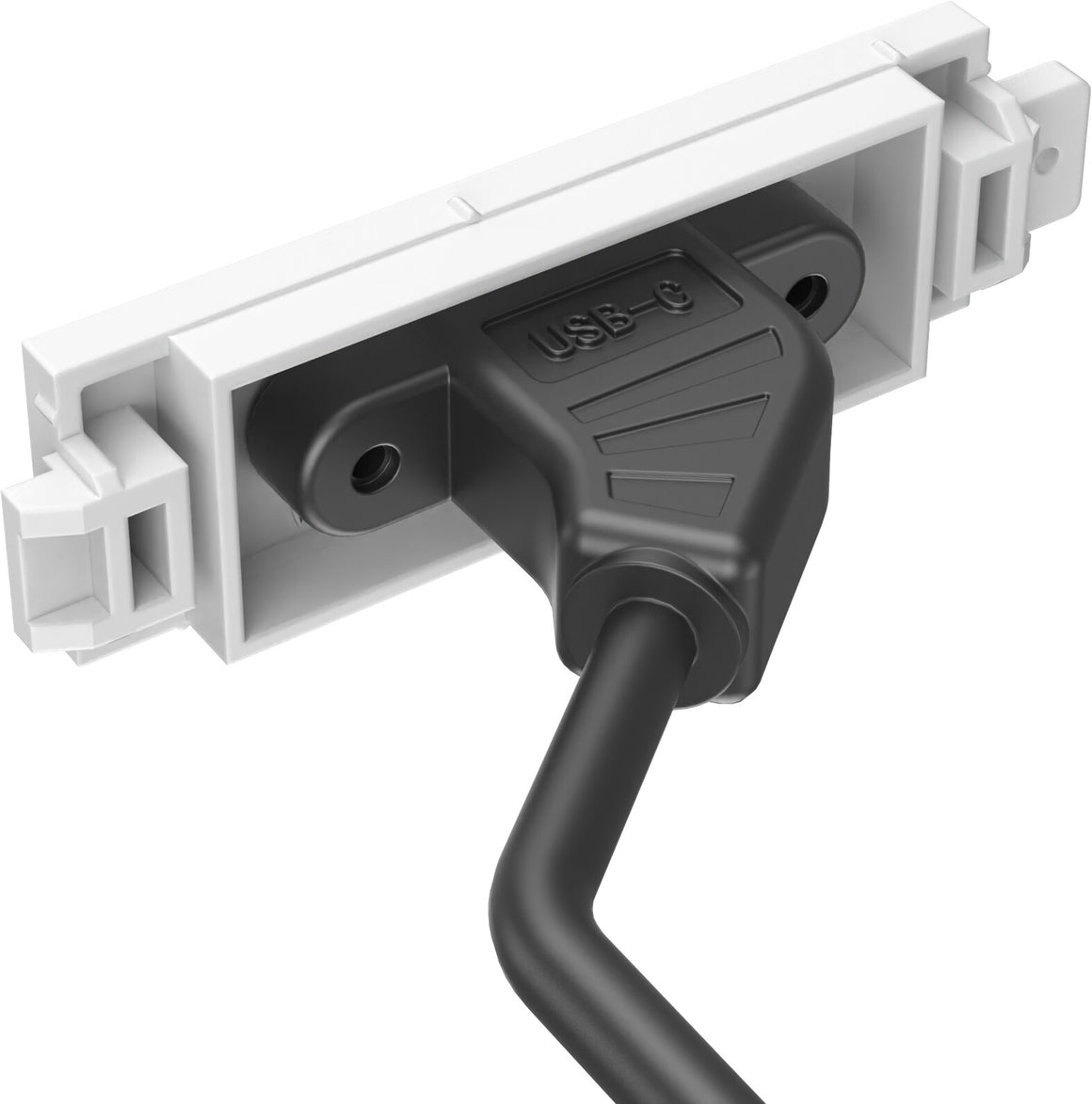

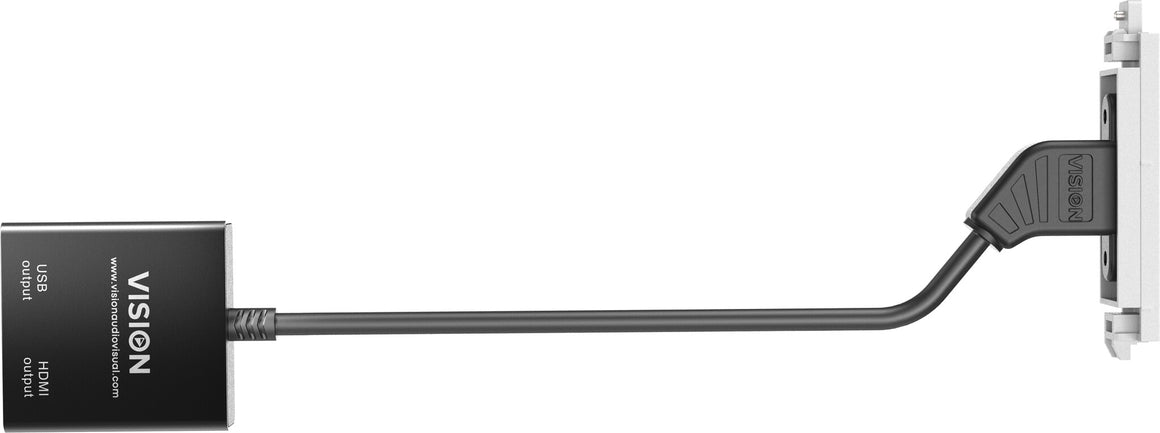

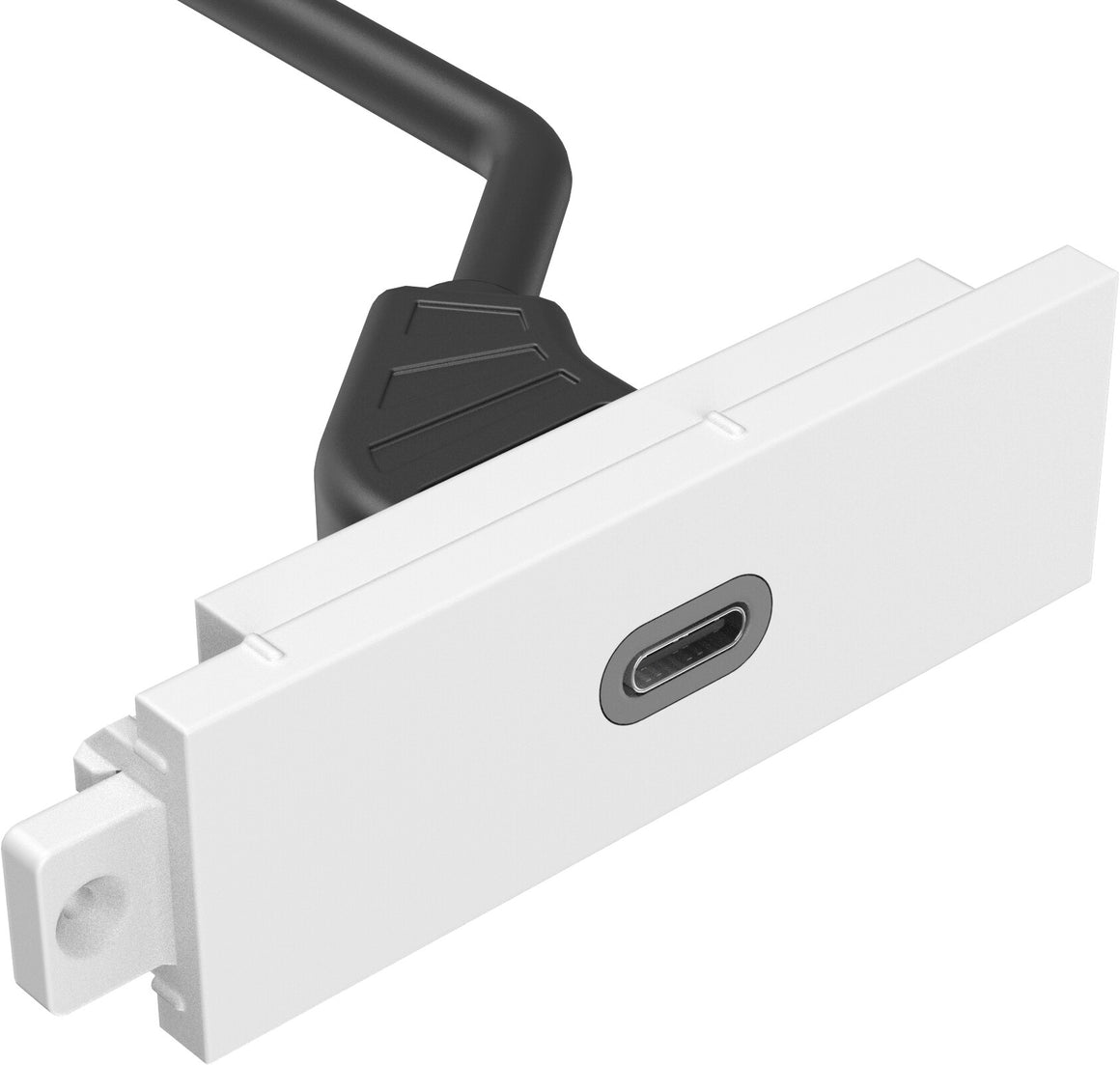

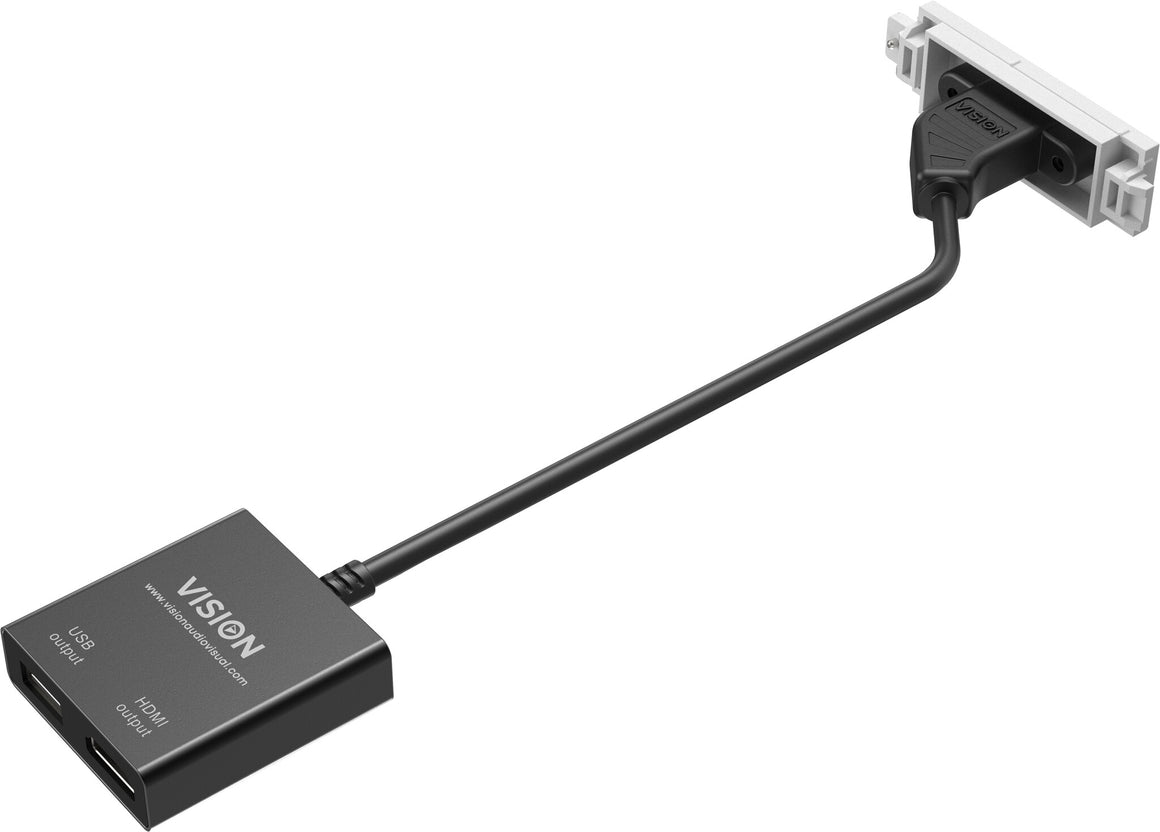

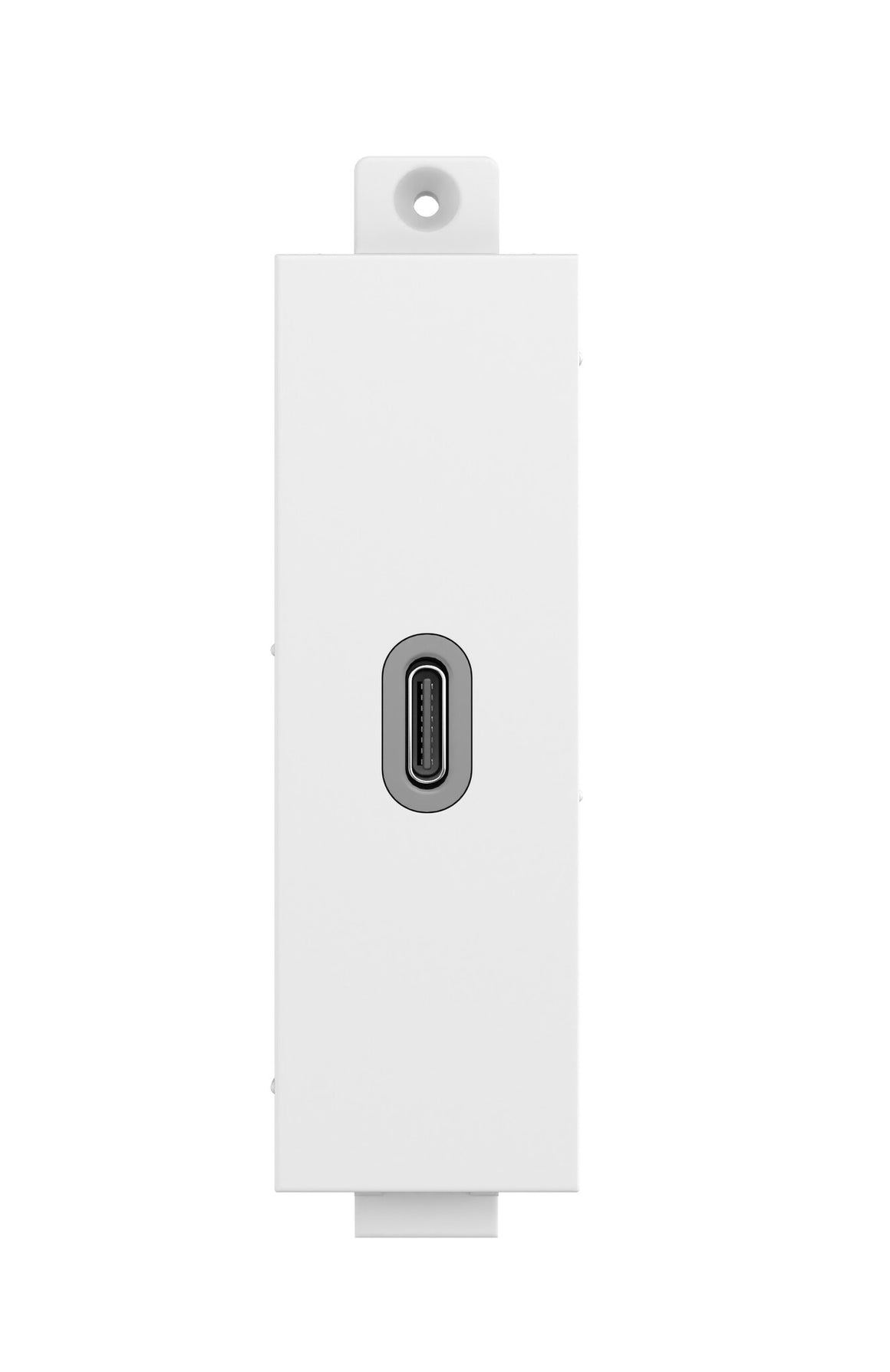

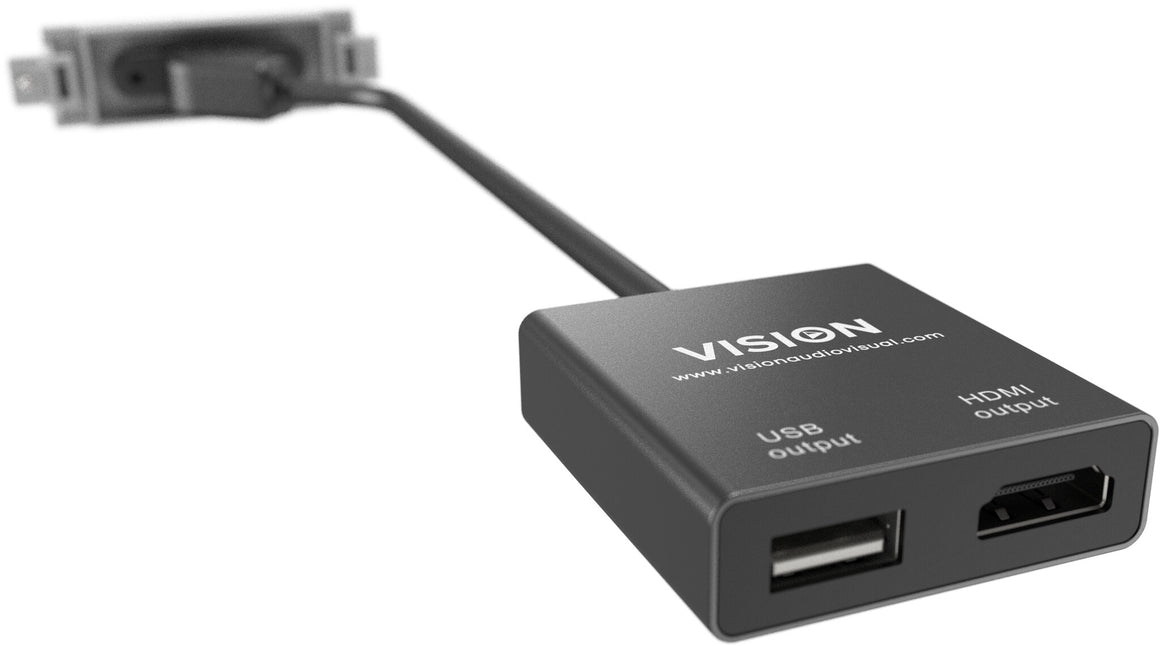

On the front is a USB-C port, and on the rear it has a tail with an HDMI socket, and a USB 2.0 socket. The active circuit separates the display and USB signals so that longer cables up to 15m (50 ft) can be used to reach an interactive display.

Please note that this product does not support charging laptops or phones connected to the USB-C port. It is designed for other functionalities and does not offer power delivery capabilities.

4K 60 Hz
Future-proof the installation by using high resolution components. It supports 4K at the full 60Hz with input and output cables no longer than 3m (10ft) dependent on quality of cables. For longer cable runs 30 Hz is supported.

USB 2.0
The USB 2.0 interface on the rear is designed and tested to work with all interactive displays and projectors.

Fixes to Surround
Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.

Future-proof
If you break a module or need to change it in the future, just replace that part - not the entire faceplate.

Flexible
Get to site and the client changes what they want on their AV faceplate? No problem.

Proven
For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.
