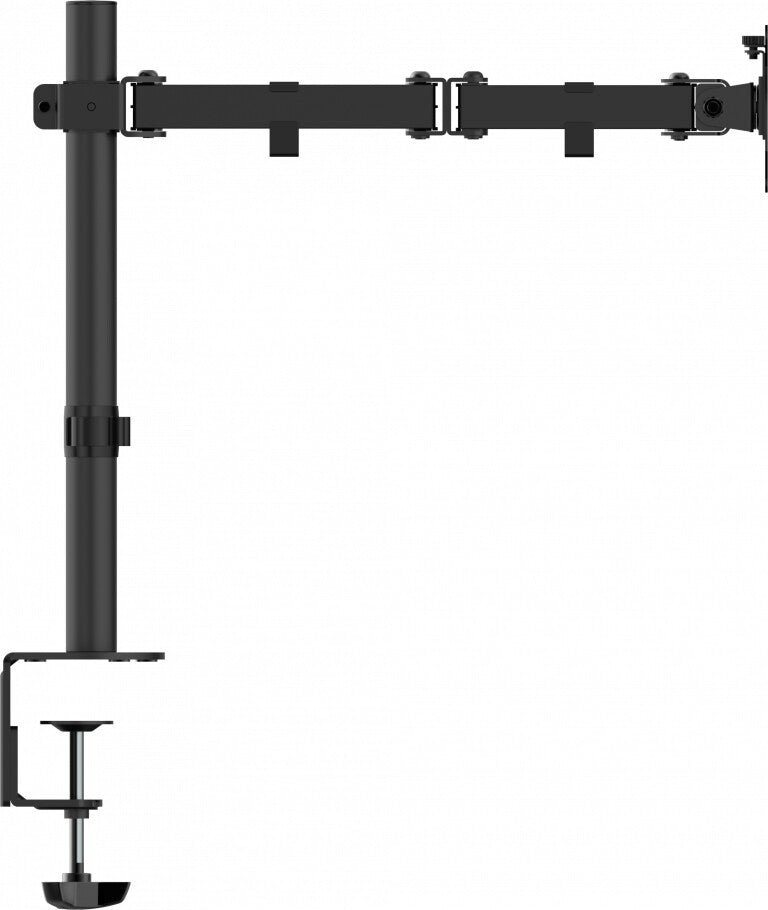

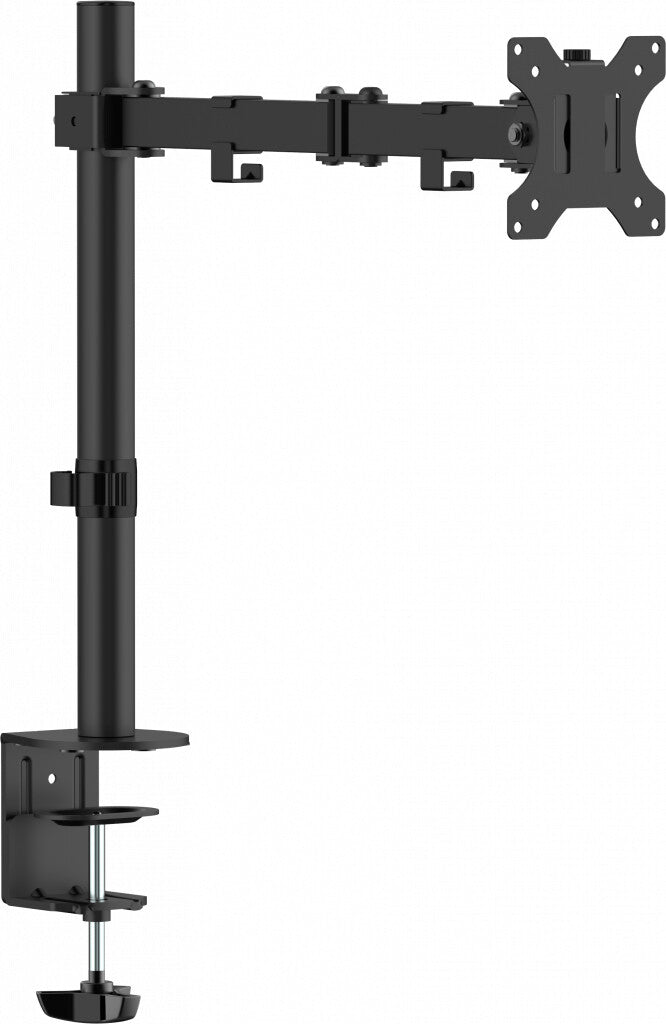

The VFM-DP2 (Vision Flat-panel Mount – Desk Post) offers a massive range of movement and fits any monitor which has 75 x 75 mm or 100 x 100 mm rear mounting holes. Vision have obsessed over the detail to make it as quick and easy to install.
| Mounting |
|---|
| Desk thickness (max) |
8.8 cm |
| Desk thickness (min) |
1 cm |
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp |
| Mounting type |
Desk |
| Maximum screen size |
81.3 cm (32") |
| Minimum screen size |
33 cm (13") |
| Maximum weight capacity |
8 kg |
| Ergonomics |
|---|
| Cable management |
Yes |
| Number of pivot points |
2 |
| Pivot angle |
0 - 90° |
| Swivel angle range |
-90 - 90° |
| Swivel angle |
180° |
| Tilt angle range |
-45 - 45° |
| Height adjustment |
Yes |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
2.9 kg |
| Height |
548 mm |
| Depth |
114 mm |
| Width |
520 mm |
| Packaging data |
|---|
| Package weight |
3.74 kg |
| Package height |
120 mm |
| Package depth |
180 mm |
| Package width |
489 mm |
| Packaging content |
|---|
| Screws included |
Yes |
| Clamp included |
Yes |
| Other features |
|---|
| Certification |
REACH |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
