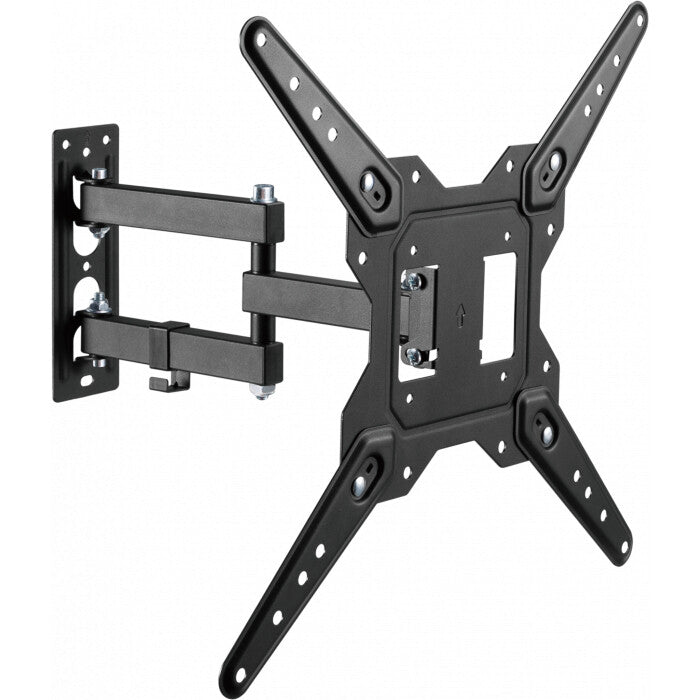

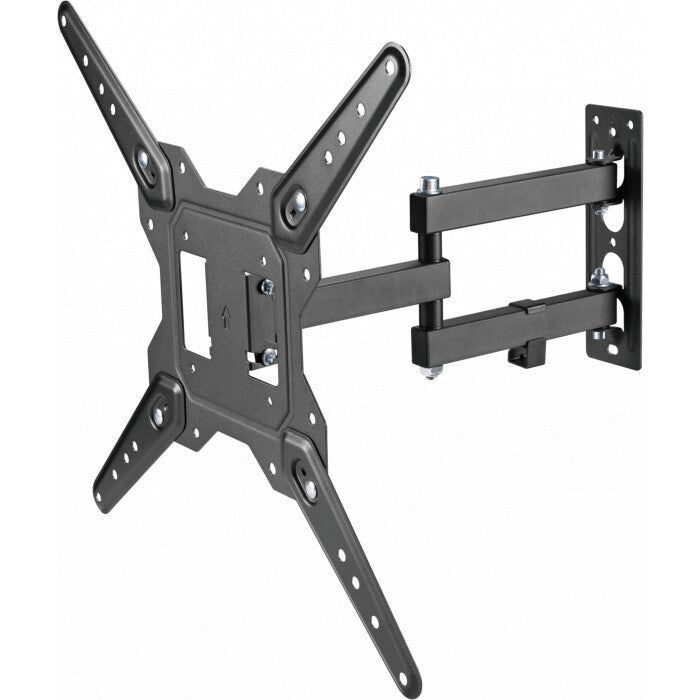

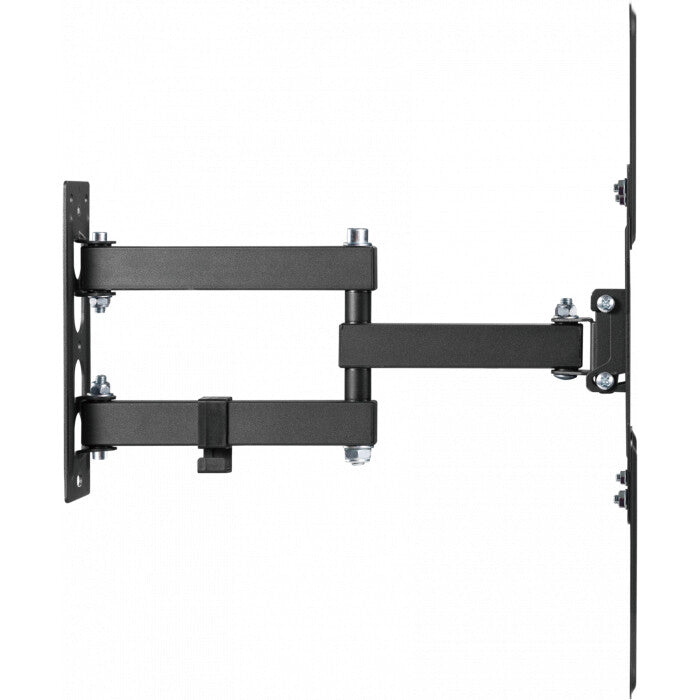

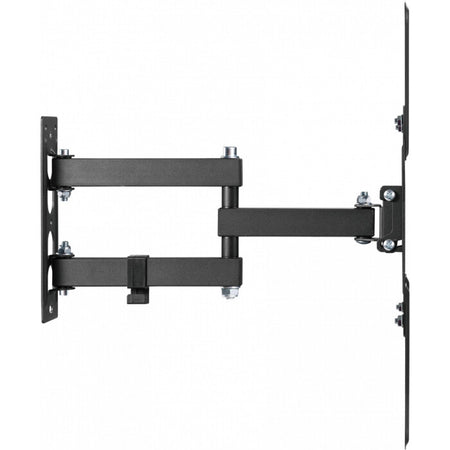

Vision’s Vision Flat-Panel Mount – Wall Arm range is tough and flexible. The VFM-WA4X4/3 fits any flat-panel LCD or LED screen which has rear mounting holes up to 400 x 400 mm apart.
| Mounting |
|---|
| Distance to the wall (min) |
3.9 cm |
| Extension arm (max) |
40.2 cm |
| Number of displays supported |
1 |
| Panel mounting interface |
100 x 100,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300 |
| Maximum VESA mount |
400 x 400 mm |
| Minimum VESA mount |
100 x 100 mm |
| Mounting |
Screws |
| Mounting type |
Wall |
| Maximum screen size |
152.4 cm (60") |
| Minimum screen size |
94 cm (37") |
| Maximum weight capacity |
20 kg |
| Ergonomics |
|---|
| Swivel angle |
90° |
| Tilt angle range |
-2 - 12° |
| Tilt adjustment |
Yes |
| Height adjustment |
No |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
3 kg |
| Height |
430 mm |
| Width |
430 mm |
| Packaging data |
|---|
| Package weight |
3.5 kg |
| Package height |
60 mm |
| Package depth |
290 mm |
| Package width |
342 mm |
| Quantity per pack |
1 pc(s) |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Other features |
|---|
| Certification |
ISO 9001:2015 |
| Compliance certificates |
REACH, RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
