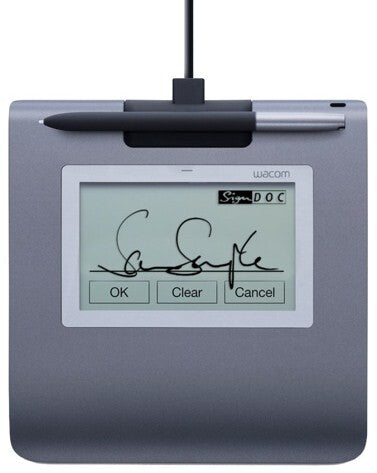

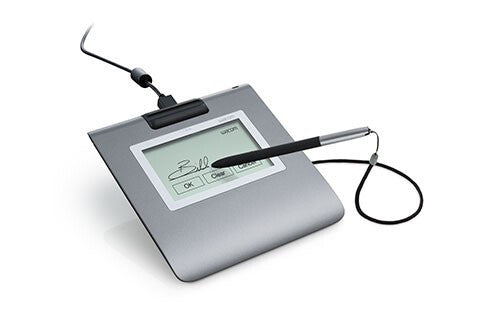

The STU-430 is a small and robust, extremely durable signature pad. Its 4.5’’ monochrome screen is large enough to capture longer signatures as well as to accommodate soft buttons in addition to the
signature area. The transflective LCD can easily be read in varying light conditions. A hardened glass surface protects the LCD screen and is highly resistant to scratches. The integrated pen compartment doubles as a USB cable lock to prevent accidental disconnection of the cable.
Both signature pads feature a new thin design and a low profile, flat surface. The new design reflects the market requirements for modern, robust, ergonomic and reliable signature pads. They are equipped with Wacom’s patented maintenance-free EMR technology, delivering 1024 pressure levels. For security, an AES 256 bit / RSA 2048 bit data encryption is embedded in the signature pads. Each unit is assigned a unique hardware ID in order to determine the exact unit that was used to capture a particular signature.
| Tablet |
| Tablet input type |
Pen |
| Device interface |
USB |
| Working area |
96 x 60 mm |
| Resolution |
2540 lpi |
| Connectivity technology |
Wired |
| Pen |
| Pen report rate (points per second) |
200 |
| Battery-free pen |
Yes |
| Pressure levels |
1024 |
| Wireless pen |
No |
| Pen included |
Yes |
| Display |
| Pixel pitch |
0.3 x 0.3 mm |
| Display number of colours |
Monochrome |
| Aspect ratio |
16:10 |
| Display |
LCD |
| Display diagonal |
11.4 cm (4.5") |
| Ports & interfaces |
| USB 2.0 ports quantity |
1 |
| Cable length |
3 m |
| Features |
| Mac operating systems supported |
Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported |
Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home x64, Windows XP Professional x64 |
| Product colour |
Black, Grey |
| System requirements |
| USB required |
Yes |
| Power |
| USB powered |
Yes |
| Power consumption (typical) |
1 W |
| Weight & dimensions |
| Pen weight |
7 g |
| Pen dimensions LxD |
140.5 x 9 mm |
| Tablet weight |
279 g |
| Height |
10.8 mm |
| Depth |
174.4 mm |
| Width |
161.4 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
USB |
| Other features |
| Integrated pen storage cavity |
Yes |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
