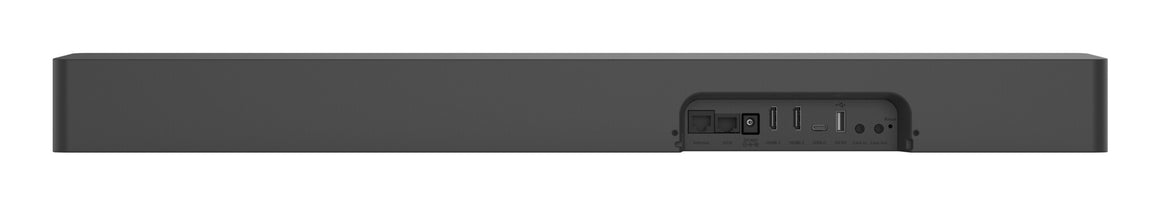

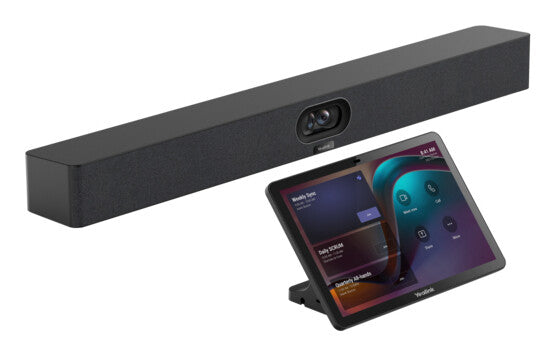

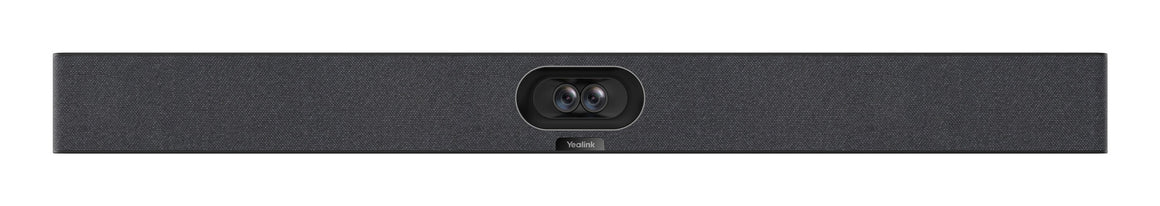

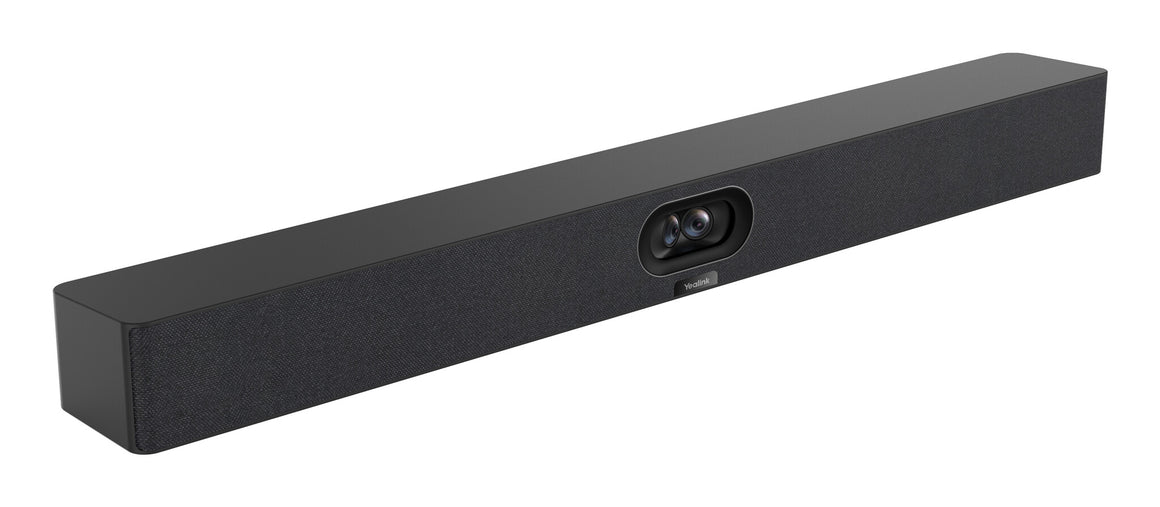

MeetingBar A40 is a next-generation all-in-one video bar that leverages industry-leading AI to enhance video and audio experience in daily hybrid meetings. It offers easy deployment and use, making it ideal for premium small and medium-sized meeting rooms. The One Cable Solution maximizes simplicity in two ways. A single Cat5e cable from the bar provides power and network connectivity to the touch console, automatically synchronizing the Teams account. Additionally, a single USB-C cable on the desk enables 4K sharing, General Mode, and PD charging.
| Performance |
|---|
| Signal-to-Noise Ratio (SNR) |
63 dB |
| Product colour |
Black |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Product type |
Group video conferencing system |
| Video |
|---|
| Aspect ratio |
16:9 |
| Maximum frame rate |
60 fps |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes |
1080p, 2160p |
| Total megapixels |
48 MP |
| Maximum video resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Audio |
|---|
| RMS rated power |
20 W |
| Frequency range |
80 - 18000 Hz |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
|---|
| Line-in |
Yes |
| Line-out |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| HDMI ports quantity |
2 |
| Network |
|---|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Camera |
|---|
| Aperture range (F-F) |
2.2 - 2.4 |
| Camera shutter speed |
0.01 - 0.033 s |
| Minimum illumination |
0.1 lx |
| Number of camera presets |
9 |
| Focus adjustment |
Auto |
| Diagonal field of view |
120° |
| Vertical field of view |
54° |
| Horizontal field of view |
110° |
| Digital zoom |
6x |
| Zoom capability |
Yes |
| Camera type |
Dual camera |
| Megapixel (approx.) |
48 MP |
| Display |
|---|
| Anti-glare screen |
Yes |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display brightness |
3520 cd/m² |
| Touchscreen type |
Capacitive |
| Touchscreen |
Yes |
| Contrast ratio (typical) |
1000:1 |
| Display resolution |
1280 x 800 pixels |
| Display diagonal |
25.6 cm (10.1") |
| Display |
IPS |
| Microphone |
|---|
| Number of microphone arrays |
8 |
| Sound pressure level (max) |
130 dB |
| Microphone frequency |
100 - 20000 Hz |
| Microphone sensitivity |
-38 dB |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Weight |
5.54 kg |
| Height |
80 mm |
| Depth |
62 mm |
| Width |
650 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
