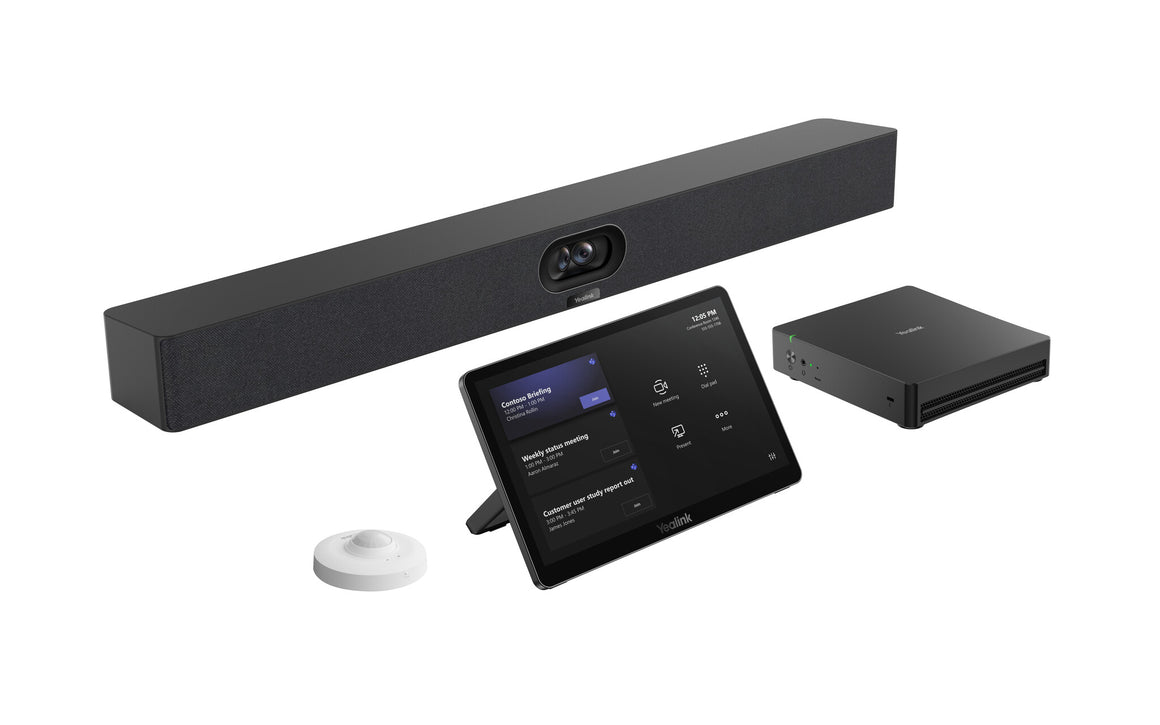

Designed for medium to large meeting rooms, MVC S40 is a bundle solution with all-in-one video bar SmartVision 40, mini-PC MCore 4 and touch panel MTouch Plus. It features advanced AI features powered by unrivalled dual 48MP lens system and future-proof computing power, supporting easy deployment & flexible design.
| Performance |
|---|
| Meeting features |
Content sharing |
| Product colour |
Black, Grey |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Number of cameras |
2 |
| Product type |
Group video conferencing system |
| Video |
|---|
| Streaming capability |
Yes |
| Maximum frame rate |
30 fps |
| Supported video modes |
1080p, 2160p |
| Total megapixels |
45 MP |
| Maximum video resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Audio |
|---|
| Noise reduction |
Yes |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Memory |
|---|
| Total storage capacity |
256 GB |
| Storage media type |
SSD |
| Internal memory |
16000 MB |
| Internal memory type |
DDR5 |
| Ports & interfaces |
|---|
| Reset slot |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI output ports quantity |
3 |
| HDMI input ports quantity |
1 |
| Interface module |
|---|
| Interface module DC input port |
Yes |
| Interface module RJ-45 ports quantity |
2 |
| Interface module HDMI output ports quantity |
3 |
| Interface module HDMI input ports quantity |
1 |
| Network |
|---|
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Camera |
|---|
| Horizontal field of view |
111° |
| Field of view (FOV) angle |
120° |
| Digital zoom |
6x |
| Second camera resolution |
48 MP |
| Camera type |
Dual camera |
| Megapixel (approx.) |
48 MP |
| Display |
|---|
| Touchscreen |
Yes |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
29.5 cm (11.6") |
| Display |
IPS |
| Built-in display |
Yes |
| Microphone |
|---|
| Number of microphone arrays |
8 |
| Computer system |
|---|
| Applications supported |
Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings, Yeallink RoomConnect |
| Processor family |
Intel Core Ultra 5 |
| Computer system type |
Mini PC |
| Features |
|---|
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Cable lock slot |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Interface module dimensions (W x D x H) |
188 x 188 x 47.5 mm |
| Packaging content |
|---|
| Camera included |
Yes |
| External interface module included |
Yes |
