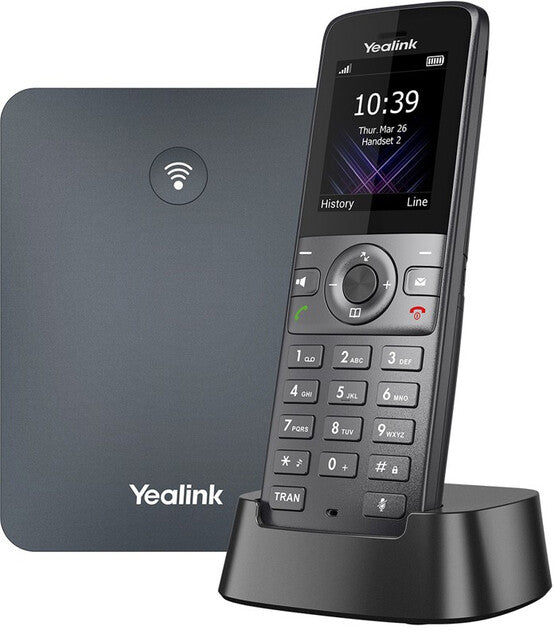

High-performance and Scalable for Productive Communication
Supporting registration with up to 10 Yealink W74H DECT handsets, the W74P system is launched with robust processing capacity for up to 10 SIP accounts
and 20 silmultaneous calls. More flexibility and mobility could be enabled through up to 6 optional repeaters for extended network coverage.
Clarity and Stability for Premium Mobile Communication
Yealink new W74P embraces upgraded hardware, sophisticated acoustic algorithms, noise cancellation technology and enhanced signal strength, providing the flexible workforces with a high-quality mobile communication environment. Even in complex surroundings,users can have hassle-free conversations through the noise-free conditions and larger volume.
| Design |
|---|
| Mounting |
Desk/Wall |
| Wall mountable |
Yes |
| Backlight keypad |
Yes |
| Product colour |
Grey |
| Handset type |
Wireless handset |
| Product type |
IP mobile phone |
| Performance |
|---|
| Maximum outdoor range |
300 m |
| Maximum indoor range |
50 m |
| DECT connectable |
Yes |
| Phone features |
|---|
| Caller ID |
Yes |
| Phonebook capacity |
1000 entries |
| Emergency call |
Yes |
| Number of VoIP accounts |
10 |
| Anonymous call rejection |
Yes |
| SIP registrar server |
Yes |
| Vibrating alert |
Yes |
| Anonymous call |
Yes |
| Call waiting |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Message-waiting indicator (MWI) |
Yes |
| Full duplex |
Yes |
| Call transfer |
Yes |
| Call history |
Yes |
| Management features |
|---|
| Number of function keys |
6 |
| Keypad number of keys |
25 |
| Display |
|---|
| Backlight display |
Yes |
| Touchscreen |
No |
| Display resolution |
128 x 160 pixels |
| Display diagonal |
4.57 cm (1.8") |
| Display |
TFT |
| Audio |
|---|
| Noise reduction |
Yes |
| Microphone mute |
Yes |
| Speakerphone |
Yes |
| Network |
|---|
| Security algorithms |
SRTP, TLS |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Headset connectivity |
3.5 mm |
| Power |
|---|
| Standby time |
320 h |
| Talk time |
24 h |
| AC adapter output voltage |
5 V |
| AC adapter input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-30 - 70 °C |
| Weight & dimensions |
|---|
| Base dimensions (WxDxH) |
130 x 100 x 25.1 mm |
| Handset dimensions (WxDxH) |
144.5 x 48 x 21 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Base station |
Yes |
| Ethernet cable |
Yes |
| Handset |
Yes |
| Quick start guide |
Yes |
| Charger |
Yes |
| Number of handles included |
1 pc(s) |
| Mounting kit |
Yes |
