Cordless DECT IP Multi-Cell System

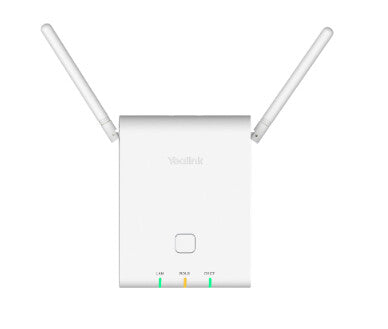

The Yealink W90 DECT IP Multi-Cell System, consisting of two elements - a base station W90B and a DECT Manager W90DM, is designed to provide the organizations who require wireless coverage with the full ease of deployment. This DECT multi-cell system intends to create an extremely scalable and reliable solution for the organizations of any size and any shape. The system supports up to 250 handsets and 250 simultaneous calls, which ensures one call in each handset, and allows you to get rid of the limited wireless signal coverage of only one base station. Meanwhile, the system can work with Yealink W53H, W56H, W59R, CP930W, and DD Phone with seamless roaming and handover of the calls, making freely mobile communication in and between each zone achievable. Both W90B and W90DM join the modern, compact design with Yealink HD voice quality, which is wrapped with the full-duplex technology Opus, that setting free your ears and giving you an elaborate audio experience.
Seamless Stability
The Yealink W90 DECT IP Multi-Cell System brings seamless stability. The rotatable external antennas ensure further signal range, industry-leading coverage, and flexible steering for complex areas, which truly saves amount and cost of bases in deployment with industry-leading coverage. Moreover, the Lan Sync guarantees stable roaming even in poor signal transmission environment or strong signal interference like warehouses with overcrowded cargos or several iron gates.
Easy Deployment
The Yealink W90 DECT IP Multi-Cell System provides easier and faster setup for users: the DECT Deployment Toolkit for quick base location, IP discovery tool for quickly getting IP of DM, and auto sync level for self-organizing network without manual operation. Instead of complex steps, it takes less time from deployment to daily management for large system.
Wide Coverage
Available for 1DM, 60 bases, 250 handsets and 250 parallel calls, the Yealink W90 DECT IP Multi-Cell System is tailored for large space and multi-locations & bases, delivering unified communicating solution especially for warehouses, hospitals, hotels, supermarkets chains, cruises, authorized car dealerships, offices, retail formats, etc. Virtual machines and more bases will be supported in the future, boarding the coverage once more.
Full Scenarios
The Yealink W90 DECT IP Multi-Cell System supports various devices: W53H, W56H, W59R, CP930W, DD Phone, which definitely matches different employee roles and full scenes communicating demand from mobile, desk to conference with flexible scalability.
Multiple Phone Books
The Yealink W90 DECT IP Multi-Cell System offers easy access to multiple phone books, including Local Directory, Remote Phonebook, LDAP, and XML Phonebook. Additionally, it is broadly compatible with PBX contacts.
| Performance |
|---|
| Keypad lock |
Yes |
| XML browser |
Yes |
| IPUI registration |
Yes |
| User access level |
Yes |
| Auto-provision |
Yes |
| Over the Air Updates (OTA) |
Yes |
| Dual-Tone Multi-Frequency (DTMF) |
Yes |
| Wireless synchronization |
Yes |
| Hearing aid compatibility |
Yes |
| Security algorithms |
AES, HTTPS, SHA-384, SHA-512, SRTP, TLS |
| Number of bases supported (max) |
60 |
| Supported network protocols |
SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS |
| Management protocols |
TFTP/FTP/HTTP/HTTPS/RPS |
| Number of VoIP accounts |
250 |
| Number of carrier frequencies |
2 |
| Number of handsets supported (max) |
250 |
| Call management |
|---|
| System log export |
Yes |
| Emergency call |
Yes |
| Shared Call Appearance (SCA) |
Yes |
| Call history |
Yes |
| Reset function |
Yes |
| Phonebook search/import/export function |
Yes |
| Message Waiting Indication (MWI) function |
Yes |
| Redialing |
Yes |
| Integrated voicemail |
Yes |
| Speed dialling |
Yes |
| Switching between calls |
Yes |
| Mute function |
Yes |
| Do not disturb function |
Yes |
| Call hold |
Yes |
| Call transfer |
Yes |
| Remote phonebook |
Yes |
| Call forwarding |
Yes |
| Caller ID |
Yes |
| Call waiting |
Yes |
| Anonymous call rejection |
Yes |
| Anonymous call |
Yes |
| Number of simultaneous calls per handset |
2 |
| Number of WB calls per base supported (max) |
8 |
| Number of NB calls per base supported (max) |
8 |
| Number of simultaneous calls (max) |
100 |
| Phonebook capacity (per handset) |
100 entries |
| Number of parallel conferences |
3 |
| Conference call |
Yes |
| Antenna |
|---|
| Maximum indoor range |
50 m |
| Maximum outdoor range |
300 m |
| Frequency range (US) |
1920 - 1930 MHz |
| Frequency range (EU) |
1880 - 1900 MHz |
| Ports & interfaces |
|---|
| Ethernet LAN data rate supported (max) |
100 Mbit/s |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
|---|
| LED indicators |
Yes |
| Wall mountable |
Yes |
| Full duplex |
Yes |
| Product colour |
White |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Output voltage |
5 V |
| Output current |
1.2 A |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Package weight |
3.4 kg |
| Package height |
63 mm |
| Package depth |
203 mm |
| Package width |
158 mm |
| Weight |
2.8 kg |
| Dimensions (WxDxH) |
134 x 100 x 28 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85177900 |
