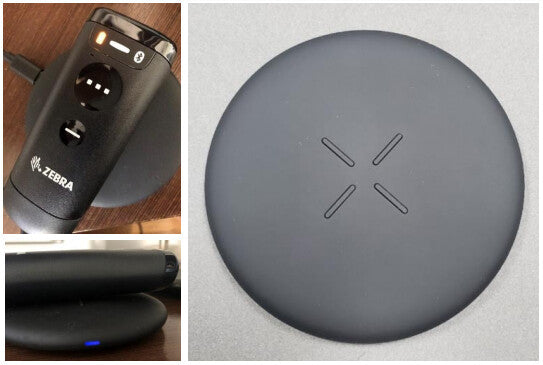

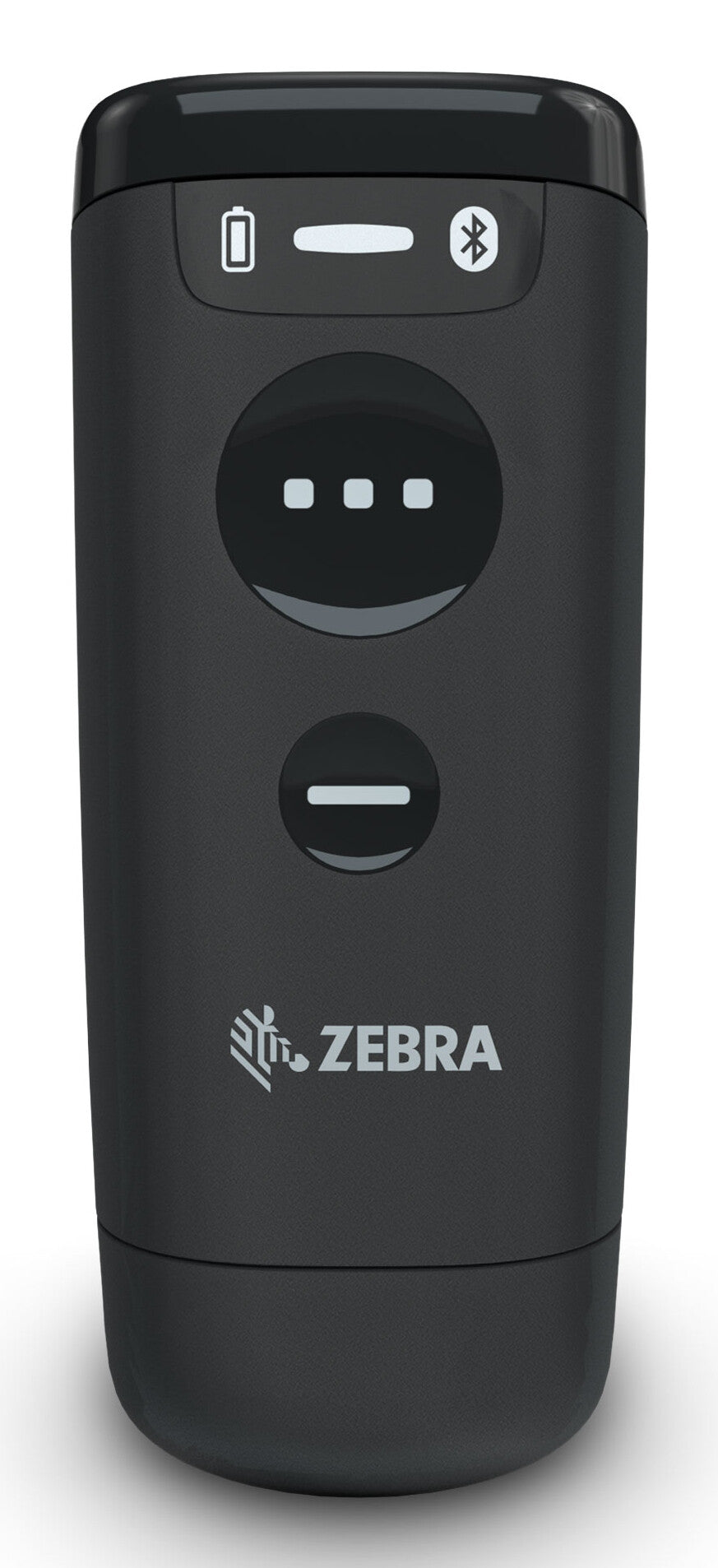

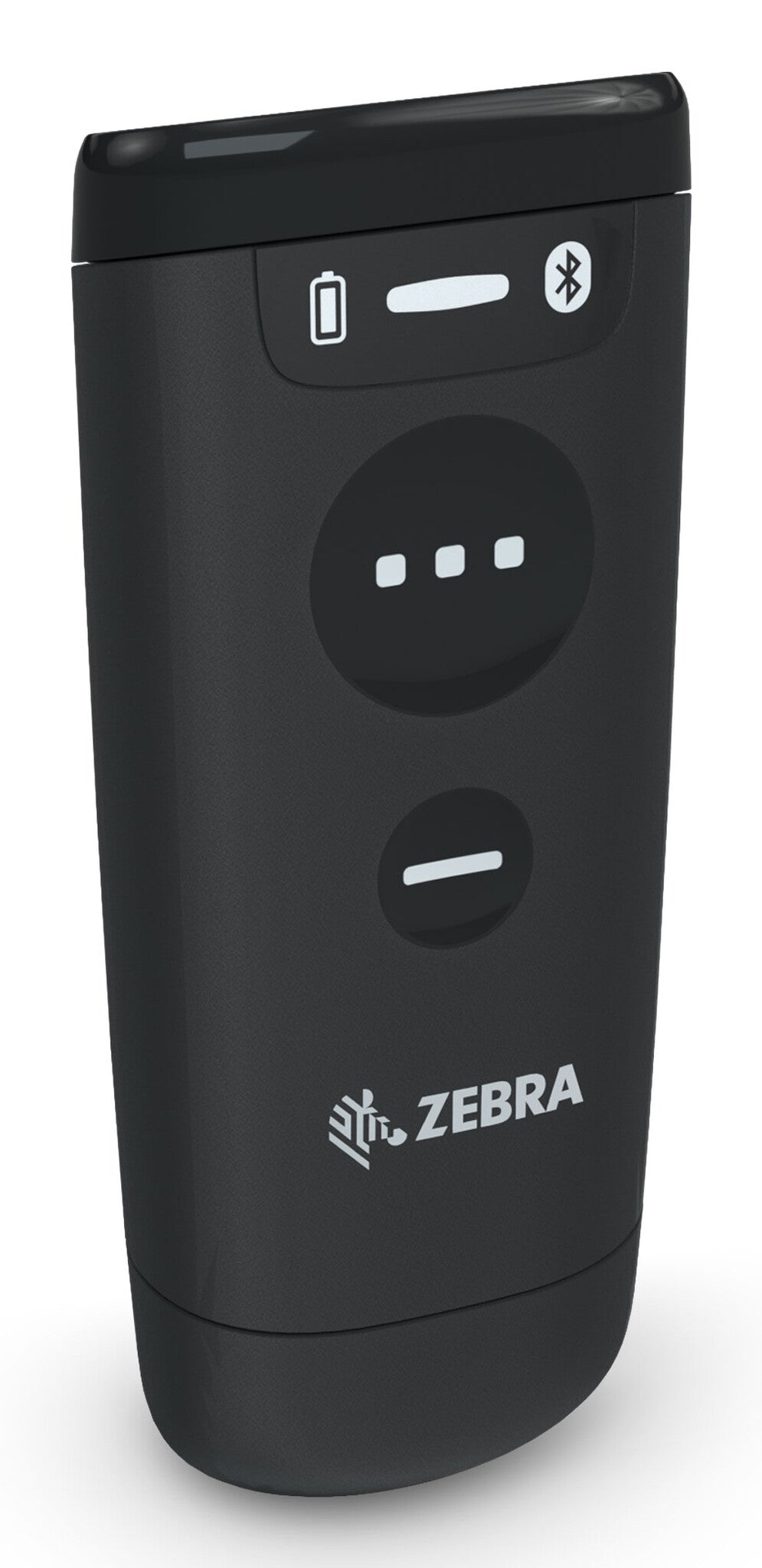

The ultra-versatile CS60 Companion scanner adapts to any workflow. As a cordless scanner, it is small enough to tuck in a pocket and offers the latest mobile technology including contactless charging. As a corded scanner, it provides compact scanning for the checkout counter, self-service kiosk and more.
| Scanning |
|---|
| Yaw reading angle |
-60 - 60° |
| Pitch reading angle |
-60 - 60° |
| Tilt reading angle |
0 - 360° |
| Light levels (direct sunlight) |
0 - 108000 lx |
| Vertical field of view |
34° |
| Horizontal field of view |
45° |
| Optical sensor resolution (W x H) |
1280 x 960 pixels |
| Sensor type |
LED |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1 |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
5.0 |
| Wireless range |
100 m |
| Standard interfaces |
Bluetooth |
| Connectivity technology |
Wireless |
| Performance |
|---|
| Vibration function |
Yes |
| Ambient lighting |
Yes |
| Buzzer |
Yes |
| LED indicators |
Yes |
| International Protection (IP) code |
IP65 |
| Product colour |
Black |
| Power |
|---|
| Charging time |
3 h |
| Battery life |
18 h |
| Number of reads per charge |
13000 |
| Battery capacity |
745 mAh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power source type |
Battery |
| Weight & dimensions |
|---|
| Weight |
83 g |
| Height |
9 mm |
| Depth |
43 mm |
| Width |
18 mm |
| Packaging data |
|---|
| Charging base |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Drop resistance |
1.8 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Warranty period |
3 year(s) |
| Compliance certificates |
Mfi, REACH, RoHS, Trade Agreements Act (TAA) |
