AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

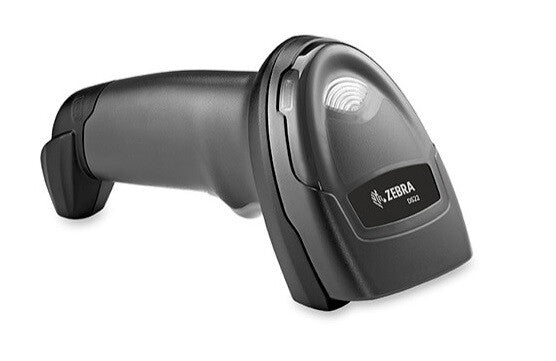

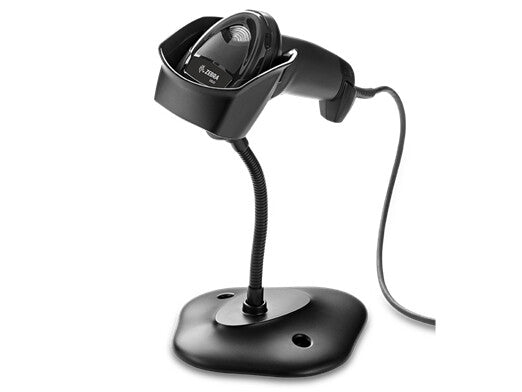

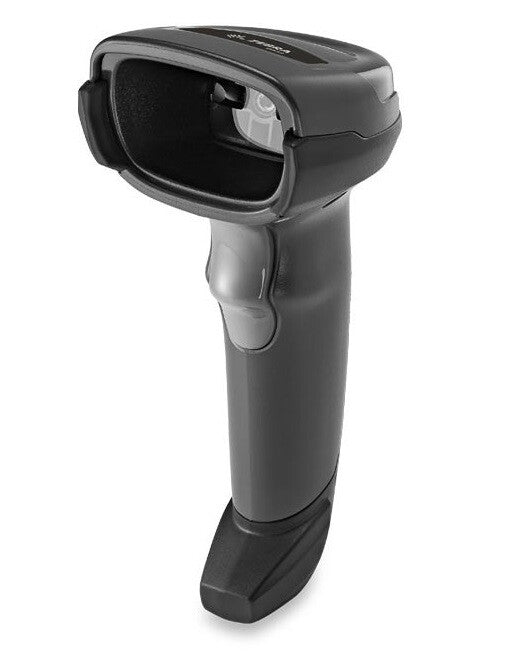

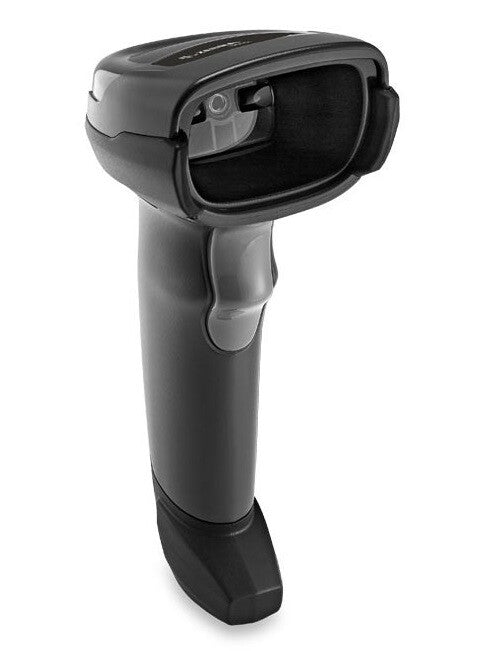

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Scanning |
Motion tolerance (cm/s) |
13 |
Yaw reading angle |
-65 - 65° |
Pitch reading angle |
-65 - 65° |
Tilt reading angle |
-65 - 65° |
Wavelength |
645 nm |
Working distance |
36.8 cm |
Optical sensor resolution (W x H) |
640 x 480 pixels |
Sensor type |
LED |
Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. |
2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39 |
Scanner type |
1D/2D |
Type |
Handheld bar code reader |
Ports & interfaces |
Standard interfaces |
USB, RS-232, RS-485, Keyboard wedge |
Connectivity technology |
Wired |
Performance |
Certification |
EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07IEC 62471EN 55022 (Class B); EN 55032 (Class B)EN 55024EN 61000-3-2EN 61000-3-347 CFR Part 15, Subpart B, Class BICES-003 Issue 6, Class B |
LED indicators |
Yes |
International Protection (IP) code |
IP42 |
Product colour |
Black |
Power |
Power consumption |
250 mA |
AC adapter output voltage |
5 V |
Battery life |
100 h |
Battery capacity |
2400 mAh |
Battery technology |
Lithium-Ion (Li-Ion) |
Power source type |
DC |
Weight & dimensions |
Weight |
161.6 g |
Height |
165 mm |
Depth |
99 mm |
Width |
66 mm |
Packaging data |
Cables included |
Micro-USB |
Charging base |
No |
Operational conditions |
Operating temperature (T-T) |
0 - 50 °C |
Storage temperature (T-T) |
-40 - 70 °C |
Operating relative humidity (H-H) |
5 - 95% |
Technical details |
Compliance certificates |
RoHS |
Logistics data |
Harmonized System (HS) code |
84716070 |
