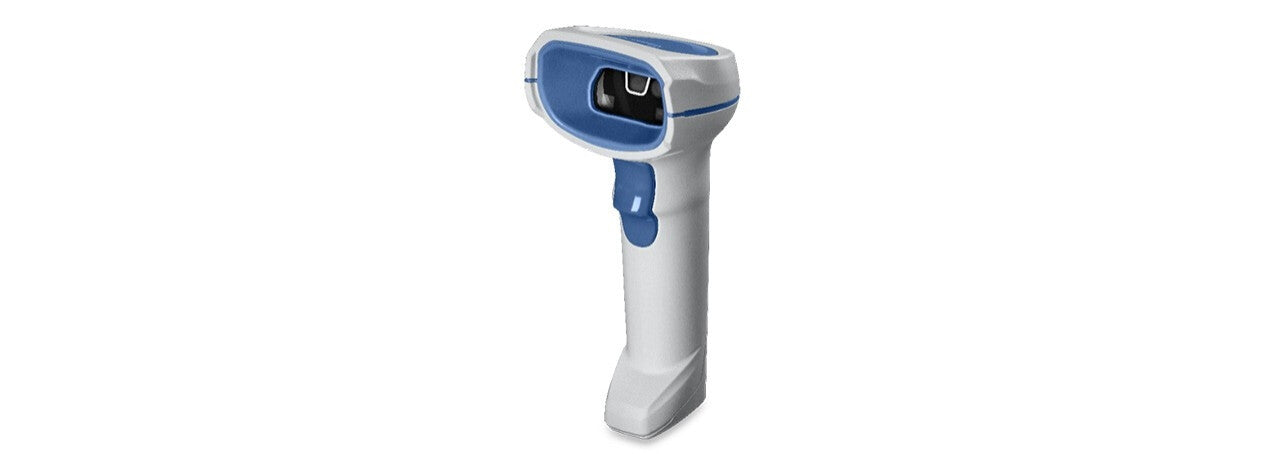

DS8178-HC FIPS DESK/WALL CRADLE USB KIT: DS8178-HCMF00BVMWW SCANNER, CBA-U21-S07ZBR SHIELDED USB CABLE, CR8178-SC100FBWW CRADLE
| Scanning |
|---|
| Yaw reading angle |
-60 - 60° |
| Pitch reading angle |
-60 - 60° |
| Tilt reading angle |
0 - 360° |
| Wavelength |
528 nm |
| Sensor type |
LED |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
|---|
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
4.0 |
| Wireless range |
100 m |
| Standard interfaces |
Bluetooth, USB |
| Connectivity technology |
Wireless |
| Performance |
|---|
| International Protection (IP) code |
IP42 |
| Product colour |
White |
| Power |
|---|
| Input voltage |
5 V |
| Battery life |
83 h |
| Number of reads per charge |
65000 |
| Battery capacity |
2500 mAh |
| Number of batteries supported |
1 |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
|---|
| Weight |
235 g |
| Height |
168 mm |
| Depth |
107 mm |
| Width |
66 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
