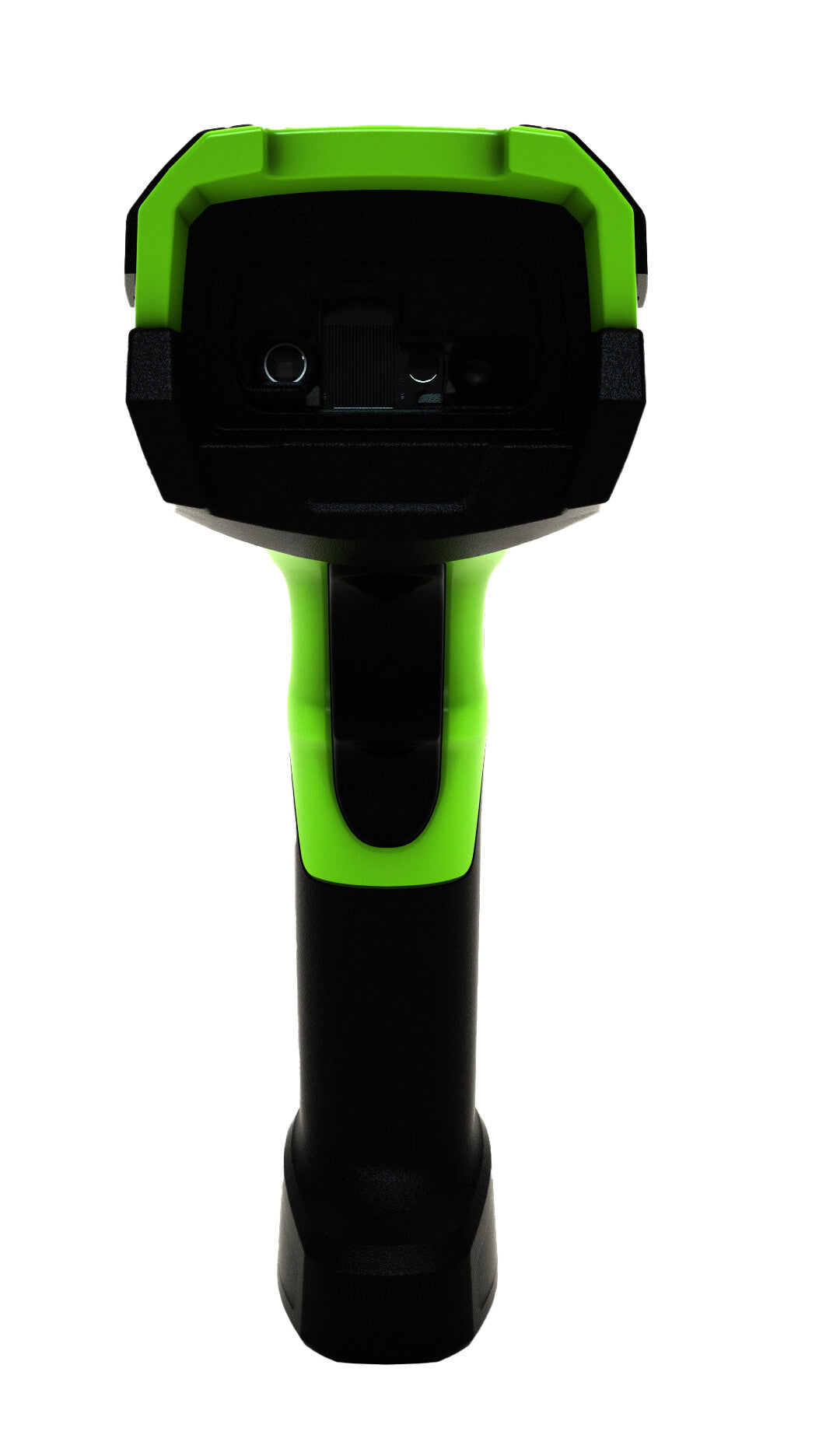

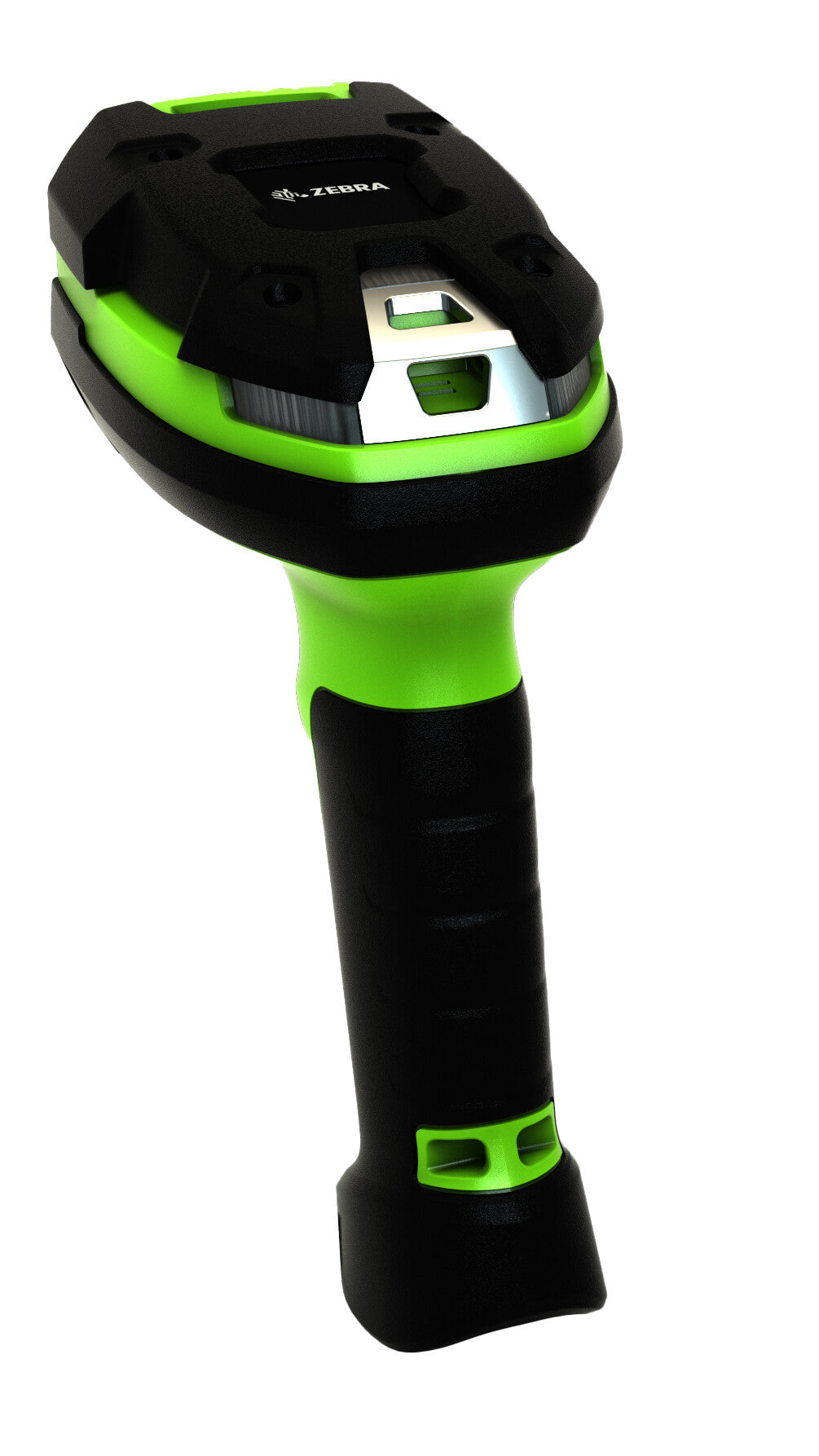

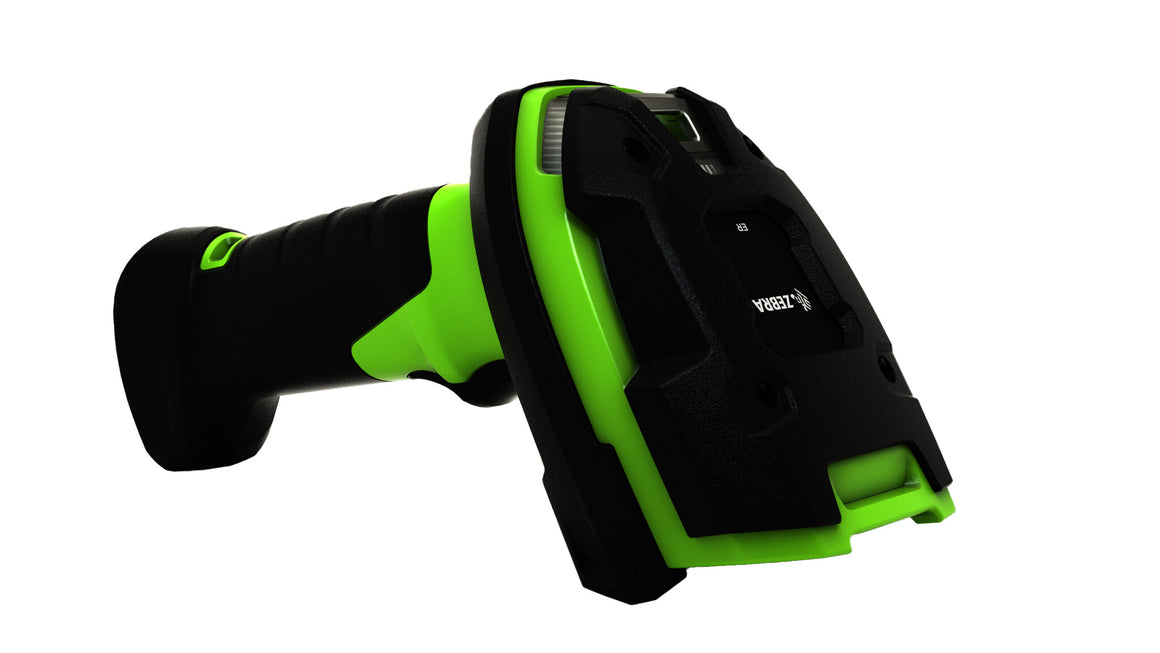

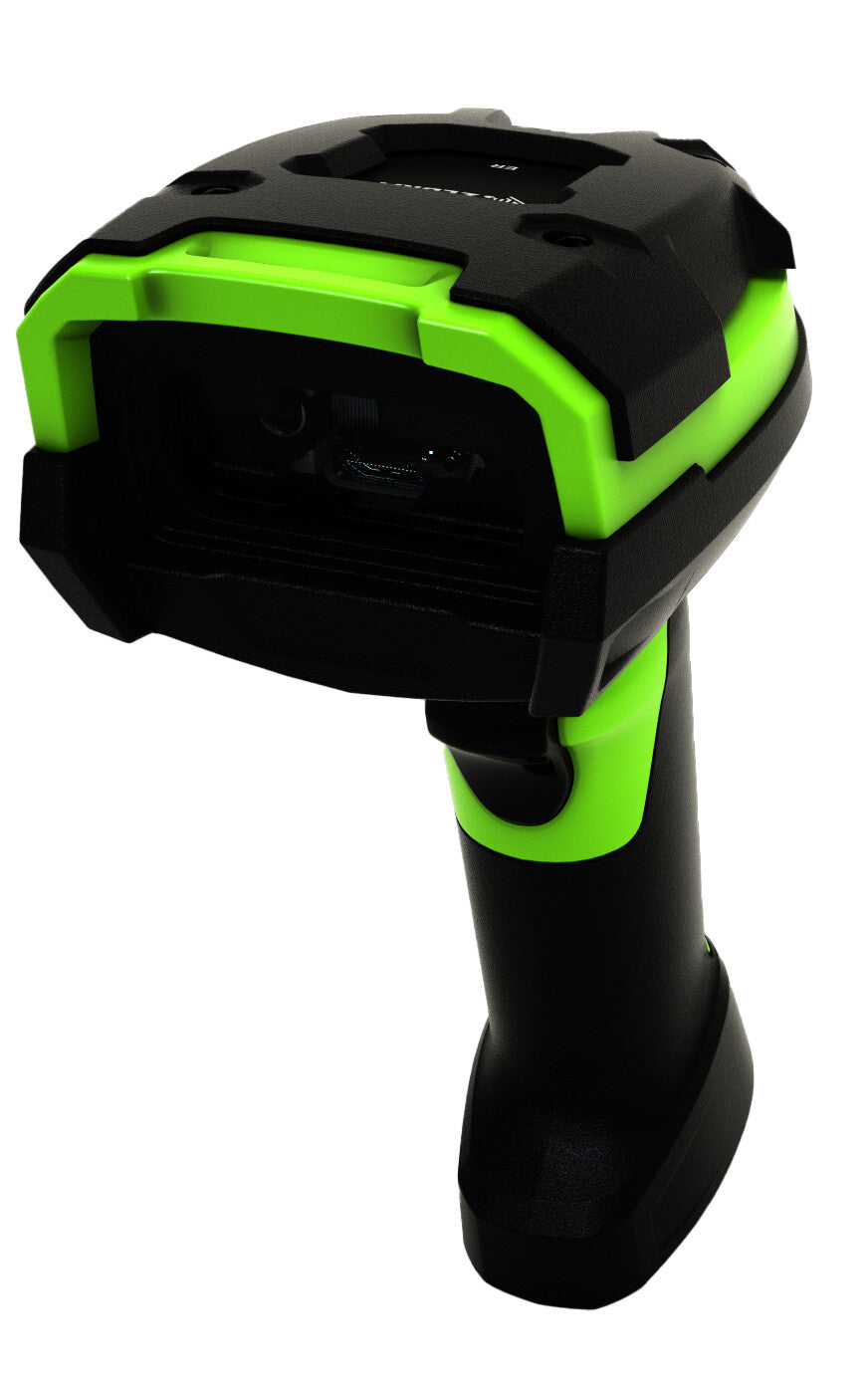

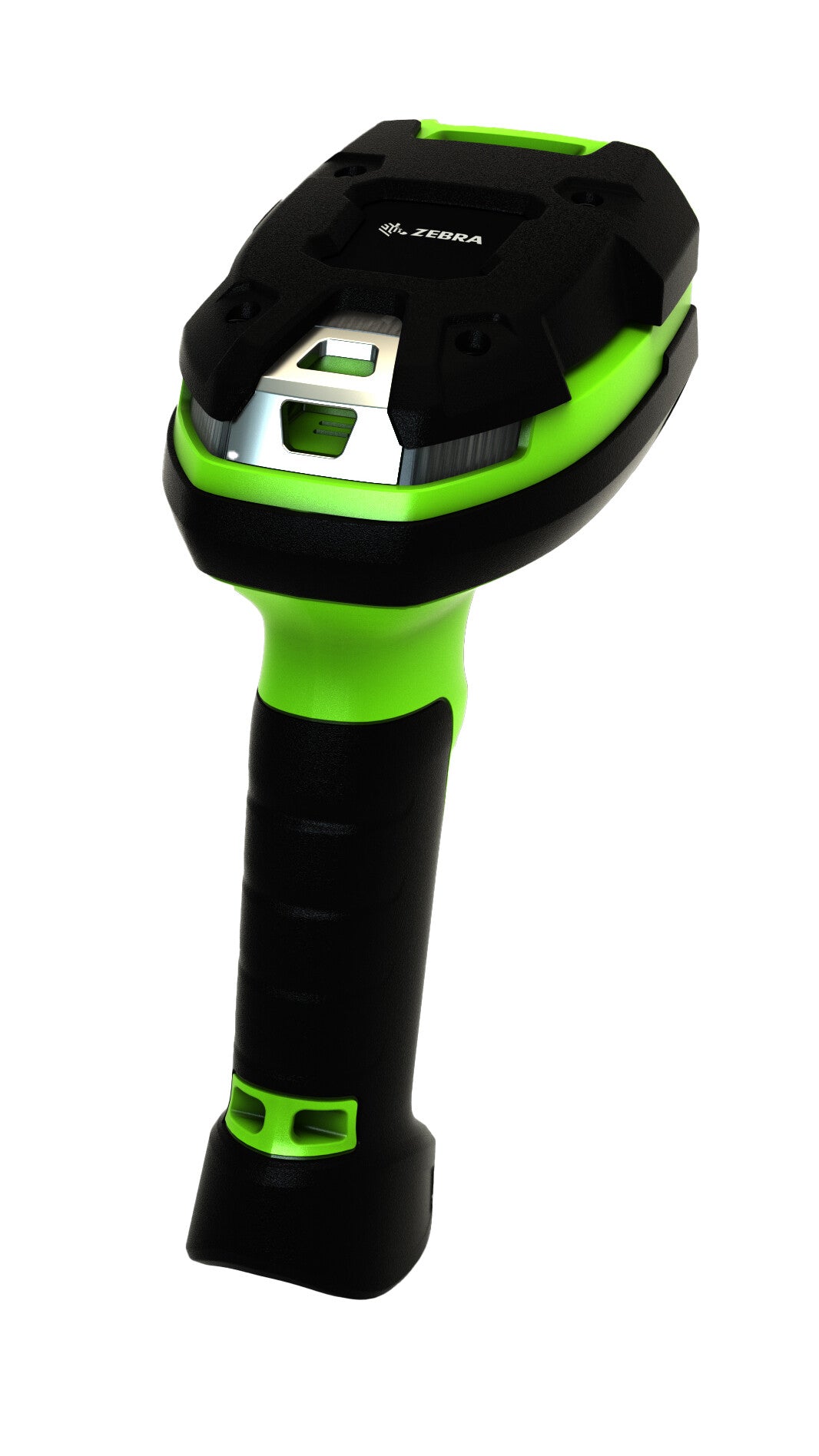

Zebra LI3608-ER Handheld bar code reader 1D Black, Green

SKU: LI3608-ER3U4600ZVW
Regular price £573.85 inc. VAT
  • Handheld bar code reader Black, Green
  • Scanner type: 1D
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C.
  • Working distance: 17.1 m
  • Wired & Wireless Standard interfaces: RS-232, USB, Keyboard wedge
  • Bluetooth Low Energy (BLE)
  • Power source type: Battery Lithium-Ion (Li-Ion) 3100 mAh

Unstoppable performance for extended-range 1D barcode capture
"As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse." Designed to capture virtually any 1D barcode from as close as 2 in./5,1 cm to as far as 56 ft./17,1 m away, these scanners provide the ultimate in versatility — workers can capture codes in hand as well as on the top of your warehouse racks. And these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity to drive throughput, accuracy and customer service to a new level.

In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including the crispest aiming pattern for first-time accurate capture of barcodes on pick lists; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more. And Zebra’s Network Connect for Automation delivers a seamless connection between LI3608-ER/LI3678-ER scanners and your Industrial Ethernet network without additional third party equipment, reducing complexity, and eliminating a point of failure.

Scanning
Optical sensor resolution 2496 pixels
Pitch reading angle -65 - 65°
Wavelength 660 nm
Light levels (direct sunlight) 0 - 107639 lx
Working distance 17.1 m
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported Not supported
Scanner type 1D
Type Handheld bar code reader
Ports & interfaces
Bluetooth Low Energy (BLE) Yes
Bluetooth version 4.0
Wireless range 100 m
Data transfer rate 3 Mbit/s
Standard interfaces RS-232, USB, Keyboard wedge
Connectivity technology Wired & Wireless
Performance
Programming function Yes
LED indicators Yes
Protection features Dust resistant, Water resistant
International Protection (IP) code IP67
Product colour Black, Green
Power
Number of reads per charge 100000
Battery capacity 3100 mAh
Number of batteries supported 1
Battery technology Lithium-Ion (Li-Ion)
Power source type Battery
Weight & dimensions
Weight 327 g
Height 185 mm
Depth 132 mm
Width 76 mm
Packaging data
Cables included No
Operational conditions
Operating temperature (T-T) -30 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
