Enhance Checkout and Improve Your Bottom Line with High-Performance In-Counter and On-Counter Scanning

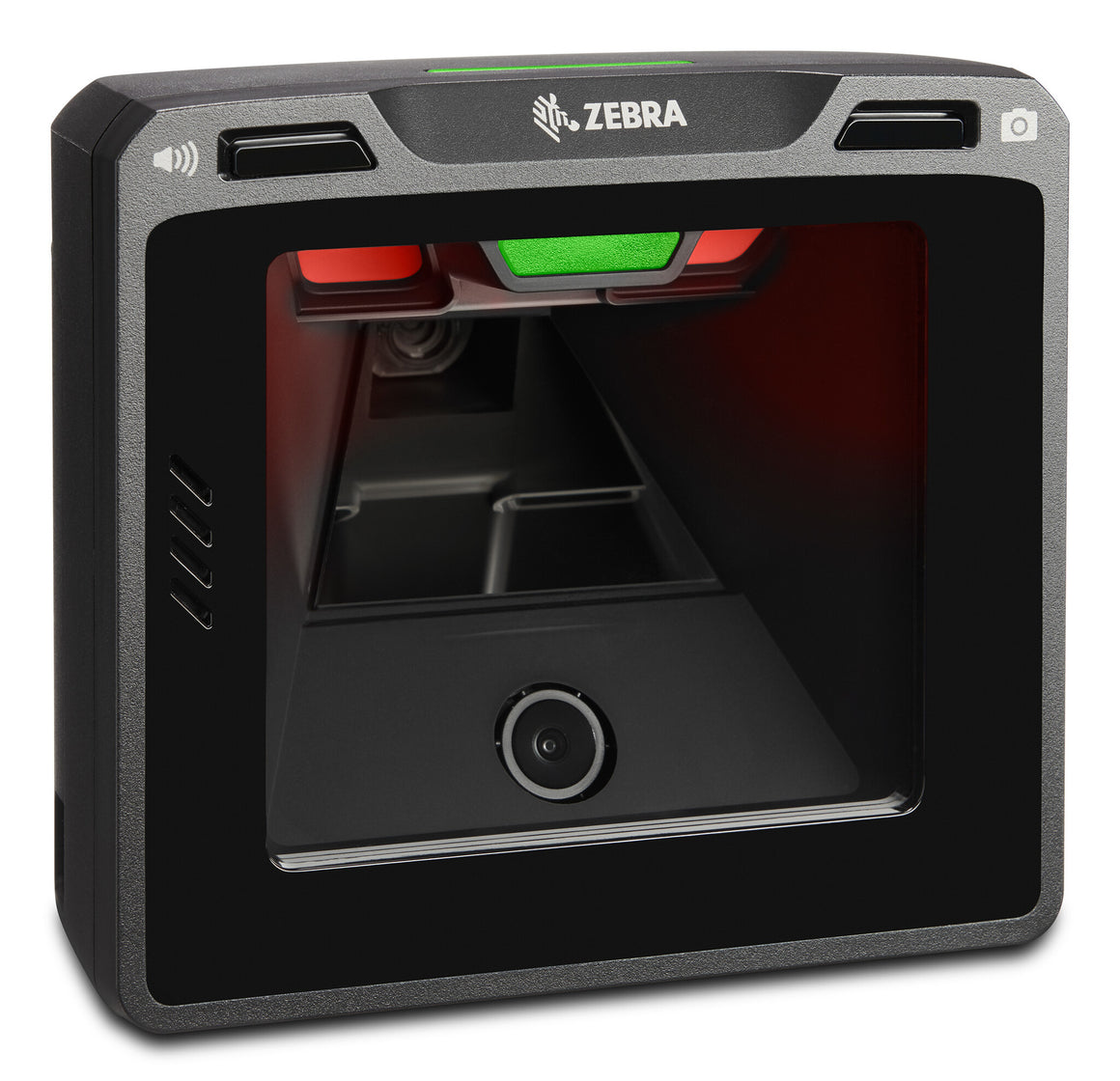

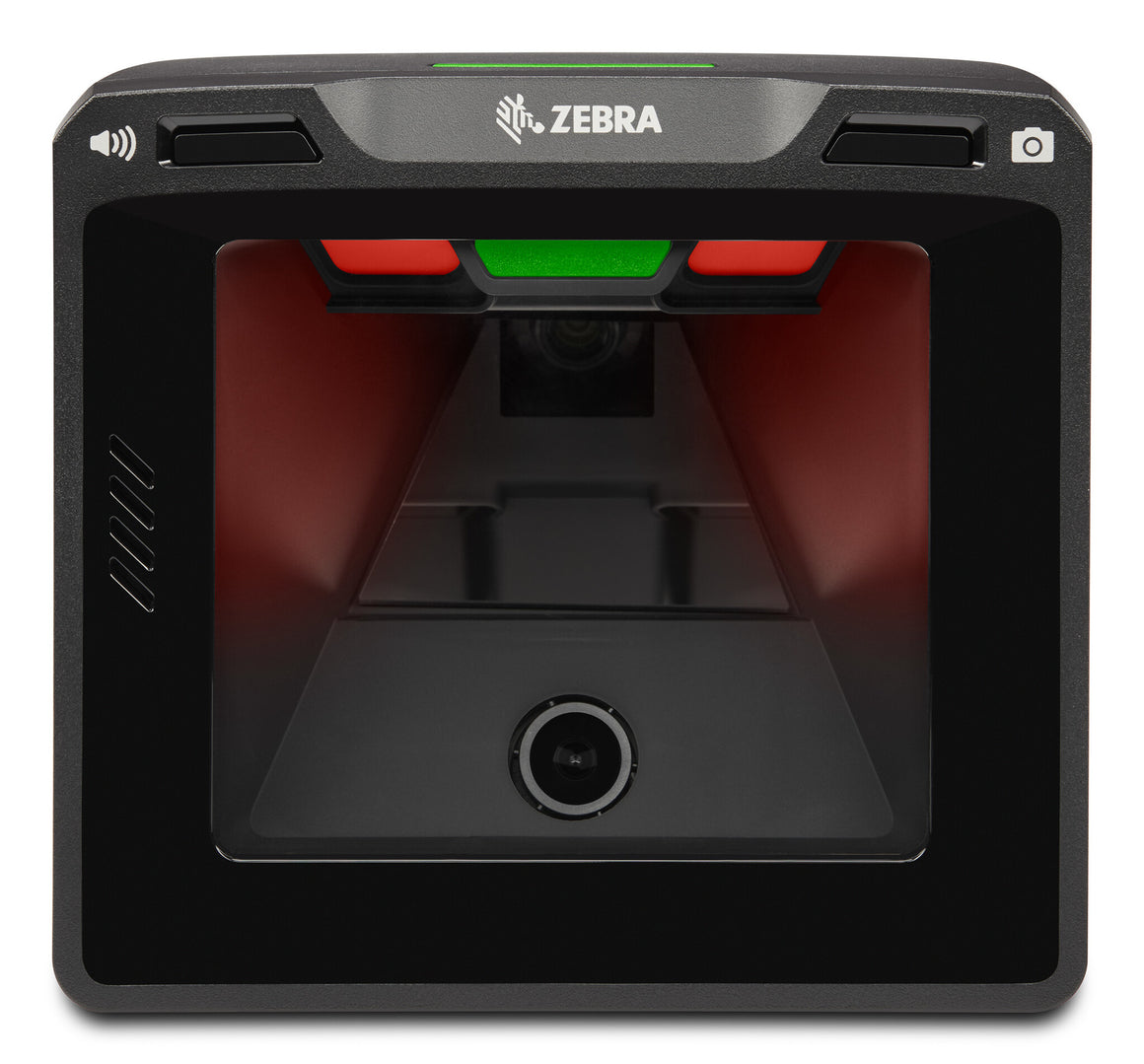

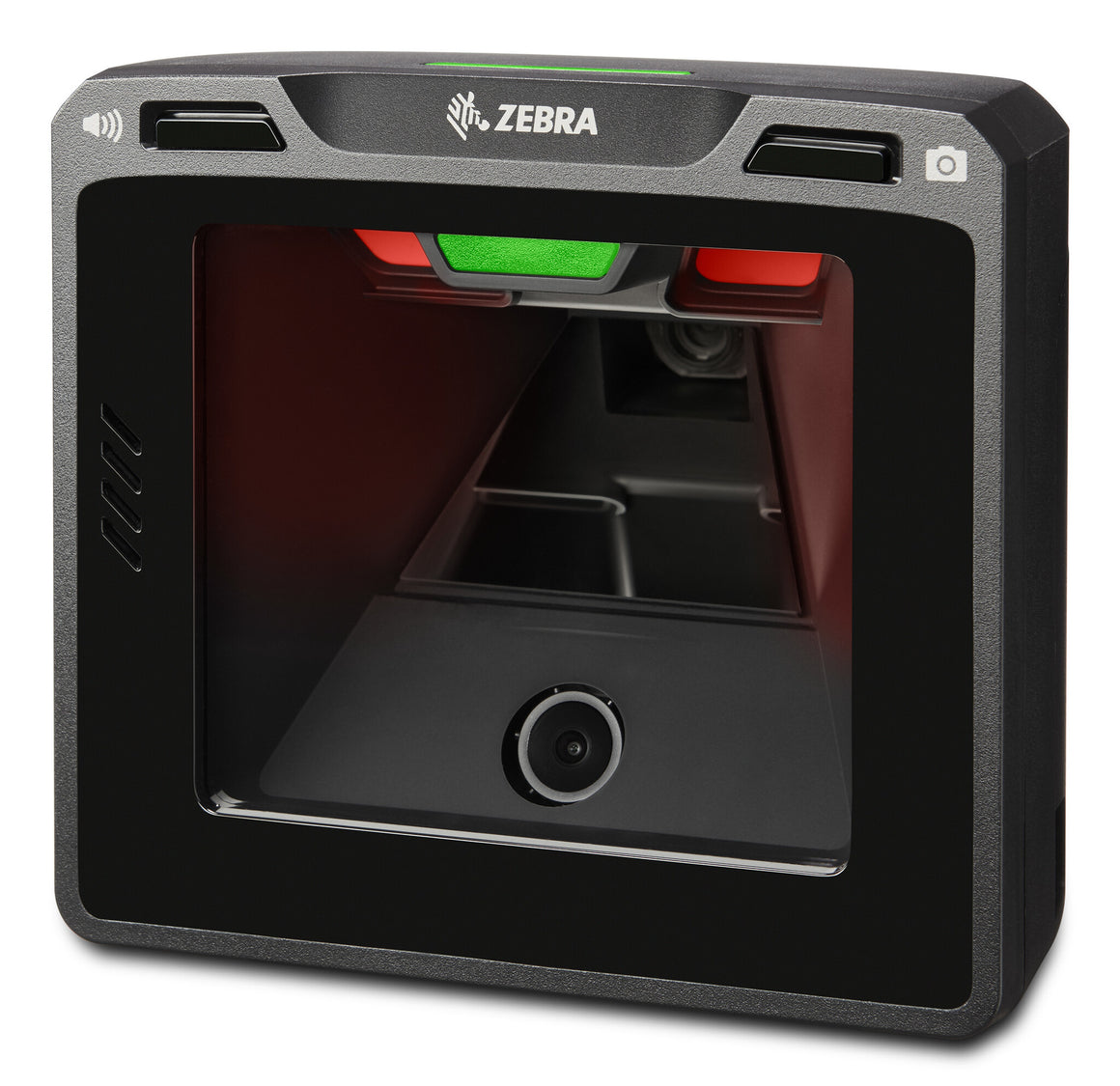

Enhance the customer experience, reduce shrink and offer faster checkout options with the SP72 Series. These high performance single-plane vertical and horizontal scanners deliver everything you need to elevate the checkout experience in grocery, convenience, pharmacy and specialty stores. The SP72 Series optimizes self-checkout solutions with innovative features that facilitate SCO integration and help reduce shrink – making SCO better for your customers, employees and bottom line.
Faster Checkouts for Every Lane
Checkouts are faster than ever for both cashiers and self-checkout users with 'swipe-and-go' high performance scanning. Available in both horizontal and vertical form factors, the SP72 Series fits wherever you need it.
Minimize Shrink at Self-Checkout
Retailers can enjoy all the benefits of self-checkout with less risk thanks to multiple innovations, including an optional color camera that enables vision-based applications which reduce the risk of shrink and fraud at the self-checkout.
Easy Self-Checkout Integration
Integration into your self-checkout has never been easier. The SP72 Series design fits flush into self-checkouts, enables vision-based applications to minimize shrink, and offers multiple on-board interfaces to ensure compatibility with all popular POS systems.
| Scanning |
| Wavelength |
660 nm |
| Light levels (direct sunlight) |
0 - 86100 lx |
| Optical sensor resolution (W x H) |
1920 x 1200 pixels |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, UPC-A |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Scanner type |
1D/2D |
| Type |
Built-in bar code reader |
| Ports & interfaces |
| Standard interfaces |
USB |
| Connectivity technology |
Wired |
| Performance |
| International Protection (IP) code |
IP52 |
| Product colour |
Black |
| Power |
| Input voltage |
5 V |
| Power source type |
DC |
| Weight & dimensions |
| Weight |
577 g |
| Height |
137 mm |
| Depth |
84 mm |
| Width |
152 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
20 - 95% |
