A WRISTBAND PRINTER THAT SPECIALIZES IN HEALTHCARE

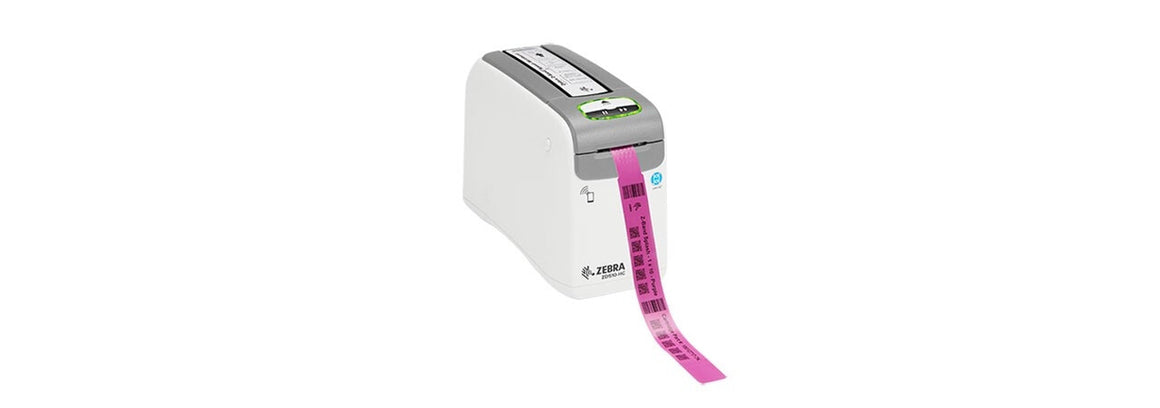

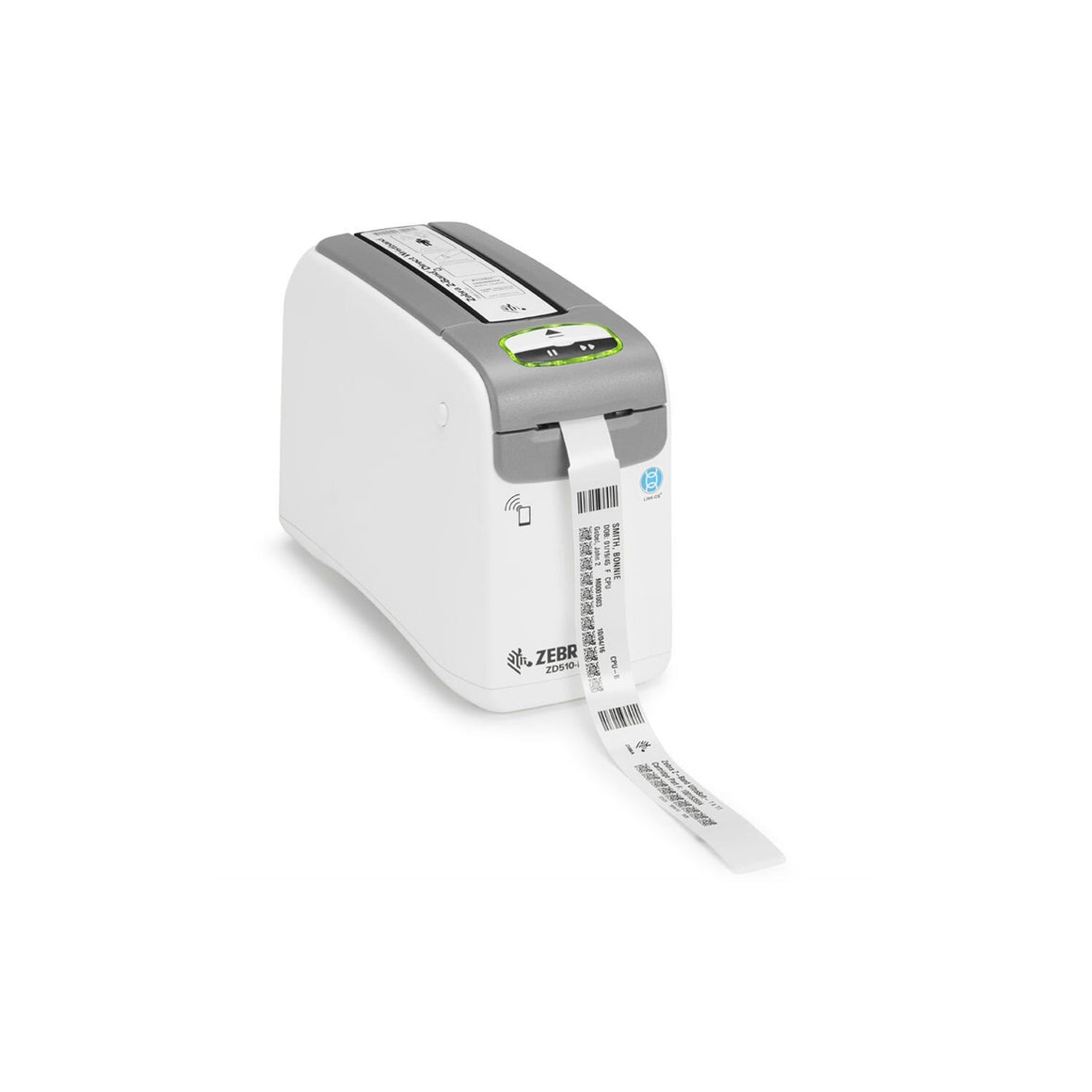

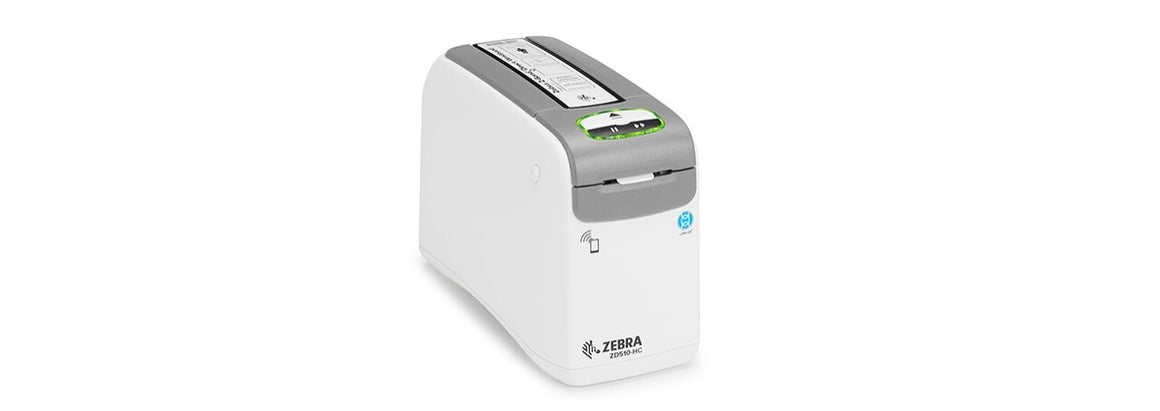

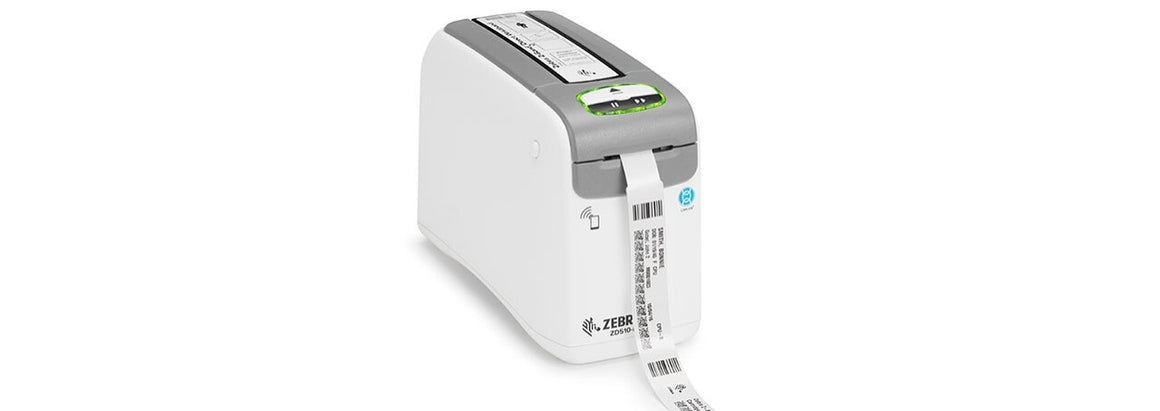

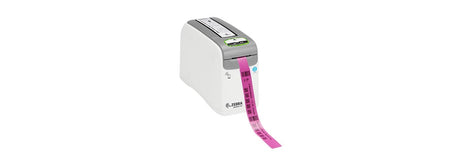

Patient wristbands are the foundation for a safer, more efficient process for delivering care. The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market - Zebra's Z-Band® wristbands. Offering comprehensive connectivity options, a disinfectant-ready UV-resistant housing and the powerful Print DNA suite of applications, utilities and developer tools, the ZD510-HC increases staff productivity and patient safety. Also capable of printing wristbands for amusement, water-park and entertainment applications, the ZD510-HC is the industry's easiest to use and most dependable wristband printing solution.
VIRTUALLY NO TRAINING REQUIRED

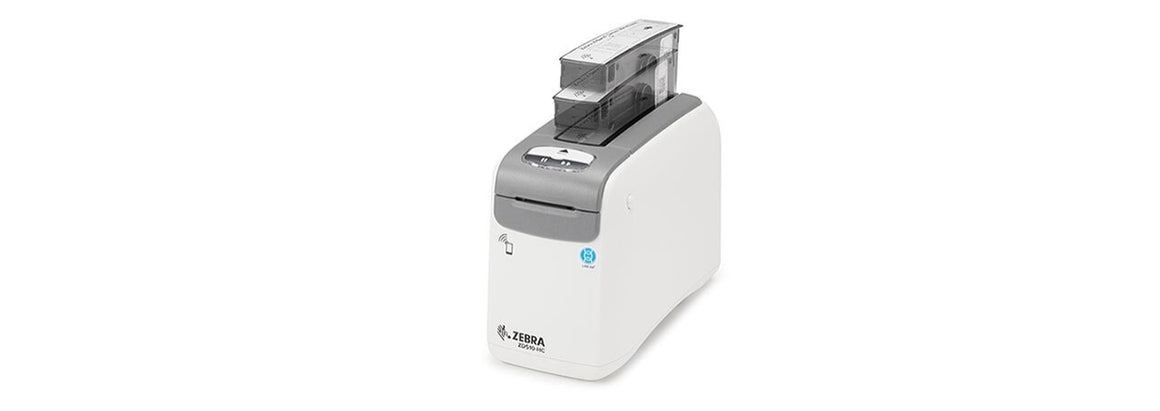

The ZD510-HC is the easiest wristband printer to use on the market. Just insert the wristband cartridge containing Zebra Z-Band wristbands and print. The printer instantly identifies the wristband size and automatically configures darkness and speed settings for optimal print quality.
EXCEPTIONAL QUALITY WITH ZEBRA Z-BANDS
Designed, produced and rigorously pre-tested, you get optimum image durability and scanning performance with Z-Band wristbands. They are resistant to hand sanitizers and are available in a variety of sizes, softness levels and colors.
EASY TO CLEAN
The ZD510-HC printer's disinfectant ready UV-resistant housing is designed to handle regular sanitizing with harsh chemicals and UV light, helping prevent the spread of germs and increase patient safety.
TRUST YOUR WRISTBAND PRINTING TO A SPECIALIST
The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market - Zebra's Z-Band® wristbands. Also capable of printing wristbands for amusement, water-park and entertainment applications, you get dependable wristband printing that increases patient safety and staff productivity.
| Printing |
|---|
| Minimum print length |
7.6 cm |
| Maximum printing width |
3.02 cm |
| Print speed |
102 mm/sec |
| Maximum resolution |
300 x 300 DPI |
| Colour |
No |
| Print technology |
Direct thermal |
| Ports & interfaces |
|---|
| Optional connectivity |
Wireless LAN |
| USB 2.0 ports quantity |
2 |
| USB port |
Yes |
| Bluetooth |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired & Wireless |
| Performance |
|---|
| Certification |
FCC Part 15, Subpart B, VCCI, RCMCE: EN 55032:2012 B, EN 55024:2010, EN61000-3-2, EN 61000-3-3, CISPR 32:2015CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTLIEC 60601-1:2012 |
| Built-in barcodes |
Logmars, Plessey, MSI, EAN14, AZTECCODE, CODABAR (NW-7), Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar Limited, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Page description languages |
ZBI, ZPL, ZPL II |
| Design |
|---|
| Display |
No |
| Built-in display |
No |
| Product colour |
White |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
4.4 - 40 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage relative humidity (H-H) |
5 - 85% |
| Operating relative humidity (H-H) |
20 - 85% |
| Weight & dimensions |
|---|
| Weight |
1.4 kg |
| Height |
178 mm |
| Depth |
242 mm |
| Width |
127 mm |
| Packaging data |
|---|
| Package type |
Box |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84433210 |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
