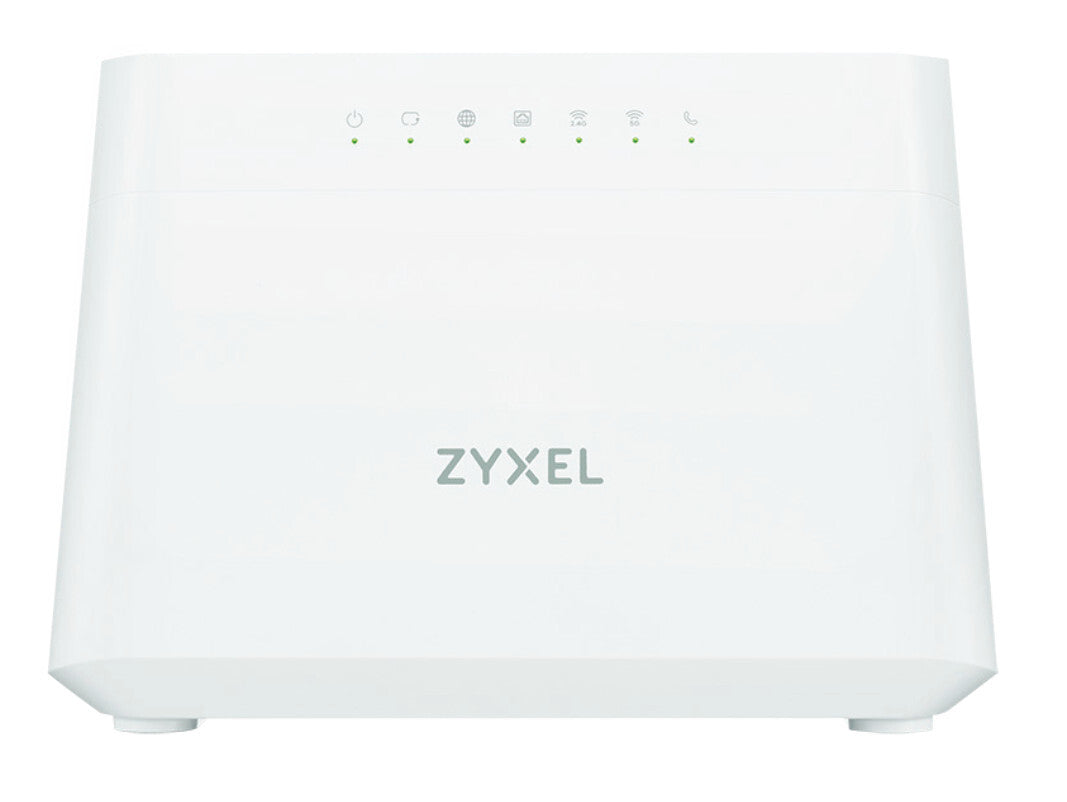

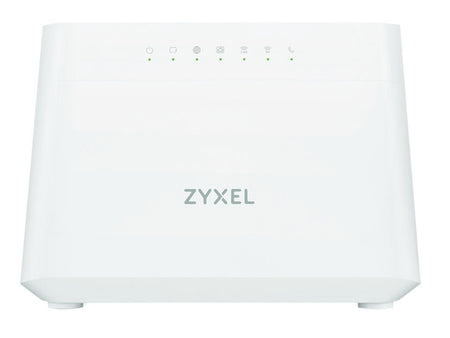

The Zyxel DX3301-T0/DX3300-T0/EX3301-T0/EX3300-T0 Series provides high-speed internet access with QoS support to meet the worldwide market demand for triple-play services. With the built-in 2x2 802.11ax WLAN function and Zyxel MPro Mesh TM Solutions, the Series provides seamless WiFi experience and superior, feature-rich WiFi connectivity for service providers to deliver high-performance internet access services.
WiFi 6 technology for superior lag-free performance
Supporting the latest WiFi 6 (11ax) standard, the Series offers speeds of up to 1200 Mbps* with 2x2 802.11ax and 574 Mbps* with 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the Series to deliver high speed internet for multi-streaming data access and optimal WiFi experience without dead zones.
| WAN connection |
|---|
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
Yes |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| Dynamic DNS (DDNS) |
Yes |
| Automatic channel selection |
Yes |
| Port forwarding |
Yes |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.1Q |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| 5G |
No |
| 3G |
No |
| 4G |
No |
| DSL features |
|---|
| VDSL2 |
Yes |
| VDSL |
Yes |
| ADSL2+ |
Yes |
| ADSL |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| MU-MIMO technology |
Yes |
| MIMO |
Yes |
| Intelligent Mesh technology |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Web-based management |
Yes |
| Security |
|---|
| Network address translation (NAT) |
Yes |
| MAC address filtering |
Yes |
| Firewall |
Yes |
| Protocols |
|---|
| Voice codecs |
G.711a, G.722, G.726, G.729 |
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| LED indicators |
LAN, Power, WAN, WLAN, WPS |
| Indication light |
Yes |
| Product colour |
White |
| Product type |
Tabletop router |
| Antenna |
|---|
| Antenna design |
Internal |
| Power |
|---|
| Power source type |
DC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
220 mm |
| Depth |
35 mm |
| Height |
153 mm |
| Weight |
387 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
